2DM2260
JMC 2DM2260 2-Phase Digital Stepper Drive 80-240VAC 8.0A
- Brand
- JMC Drivers and Motors
- English Name
- JMC 2DM2260 2-Phase Digital Stepper Drive 80-240VAC 8.0A
- Availability
- In Stock / Made to Order
| Parameter | Specification |
|---|---|
| Input Voltage | 80~240VAC (Note: Direct AC input) |
| Continuous Current | 8.0A |
| Max Pulse Frequency | 200K |
| Default Baud Rate | 57.6Kbps |
| Protection | Over-current: 12A ±10% (Peak) |
| Dimensions (mm) | 192 x 127 x 85 mm |
| Weight | Approx. 1500g (1.5kg) |
| Operating Temp | 0 ~ 70°C |
| Storage Temp | -20 ~ +80°C |
| Humidity | 40 ~ 90% RH |
| Cooling Method | Natural cooling or forced air cooling |
| Environment | Avoid dust, oil mist, and corrosive gases. Indoor use only. |
The JMC 2DM2260 is a high-power 2-phase digital stepper drive designed for heavy-duty precision motion control. With a wide AC input range of 80~240VAC and a continuous current of 8.0A, it delivers strong and stable performance for large CNC routers, engraving machines, and industrial automation systems. It features advanced current vector control, automatic motor parameter tuning, and built-in acceleration/deceleration for smooth, low-vibration, and low-heat operation.
Product Details

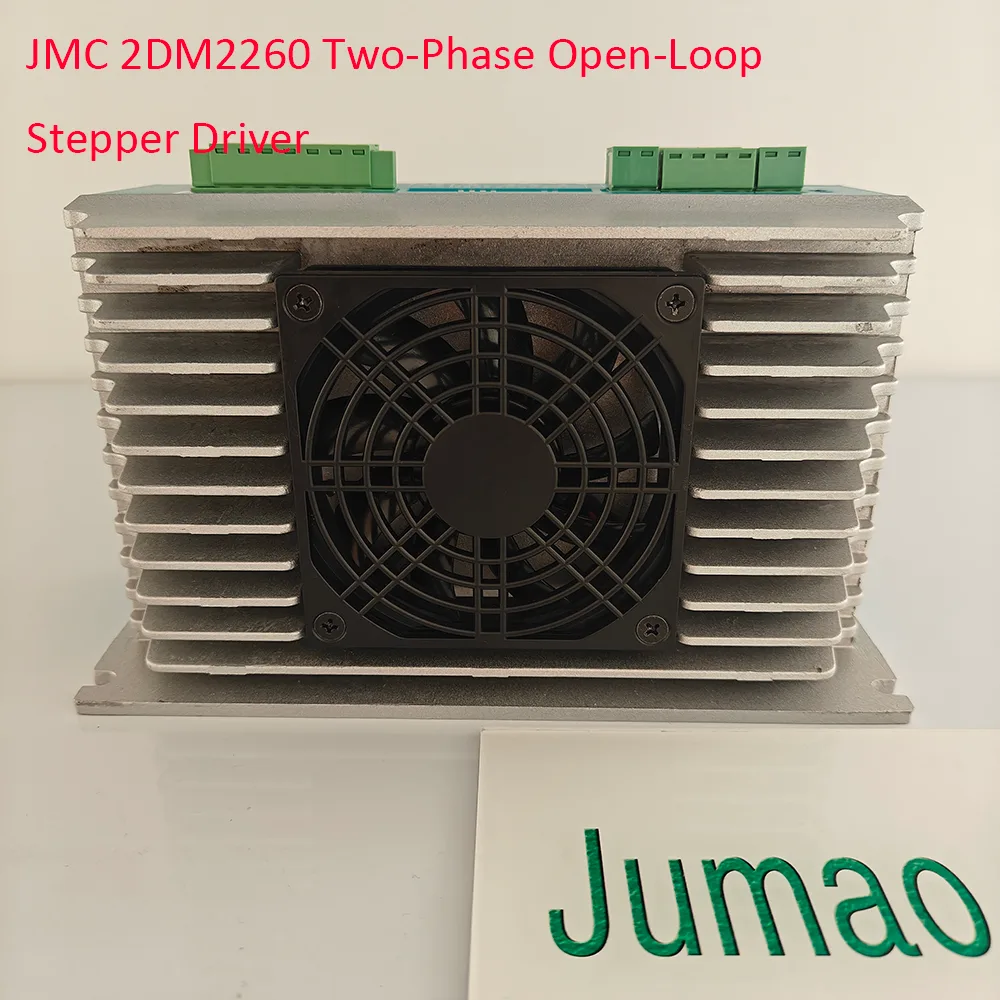

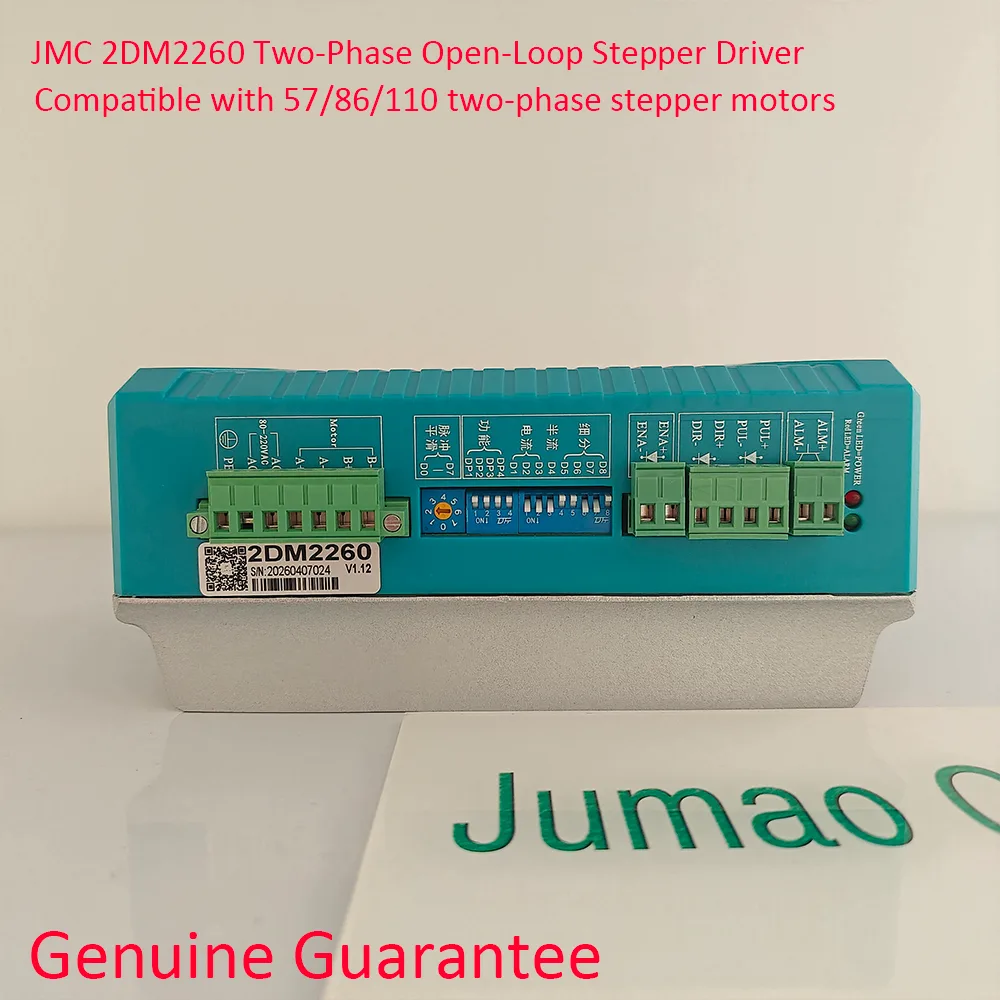

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.

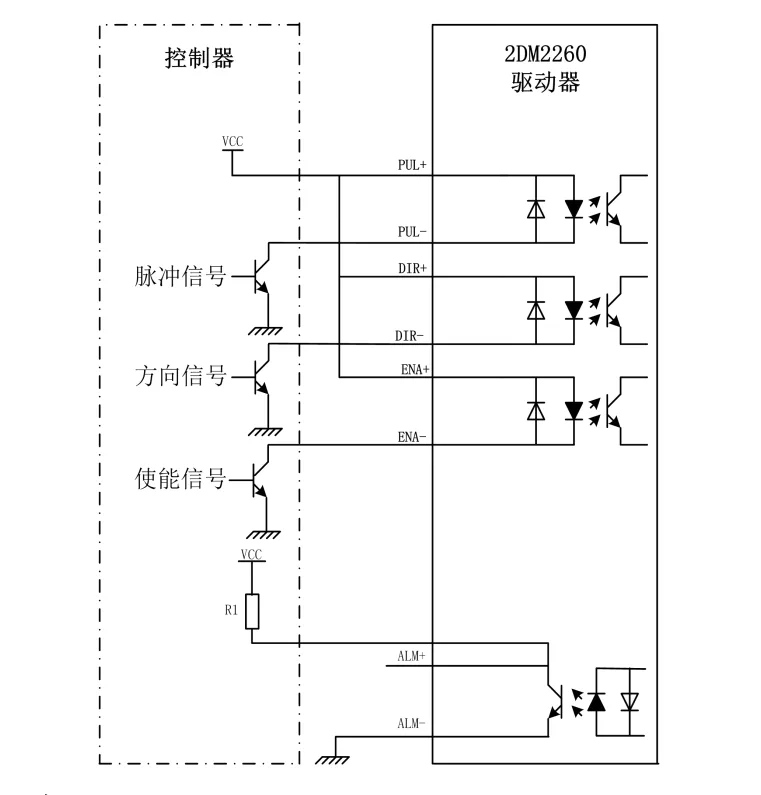

The JMC 2DM2260 is a high-power 2-phase digital stepper drive designed for heavy-duty precision motion control. With a wide AC input range of 80~240VAC and a continuous current of 8.0A, it delivers strong and stable performance for large CNC routers, engraving machines, and industrial automation systems. It features advanced current vector control, automatic motor parameter tuning, and built-in acceleration/deceleration for smooth, low-vibration, and low-heat operation. Key feature Auto-tuning & Self-adaptation: Parameters are automatically tuned to match the motor. High Subdivision: Built-in high micro-stepping for smooth, low-vibration, and low-heat operation. Torque Compensation: Mid and high-speed torque compensation for consistent performance. Current Vector Control: High current efficiency and precise control. Built-in Accel/Decel: Smooth start and stop control. Position Memory: Motor running position memory function. Signal Isolation: Differential optically isolated input signals, compatible with 5V~24V. Customizable Micro-stepping: User-defined subdivision settings. Protection: Over-current and over-voltage protection. Auto-detection: Flexible pulse edge counting selection. LED Indicators: Green LED for running status, Red LED for protection or stall alarm.
