CW-3000 Industrial Chiller
CW-3000 Series Industrial Chiller
- Brand
- MINGPIN
- English Name
- CW-3000 Series Industrial Chiller
- Availability
- In Stock / Made to Order

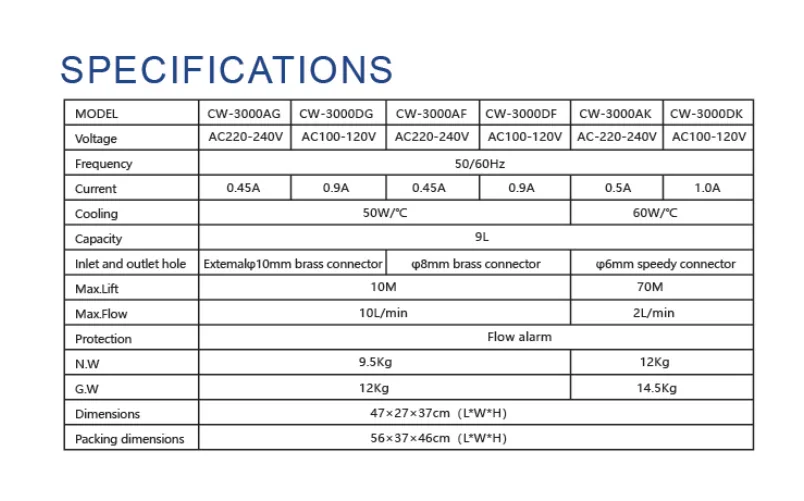

| Model | CW-3000AG / CW-3000DG / CW-3000DF / CW-3000AK / CW-3000DK |
|---|---|
| Voltage | AC220-240V (AG); AC100-120V (DG/DF/DK); AC-220-240V (AK) |
| Frequency | 50/60Hz |
| Current | 0.45A (AG); 0.9A (DG/DF); 0.5A (AK); 1.0A (DK) |
| Cooling | 50W/°C (AG/DG/DF); 60W/°C (AK/DK) |
| Capacity | 9L |
| Inlet and outlet hole | Externalφ10mm brass connector (AG/DG); φ8mm brass connector (DF); φ6mm speedy connector (AK/DK) |
| Max.Lift | 10M (AG/DG/DF); 70M (AK/DK) |
| Max.Flow | 10L/min (AG/DG/DF); 2L/min (AK/DK) |
| Protection | Flow alarm |
| N.W | 9.5Kg (AG/DG/DF); 12Kg (AK/DK) |
| G.W | 12Kg (AG/DG/DF); 14.5Kg (AK/DK) |
| Dimensions | 47×27×37cm (L*W*H) |
| Packing dimensions | 56×37×46cm (L*W*H) |
The MINGPIN CW-3000 is a compact and highly reliable industrial chiller designed for cooling CNC spindles, laser equipment, and other industrial machinery. It features a 9L stainless steel water tank and utilizes a high-efficiency radiator fan with smart temperature control to optimize energy use. The built-in intelligent flow alarm system (with dry-contact relay output) ensures safe, continuous operation by protecting your equipment from water shortages or overheating. Available in AC 220V or 110V versions, it offers a max lift of 10 meters and a max flow of 10L/min. With its durable white metal housing and user-friendly design, the CW-3000 is an ideal, maintenance-free cooling solution for demanding industrial environments.

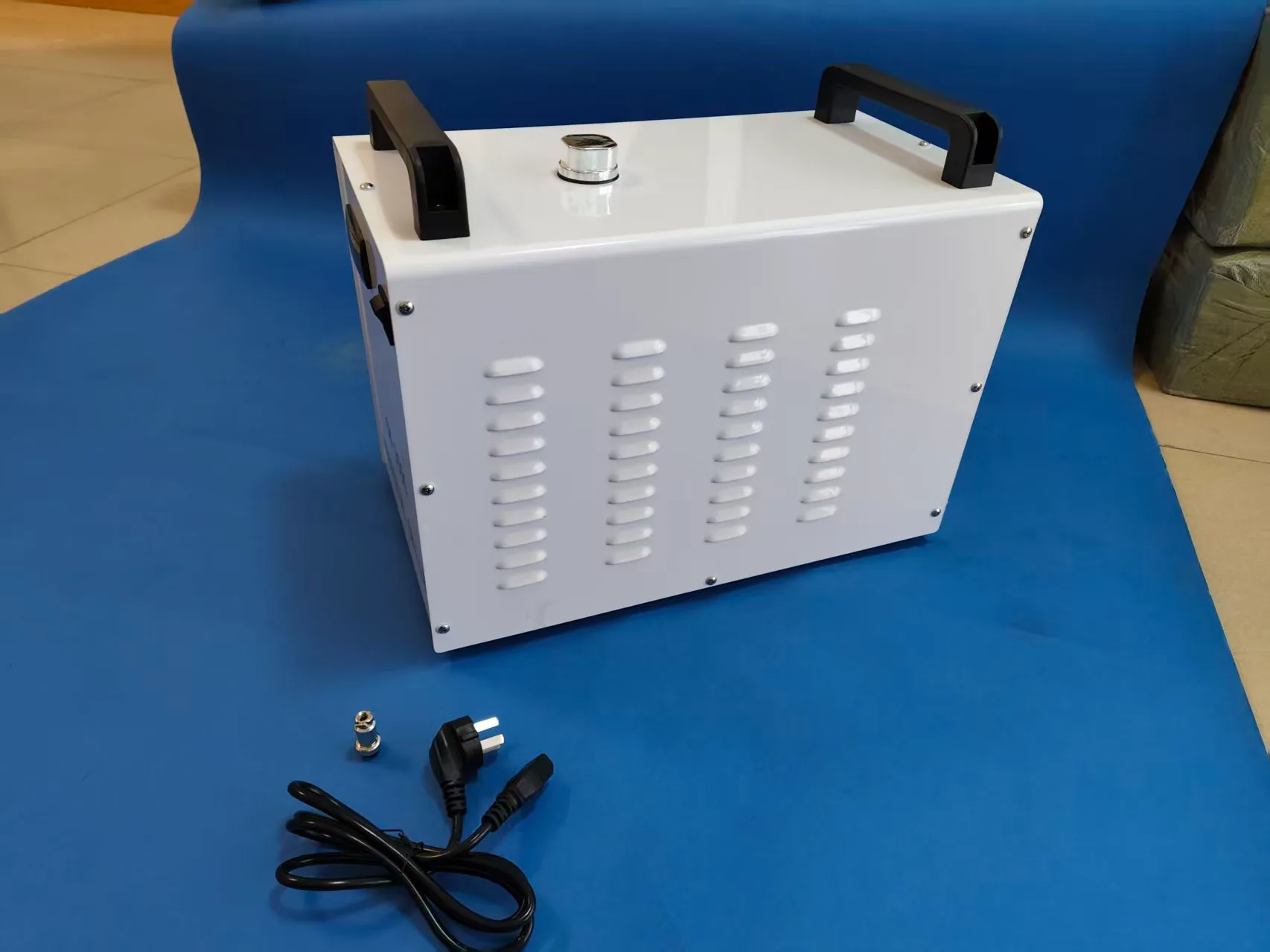

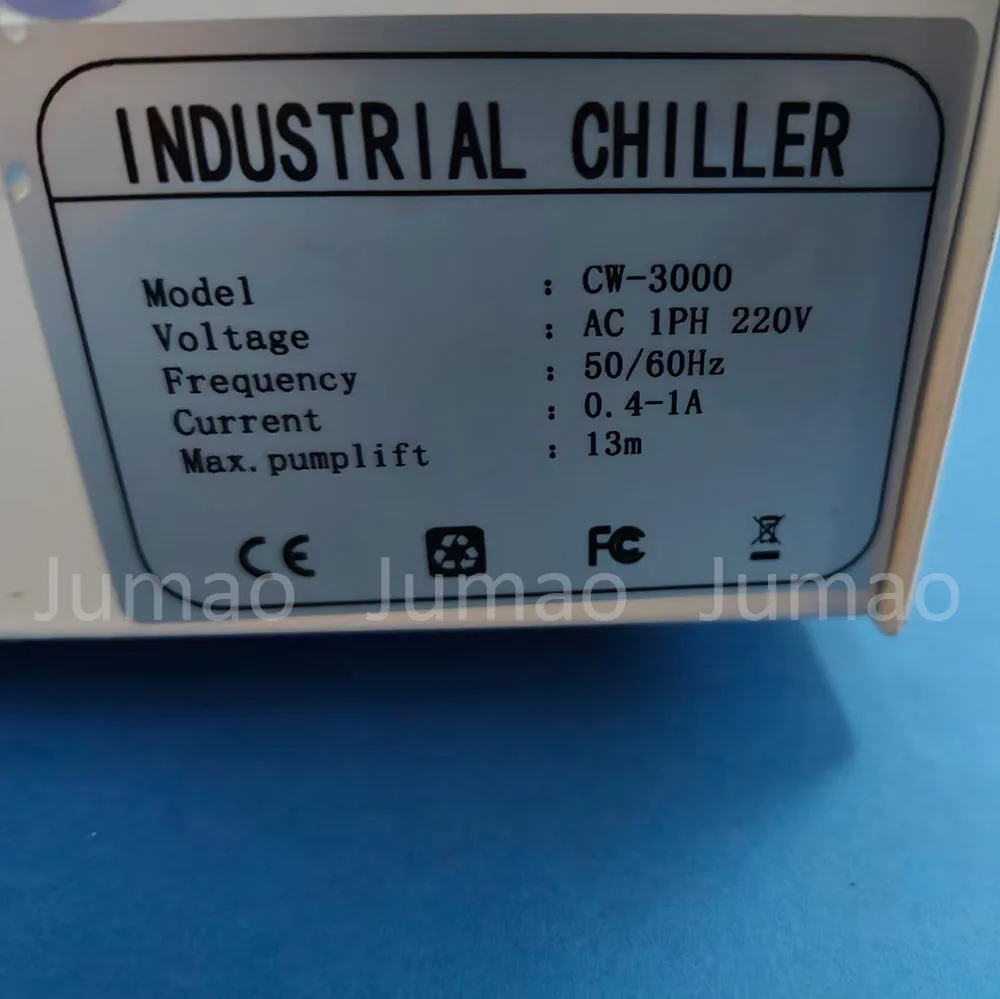

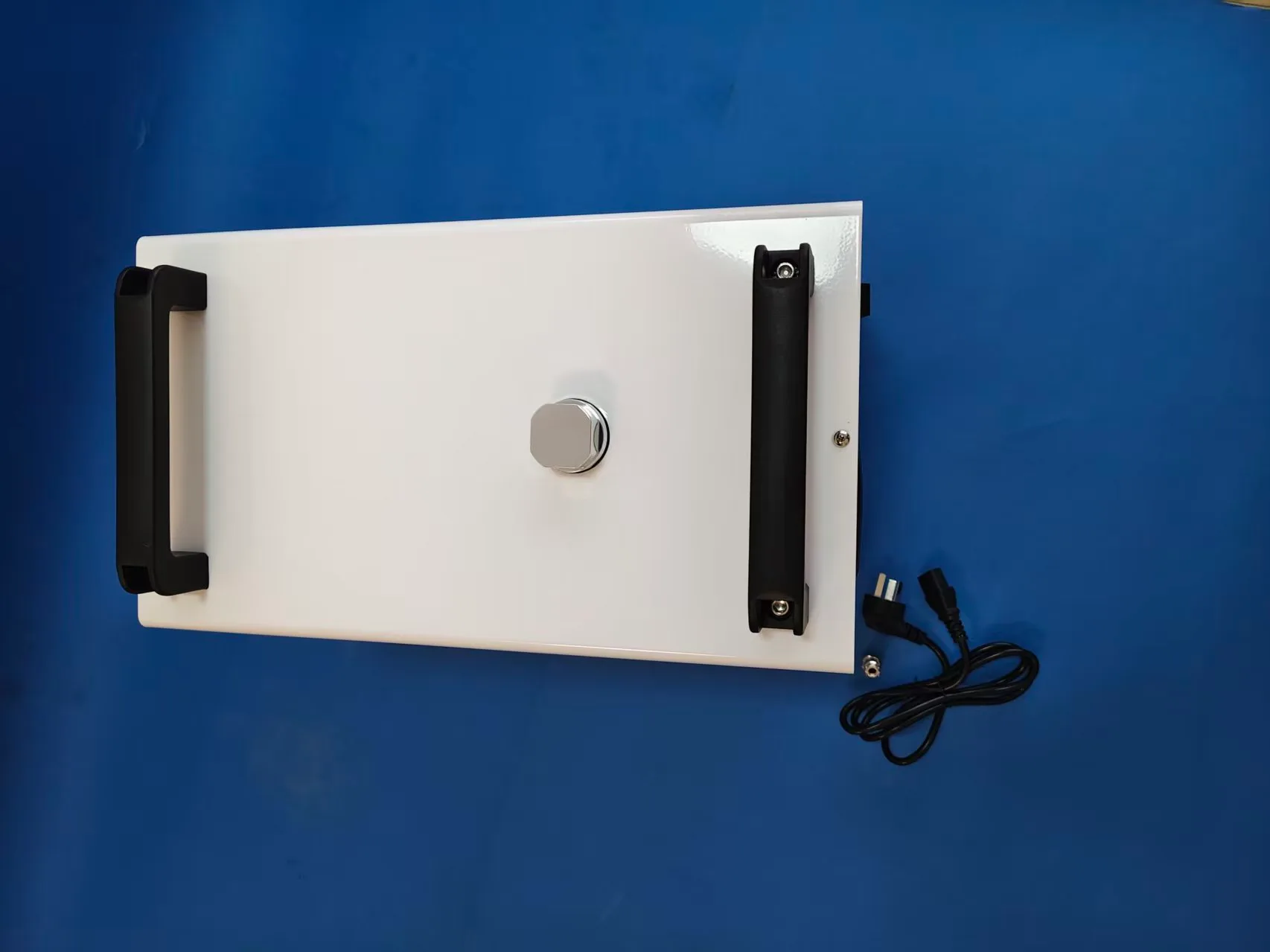

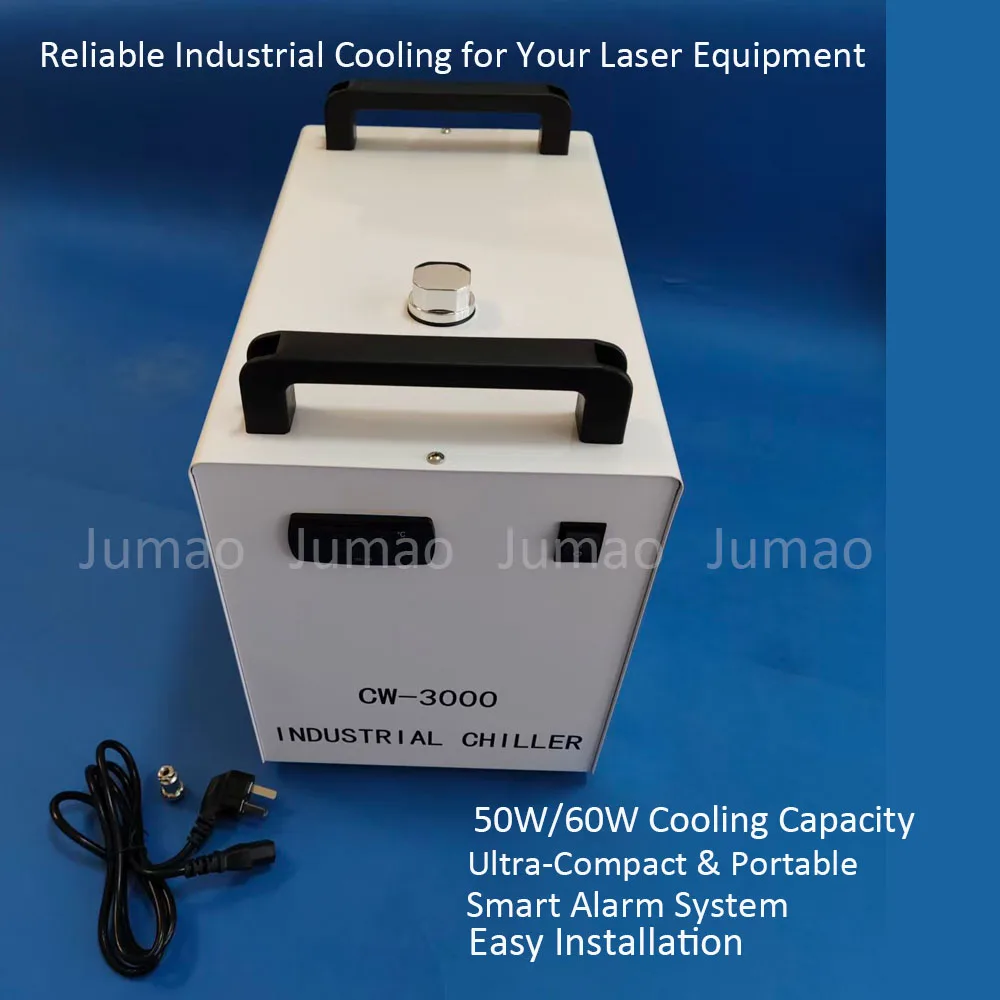

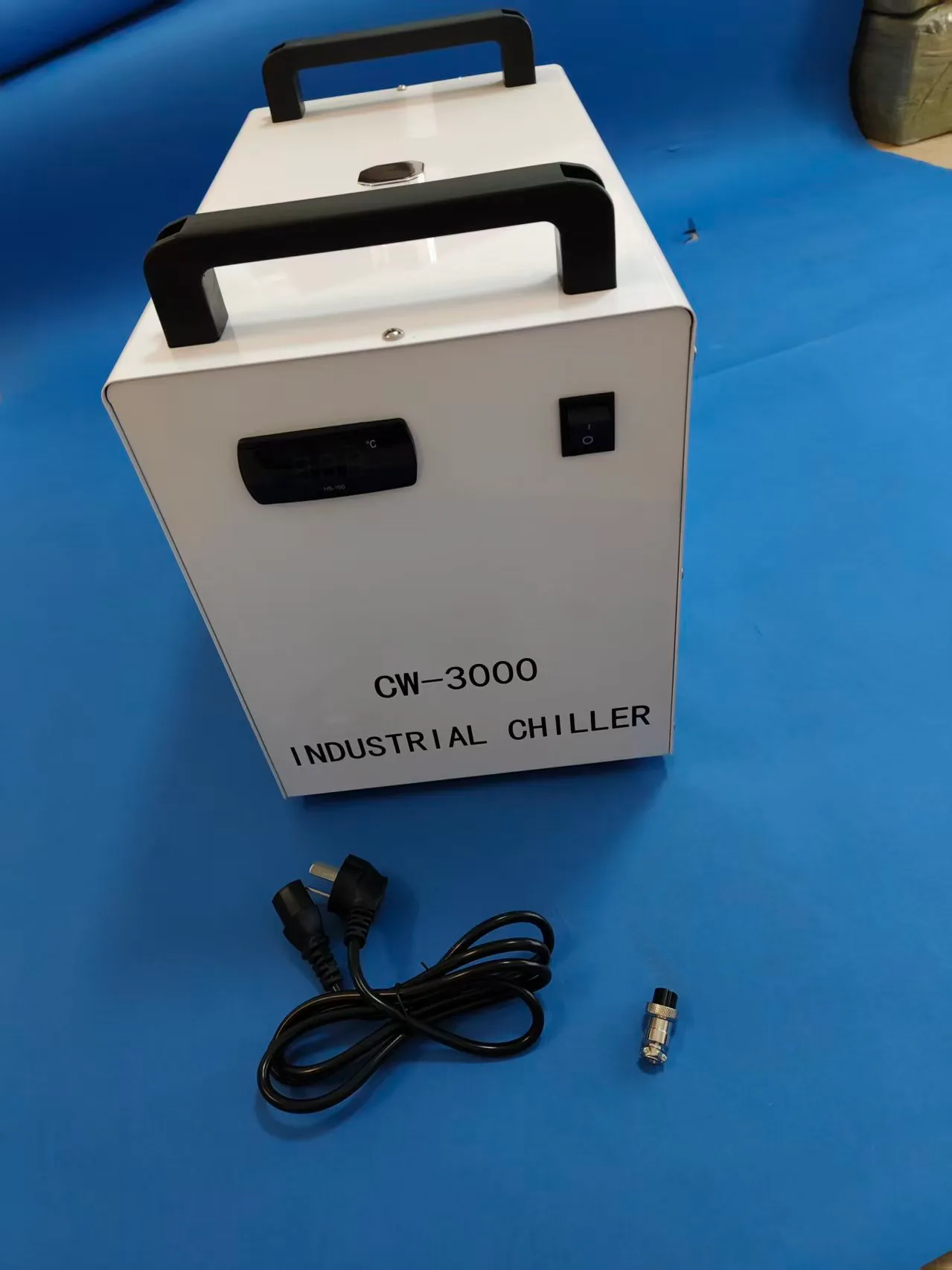

Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The MINGPIN CW-3000 is a compact and highly reliable industrial chiller designed for cooling CNC spindles, laser equipment, and other industrial machinery. It features a 9L stainless steel water tank and utilizes a high-efficiency radiator fan with smart temperature control to optimize energy use. The built-in intelligent flow alarm system (with dry-contact relay output) ensures safe, continuous operation by protecting your equipment from water shortages or overheating. Available in AC 220V or 110V versions, it offers a max lift of 10 meters and a max flow of 10L/min. With its durable white metal housing and user-friendly design, the CW-3000 is an ideal, maintenance-free cooling solution for demanding industrial environments.
