450A Series
CW stepper motor 450A
- Brand
- Chuangwei Stepper Motors
- English Name
- CW stepper motor 450A
- Availability
- In Stock / Made to Order

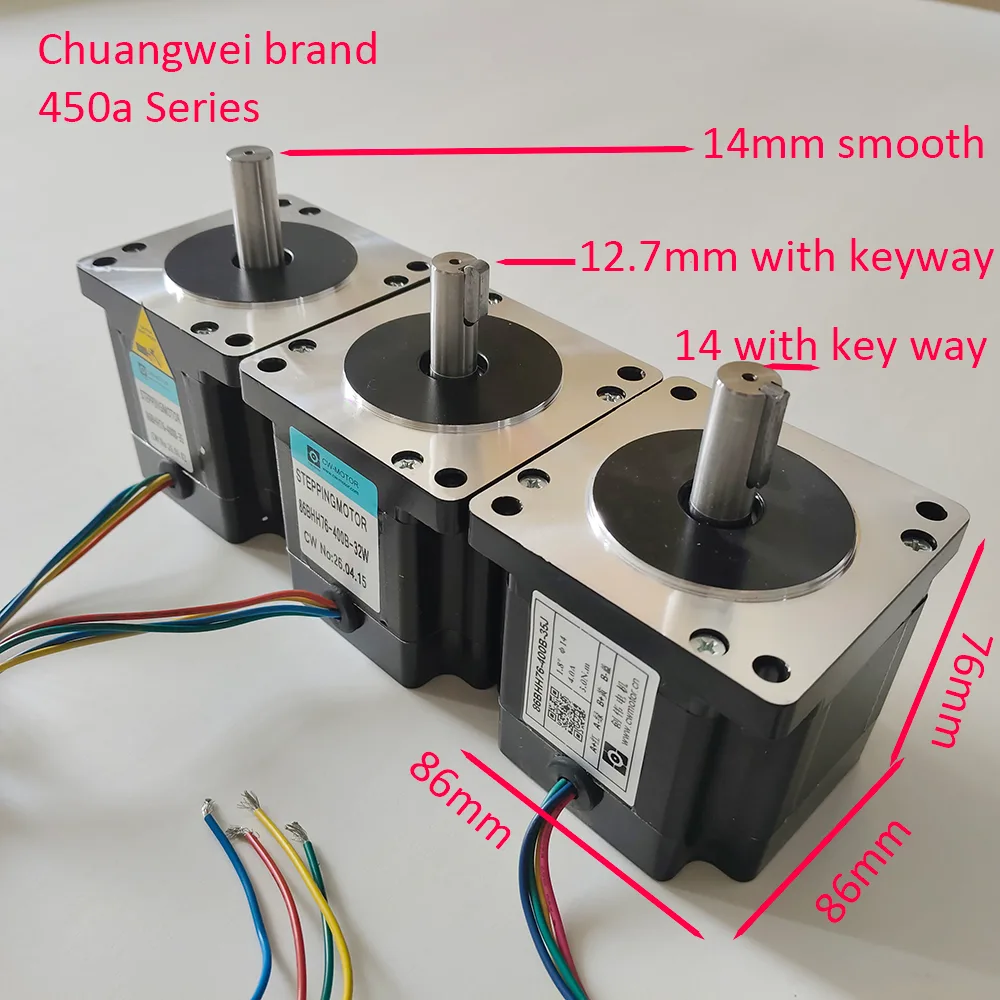

The CW-MOTOR 86BYGH450A is a 2-phase hybrid stepper motor from the 86BYGH series (NEMA 34 frame). It delivers a holding torque of 30 kg·cm with a 1.8° step angle and 4.0 A rated current. Available with either a 12.7 mm or 14 mm shaft, it is commonly paired with DMA860H or similar drivers for CNC routers and engraving machines. The low phase resistance of 0.42 Ω ensures efficient current response, while the B-class insulation supports reliable operation in ambient temperatures up to 50°C.
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The CW-MOTOR 86BYGH450A is a 2-phase hybrid stepper motor from the 86BYGH series (NEMA 34 frame). It delivers a holding torque of 30 kg·cm with a 1.8° step angle and 4.0 A rated current. Available with either a 12.7 mm or 14 mm shaft, it is commonly paired with DMA860H or similar drivers for CNC routers and engraving machines. The low phase resistance of 0.42 Ω ensures efficient current response, while the B-class insulation supports reliable operation in ambient temperatures up to 50°C. Application Currently, Changwei stepper motor products are widely used in various automation equipment, including: CNC Engraving Machines (CNC Routers) Laser Cutting / Engraving Machines CNC Machine Tools Medical Equipment Electronic Processing Equipment Textile and Garment Machinery General Industrial Automation
