86BHH114-504D-35C
CW stepper motor 86BHH114-504D-35C
- Brand
- Chuangwei Stepper Motors
- English Name
- CW stepper motor 86BHH114-504D-35C
- Availability
- In Stock / Made to Order
The CW-MOTOR 86BHH114-504D-35C is a 2-phase hybrid stepper motor from Chuangwei's 86BHH series, featuring a NEMA 34 frame with a 114mm body length. It delivers a holding torque of 6.8 N·m with a 1.8° step angle and 5.0A rated current, making it suitable for heavy-duty CNC routers, laser cutters, and plasma cutting equipment .
Product Details

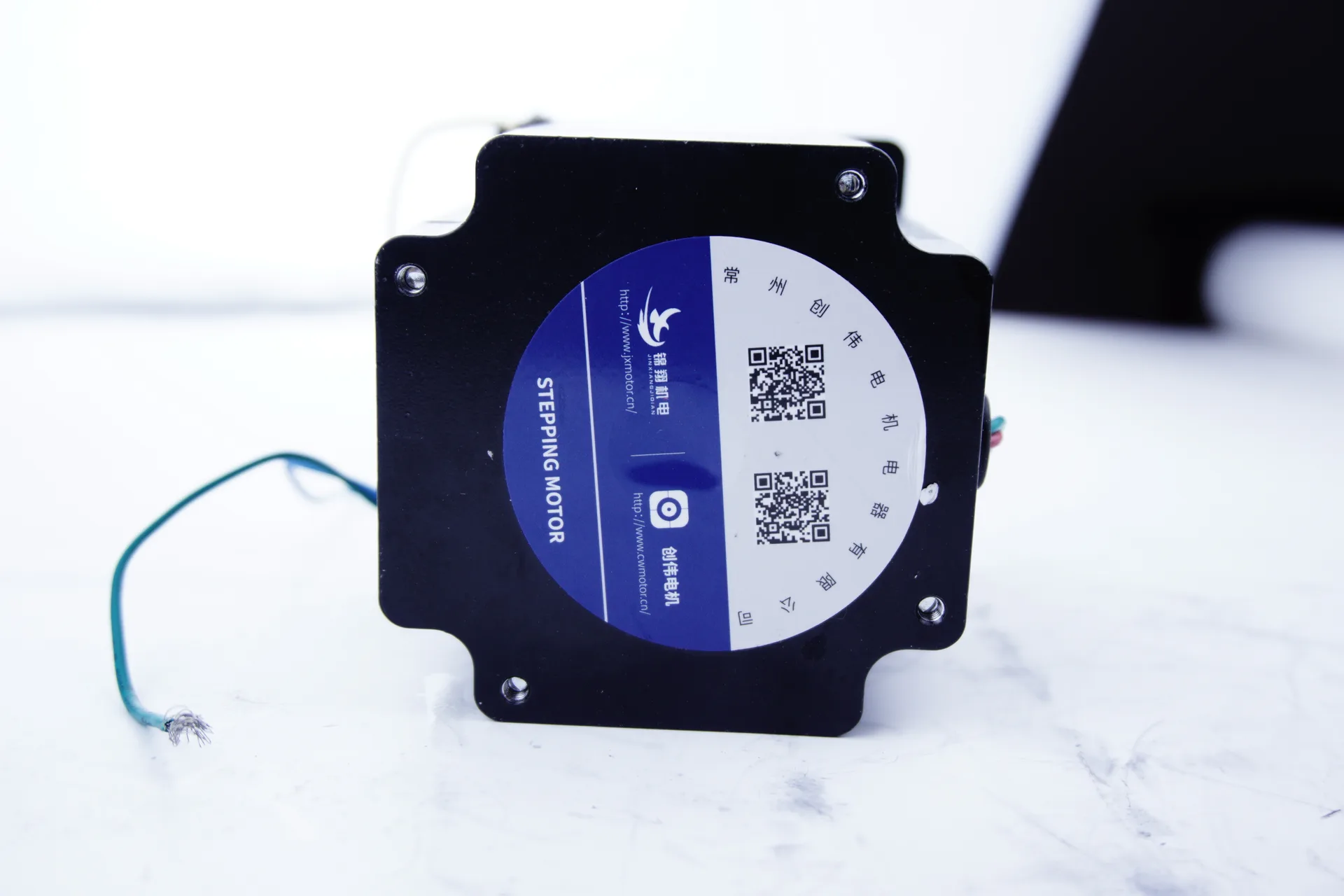

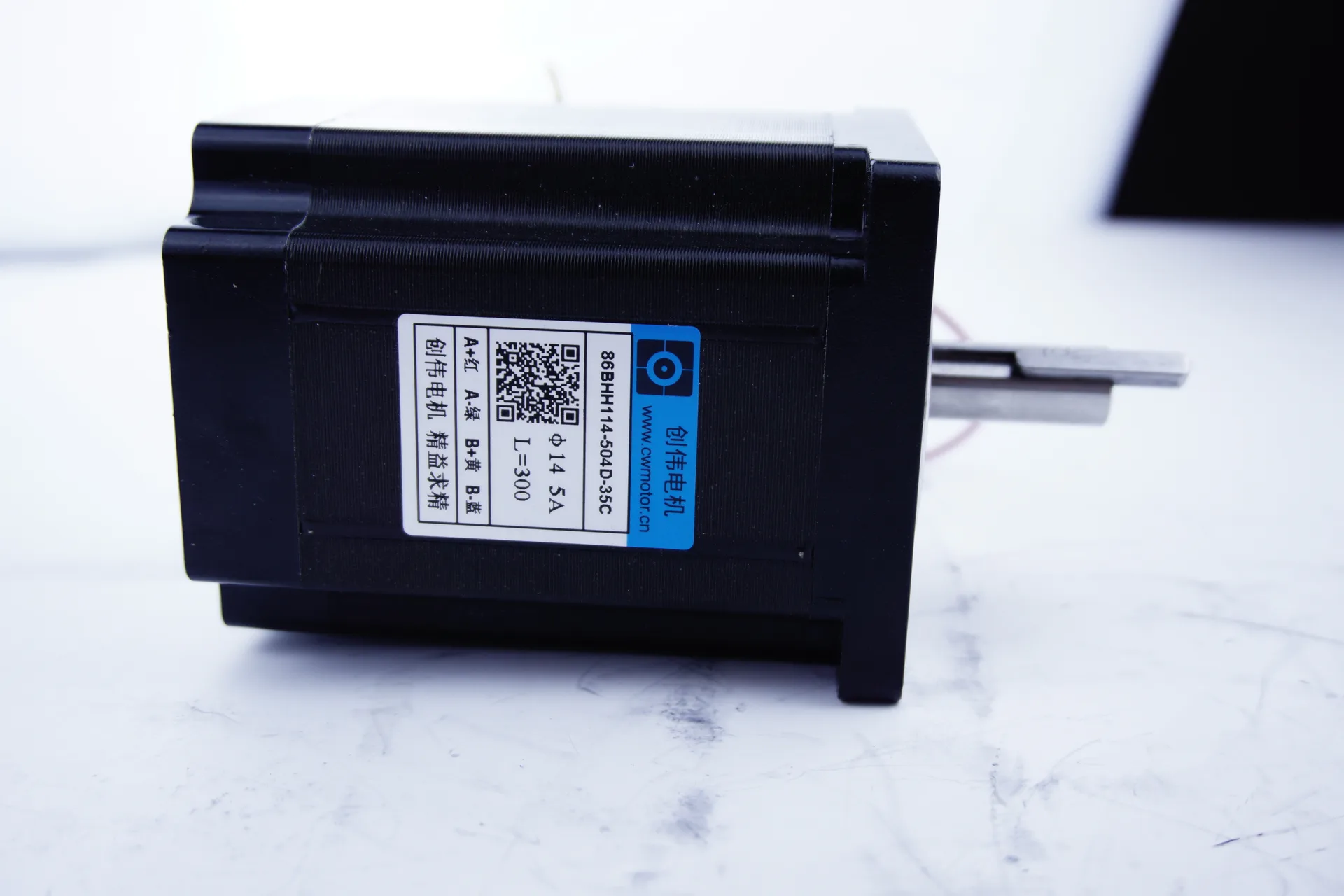

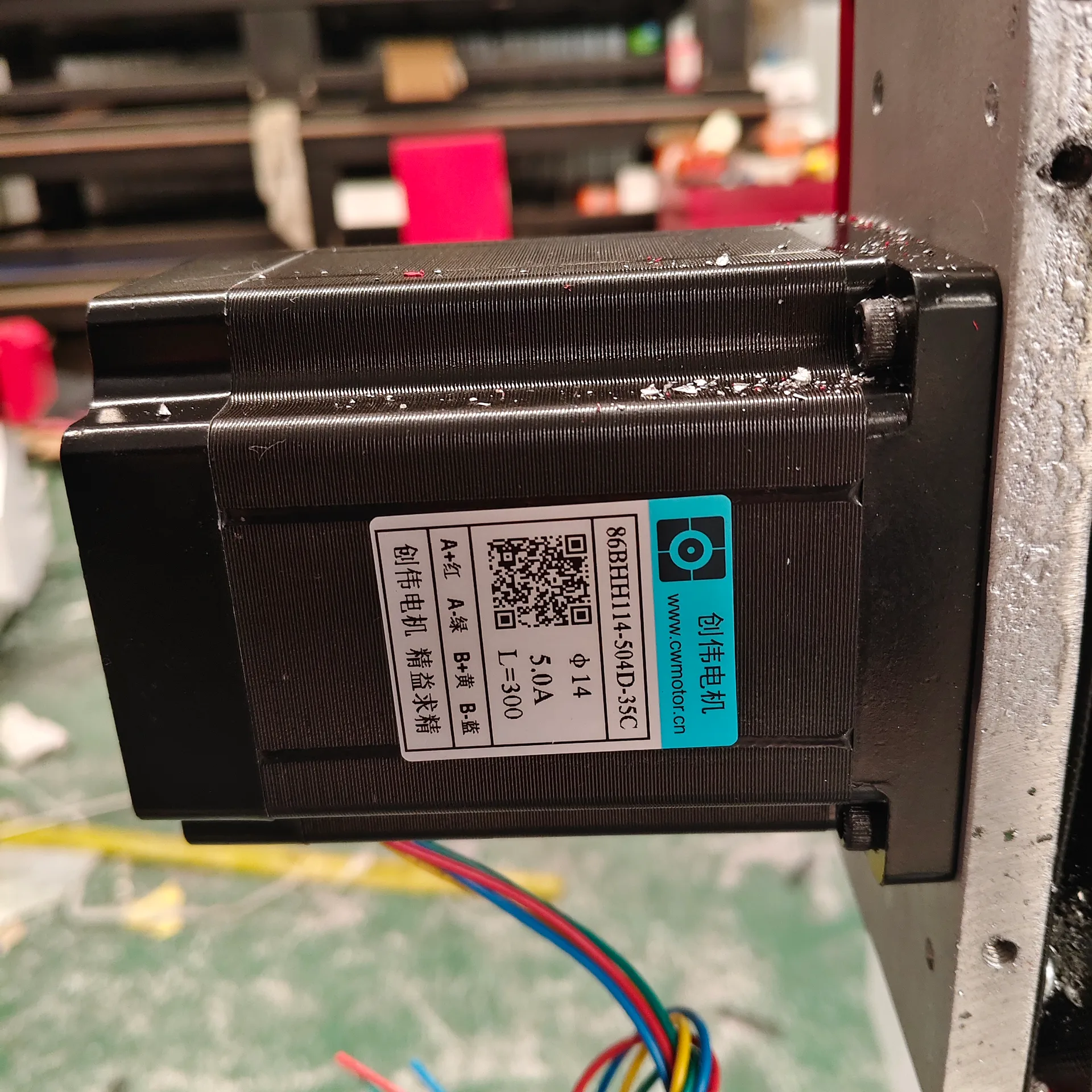

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.

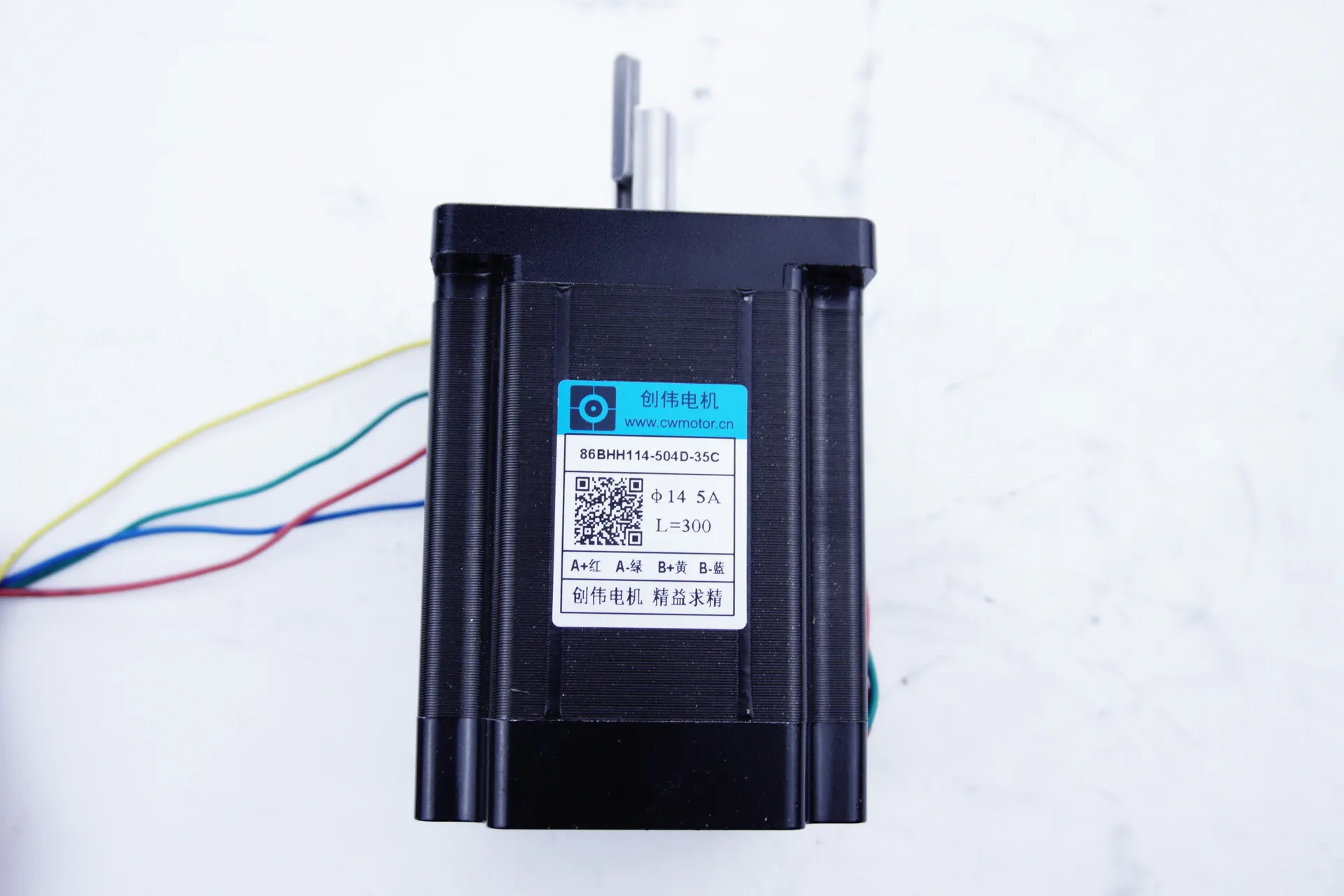

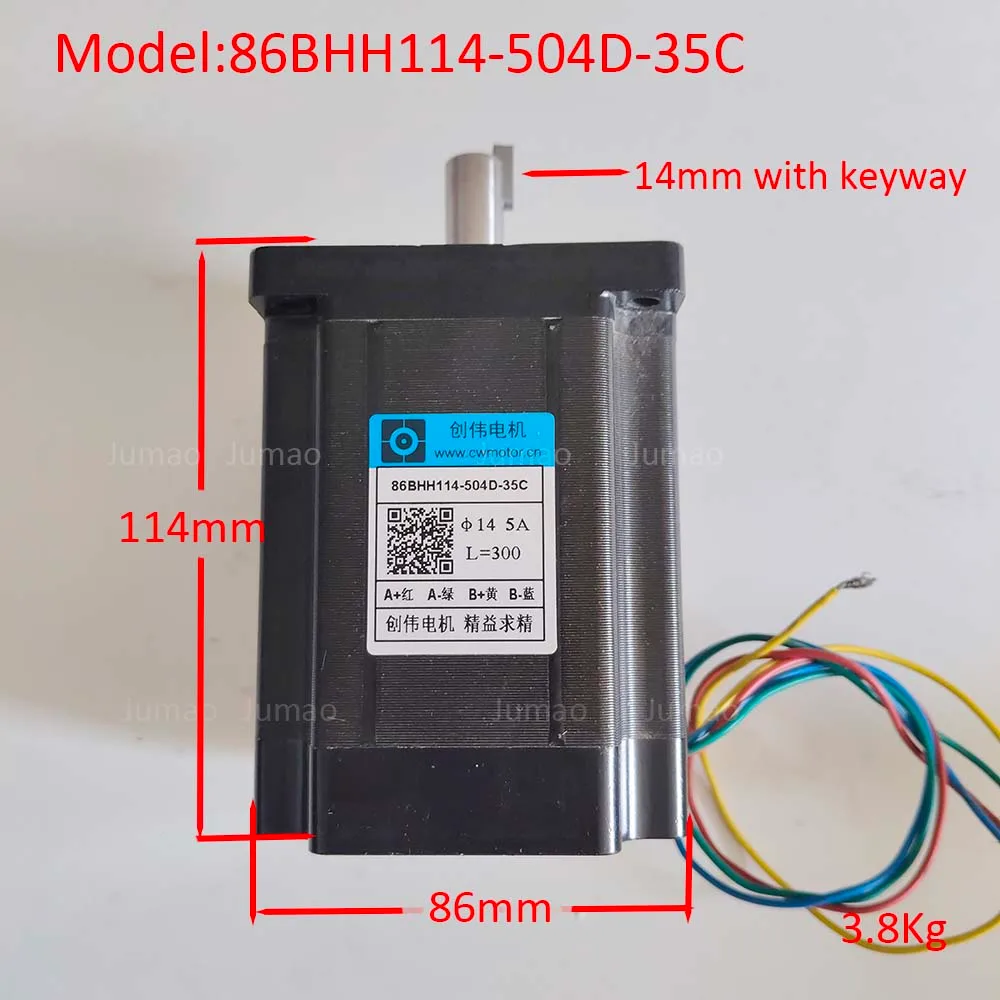

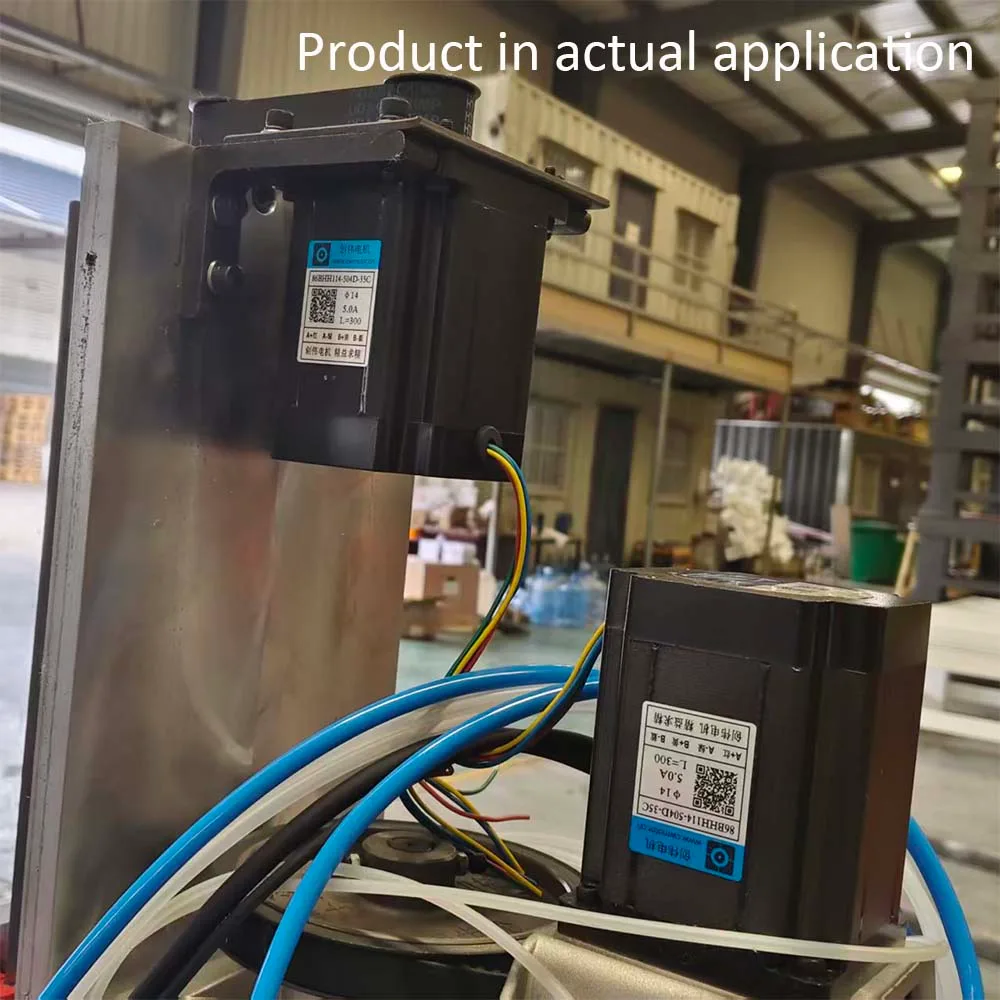

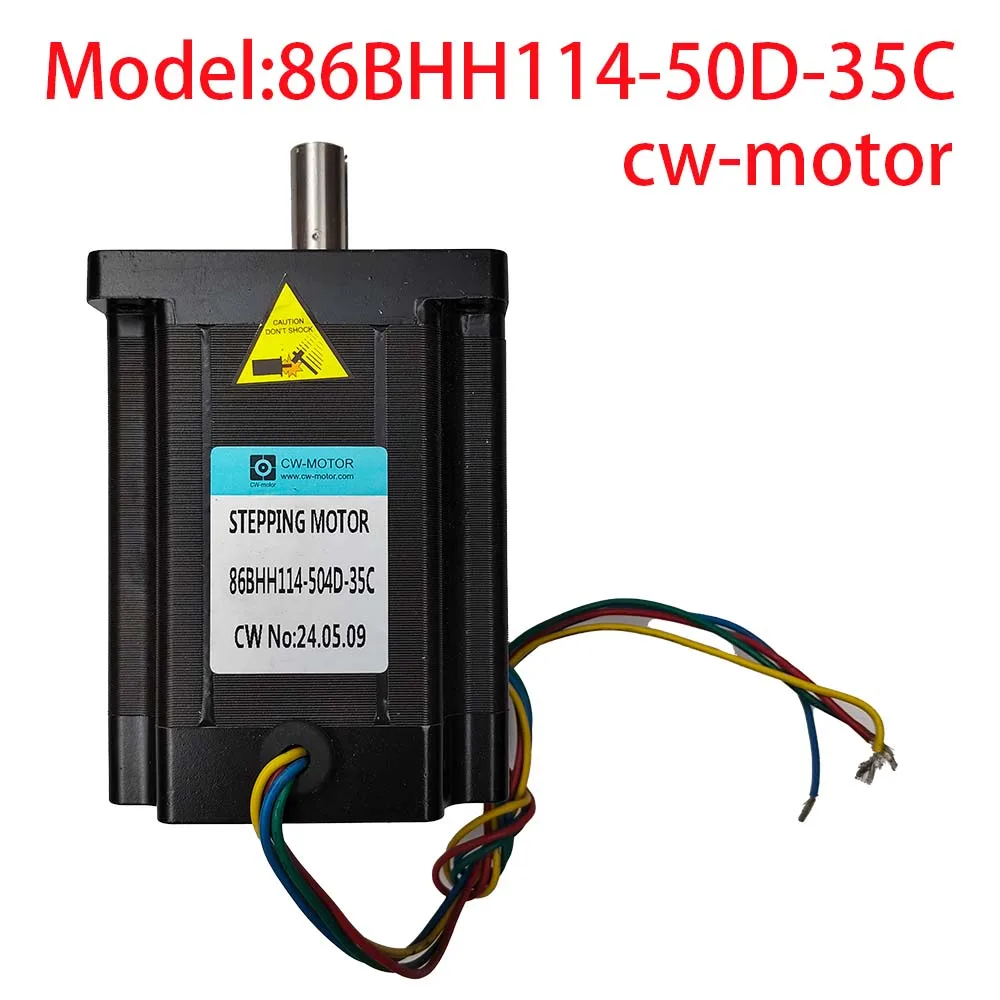

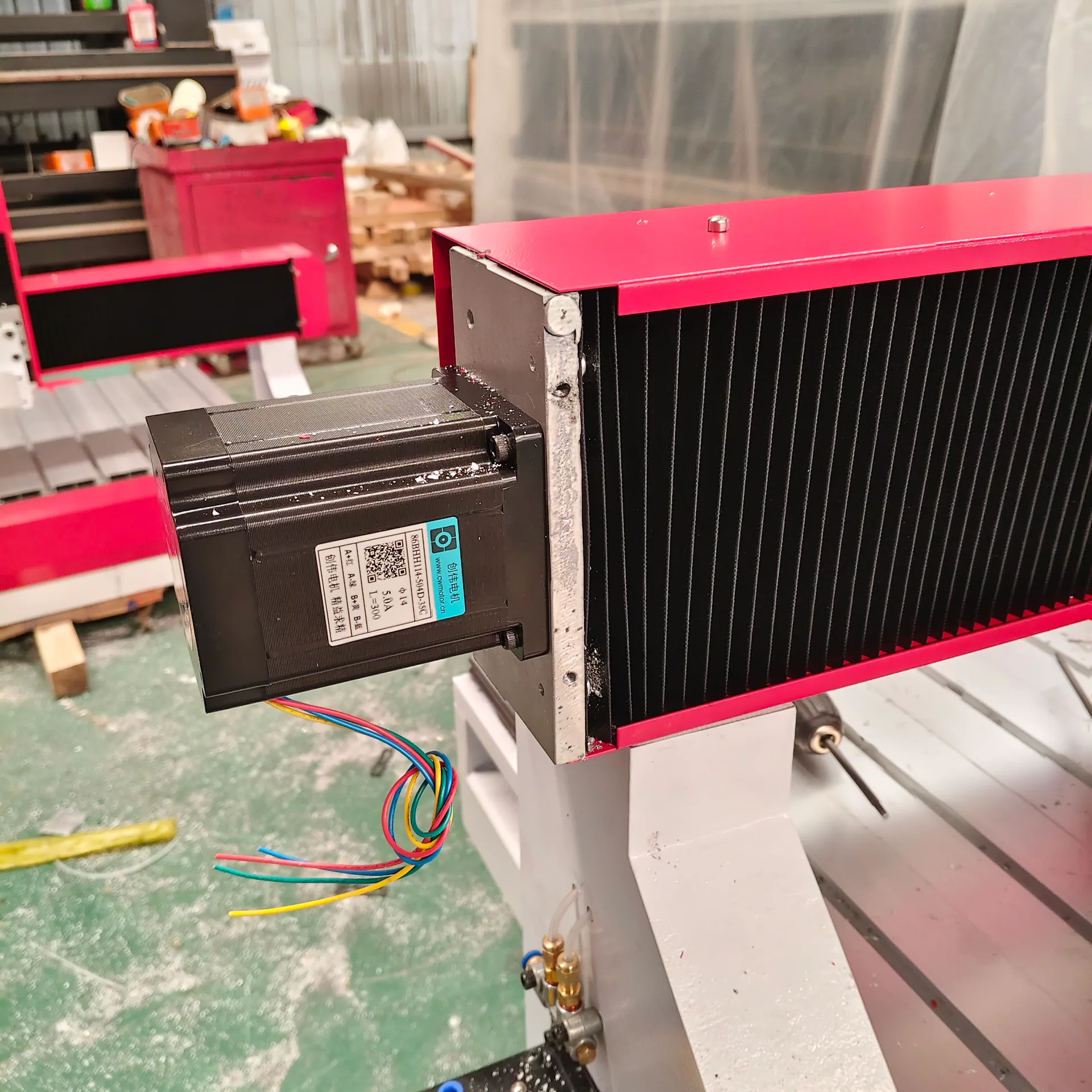

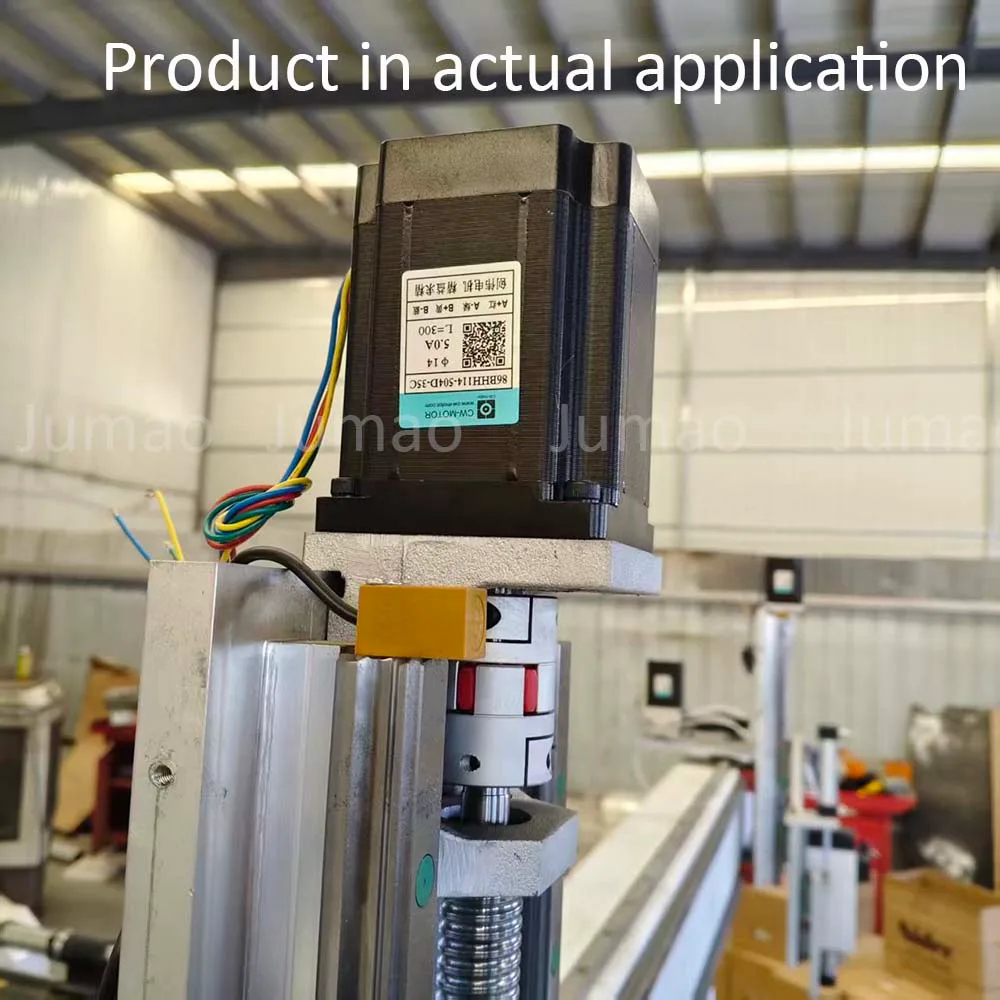

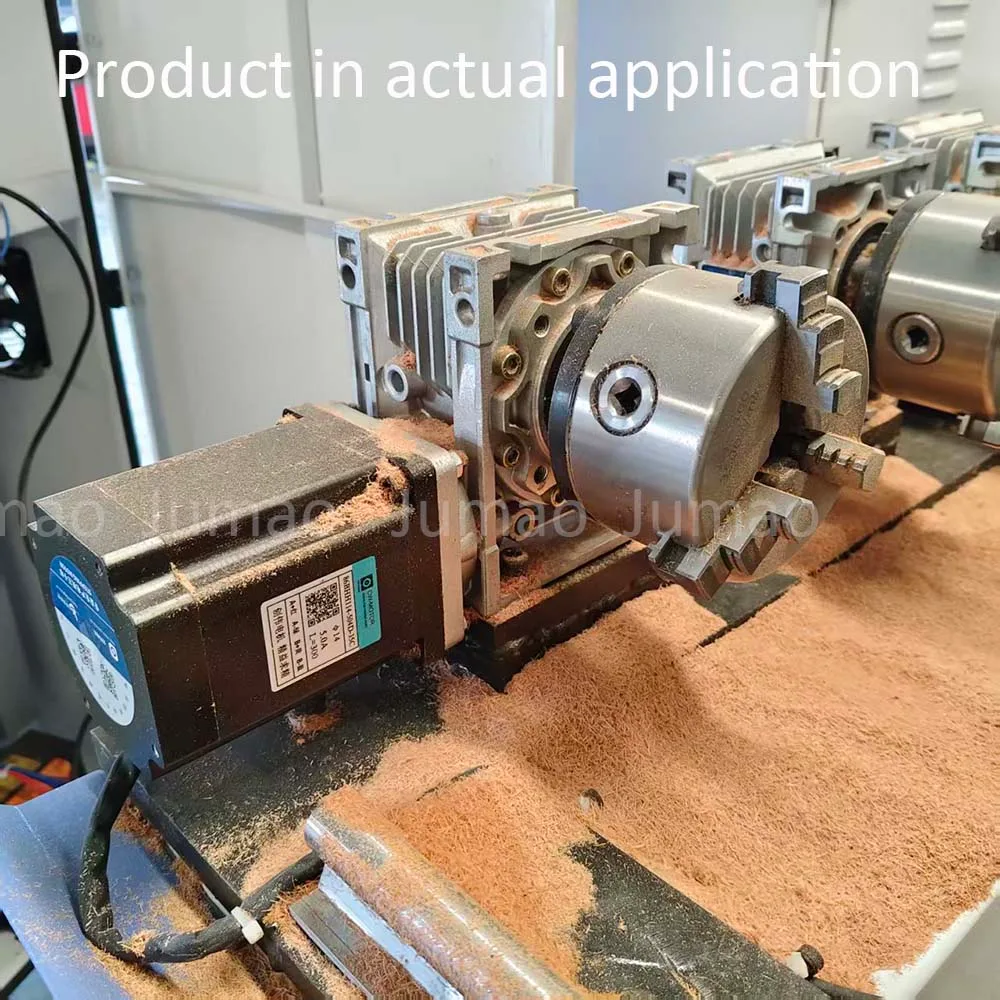

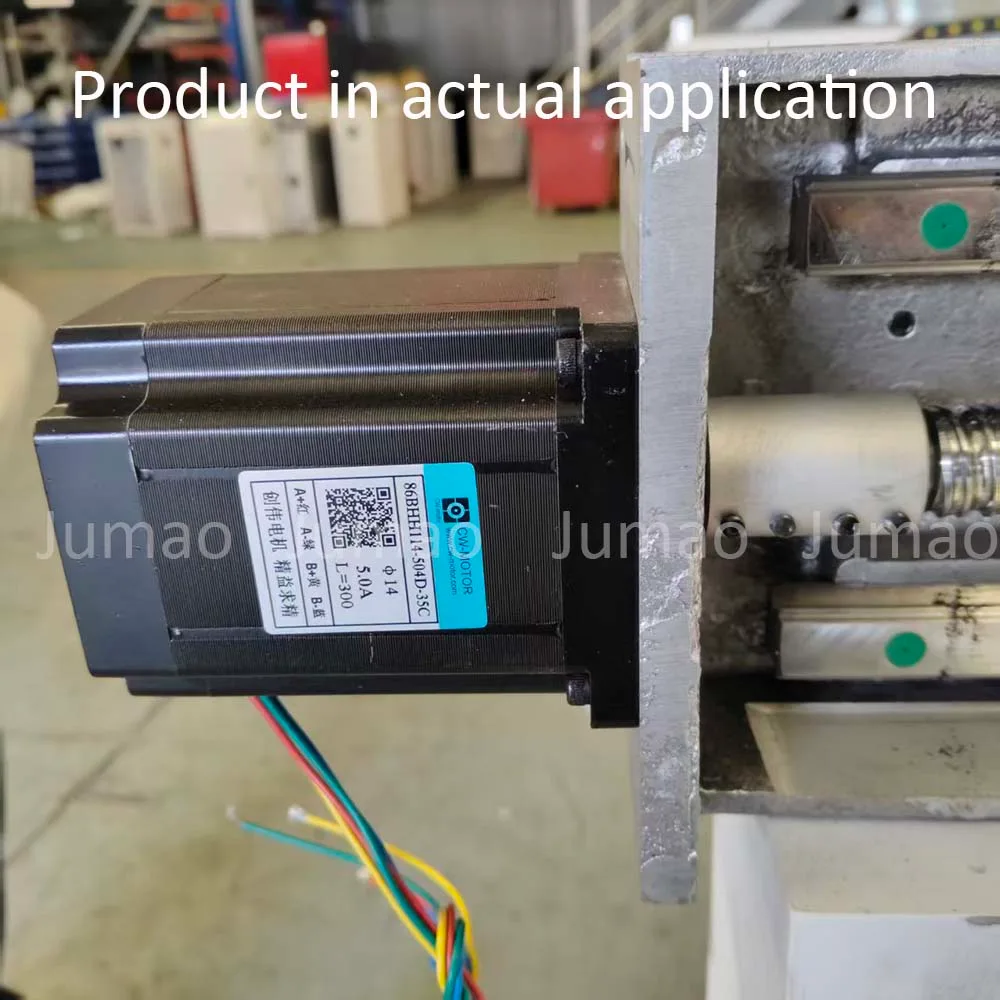

The CW-MOTOR 86BHH114-504D-35C is a 2-phase hybrid stepper motor from Chuangwei's 86BHH series, featuring a NEMA 34 frame with a 114mm body length. It delivers a holding torque of 6.8 N·m with a 1.8° step angle and 5.0A rated current, making it suitable for heavy-duty CNC routers, laser cutters, and plasma cutting equipment . This model features a 14mm shaft with keyway and 5-wire connection (indicated by the "D" suffix in the naming rule), providing flexibility for different wiring configurations . The phase resistance of 0.65Ω and phase inductance of 3.6mH are optimized for smooth operation with minimal vibration, and the rotor inertia of 3550 g·cm² ensures stable performance during rapid acceleration and deceleration . Application Currently, Changwei stepper motor products are widely used in various automation equipment, including: CNC Engraving Machines (CNC Routers) Laser Cutting / Engraving Machines CNC Machine Tools Medical Equipment Electronic Processing Equipment Textile and Garment Machinery General Industrial Automation
