DSP A15C/E

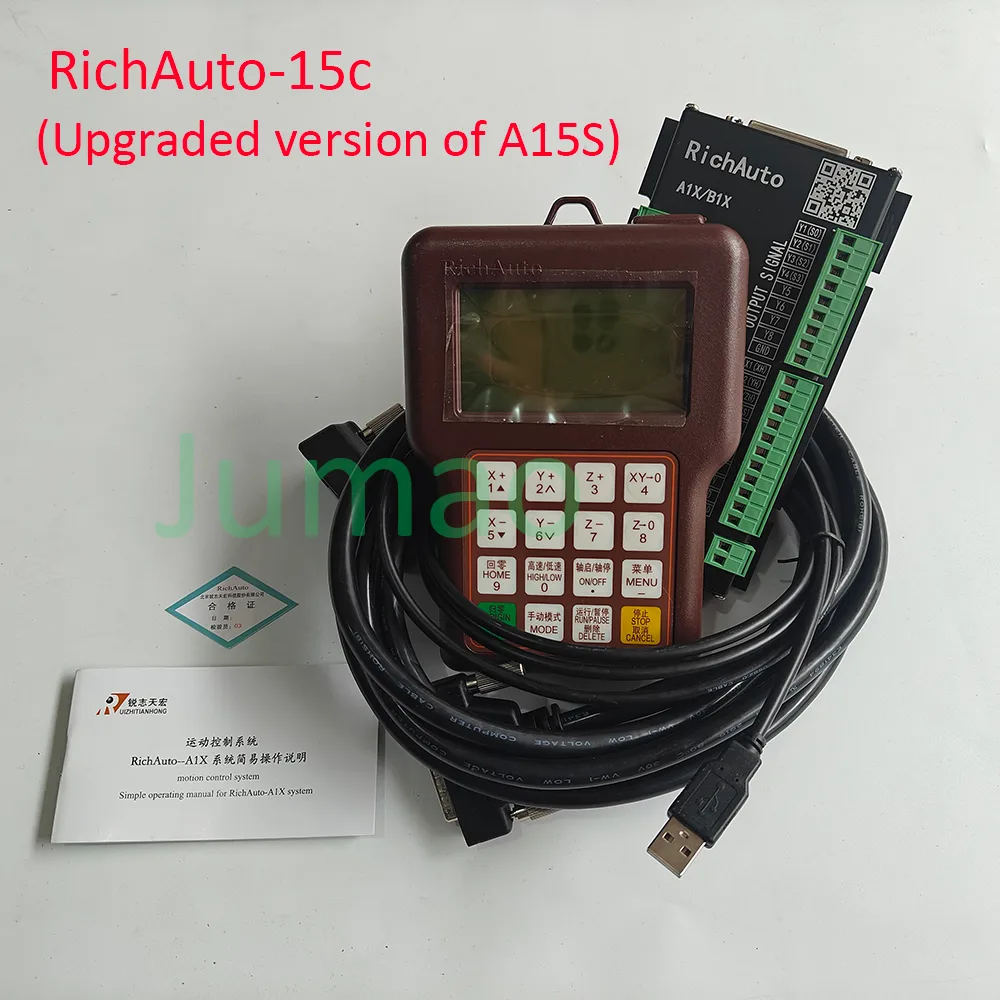

RichAuto DSP A15C a15e 3-Axis Multi-Spindle CNC Controller – Cylinder Multi-Head Motion Control System for CNC Router
- Brand
- RichAuto
- English Name
- RichAuto DSP A15C a15e 3-Axis Multi-Spindle CNC Controller – Cylinder Multi-Head Motion Control System for CNC Router
- Availability
- In Stock / Made to Order
| Product Model | RichAuto B18E |
|---|---|
| CPU | DSP |
| Number of Linkage Axes | 3–4 axes |
| Built-in Memory | 512 MB |
| Display Screen | 128×64 Monochrome LCD |
| Communication Port | USB Disk / USB Cable |
| Drive System | Stepper / Servo Motor |
| Minimum Input Unit | 0.001 mm |
| Maximum Pulse Frequency | 1 MHz |
| Power Supply | DC 24V, 3A |
| Power Failure Protection | Supported |
| Breakpoint Processing | 8 breakpoints |
| Soft / Hard Limit | Supported |
| Control Signal | 5V Common Anode |
| Interpolation Method | Line, Arc, Spline |
| Manual Mode | Continuous, Step, Distance |
| Password Protection | Supported |
| Language | English (B18E version) |
RichAuto A15E Multi-Spindle DSP Controller – English Version
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.

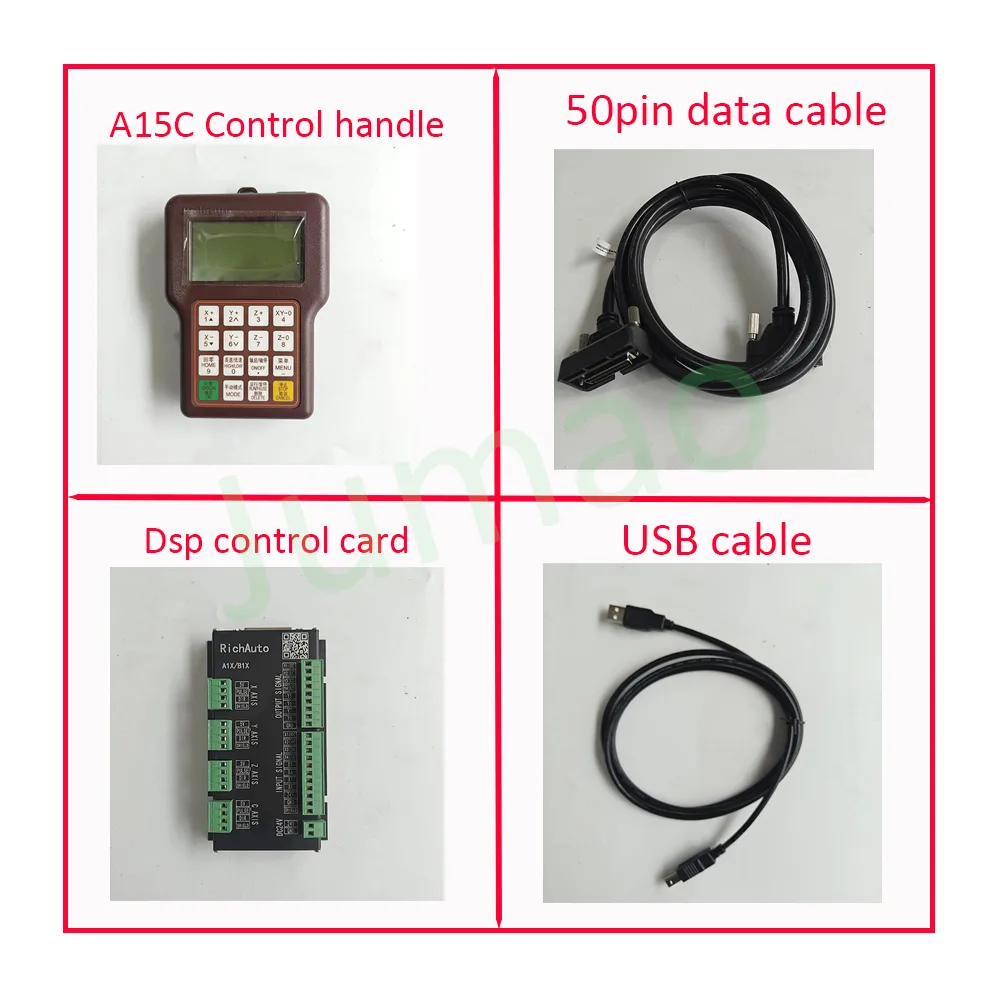

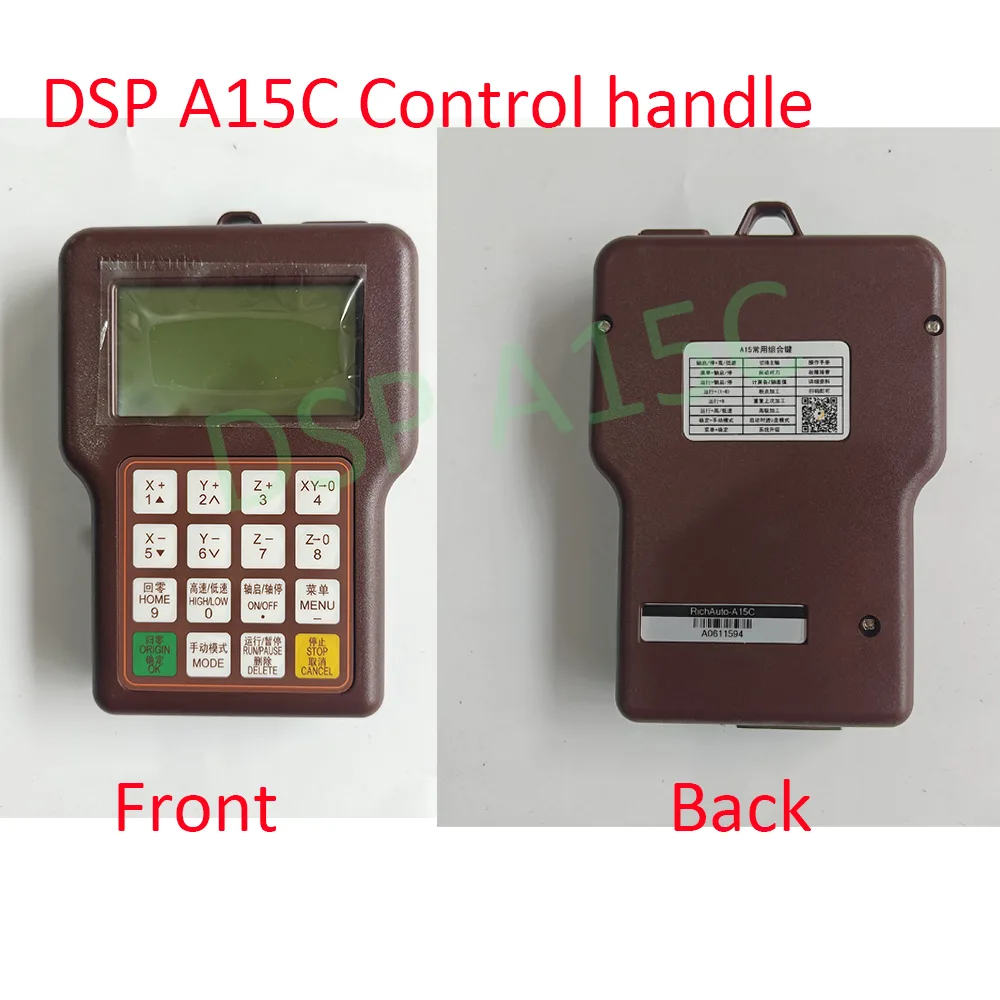

RichAuto A15E Multi-Spindle DSP Controller – English Version RichAuto A15E is an original English-version multi-spindle motion control system from the AutoNow A1X series. It is specially designed for CNC machines with pneumatic cylinder multi-spindle units, supporting 3-axis linkage control and independent cylinder up/down control for each spindle. The A15E features a 3-inch monochrome LCD handheld controller with 24 buttons for intuitive, flexible operation. It supports full offline operation via USB disk — no computer required during processing. Built-in 512MB memory, supports G-code, PLT format, and mainstream CAM software such as Type3, ArtCAM, UG, Pro/E, and MasterCAM. Ideal for multi-spindle CNC routers, woodworking engraving machines, and multi-head processing equipment. Wholesale and bulk orders supported — MOQ flexible, OEM/ODM welcome. Standard Configuration Handheld Controller × 1, 50-Pin Cable × 1, USB Data Cable × 1, I/O Interface Board × 1
