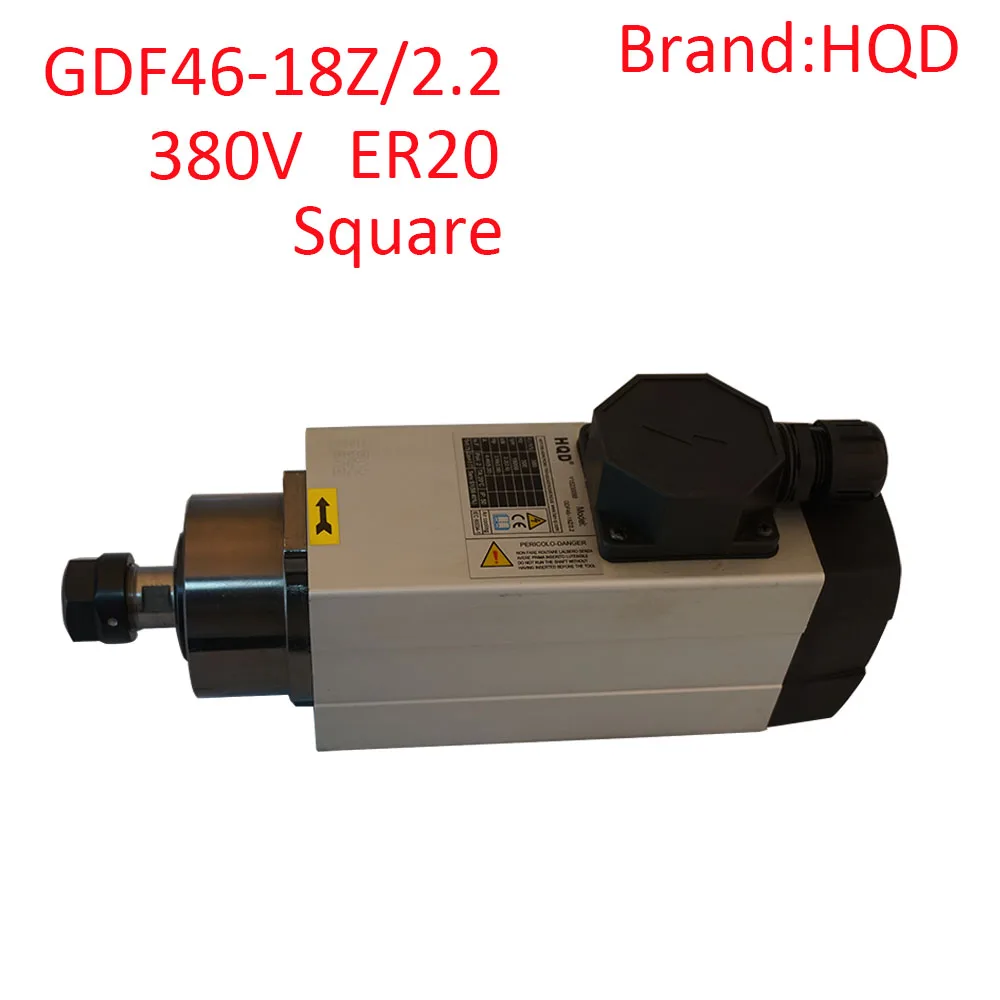

GDF46-18Z 2.2KW 380V
HQD GDF46-18Z/2.2 380v Air-Cooled Spindle
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDF46-18Z/2.2 380v Air-Cooled Spindle
- Availability
- In Stock / Made to Order

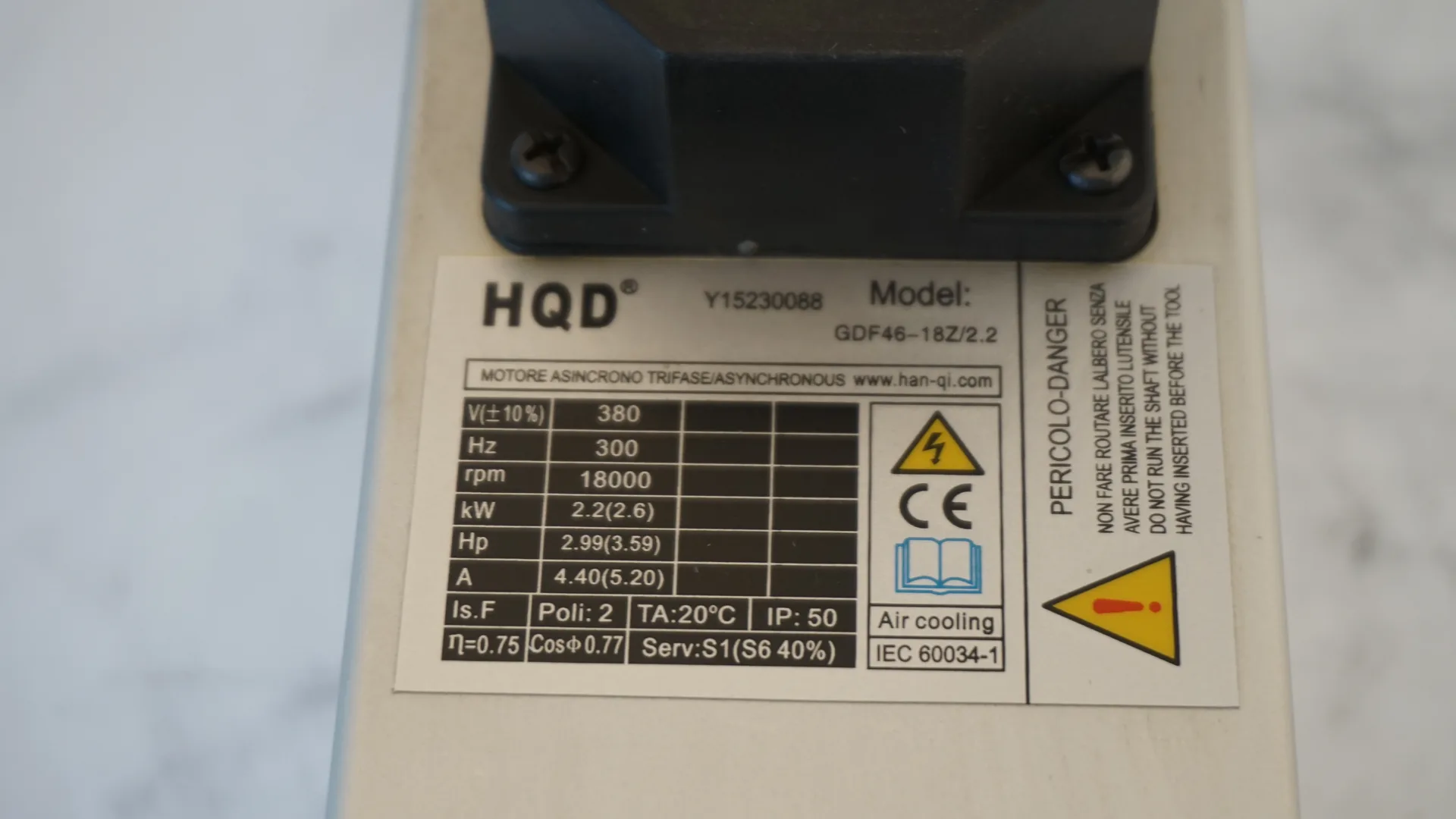

| Power | 2.2kw |
|---|---|
| Voltage | 380V |
| Current | 4.4A |
| Frequency | 300Hz |
| Rotational speed | 18000rpm |

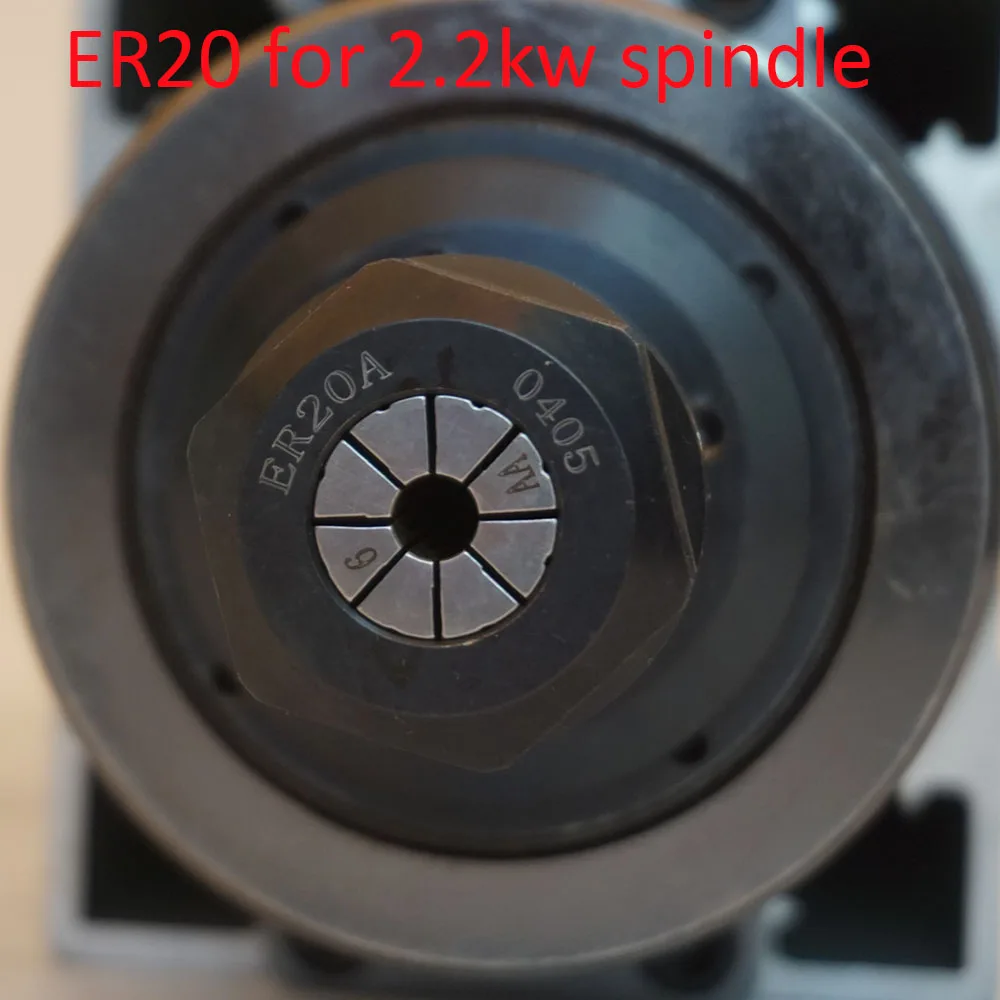

| Tool Holder | ER20 |
| Number of pole | 2P |
| Weight | 7KG |
The HQD GDF46-18Z/2.2 is a 2.2 kW square air-cooled spindle designed for woodworking and engraving CNC routers. It operates at up to 18,000 rpm with a 2-pole asynchronous motor, delivering 1.17 Nm of torque. The ER20 collet accepts tool shanks from 3.175 mm to 13 mm. Its square housing provides high rigidity and effective heat dissipation via a shaft-mounted fan, eliminating the need for a water-cooling system and preventing coolant contamination in woodworking applications
Product Details

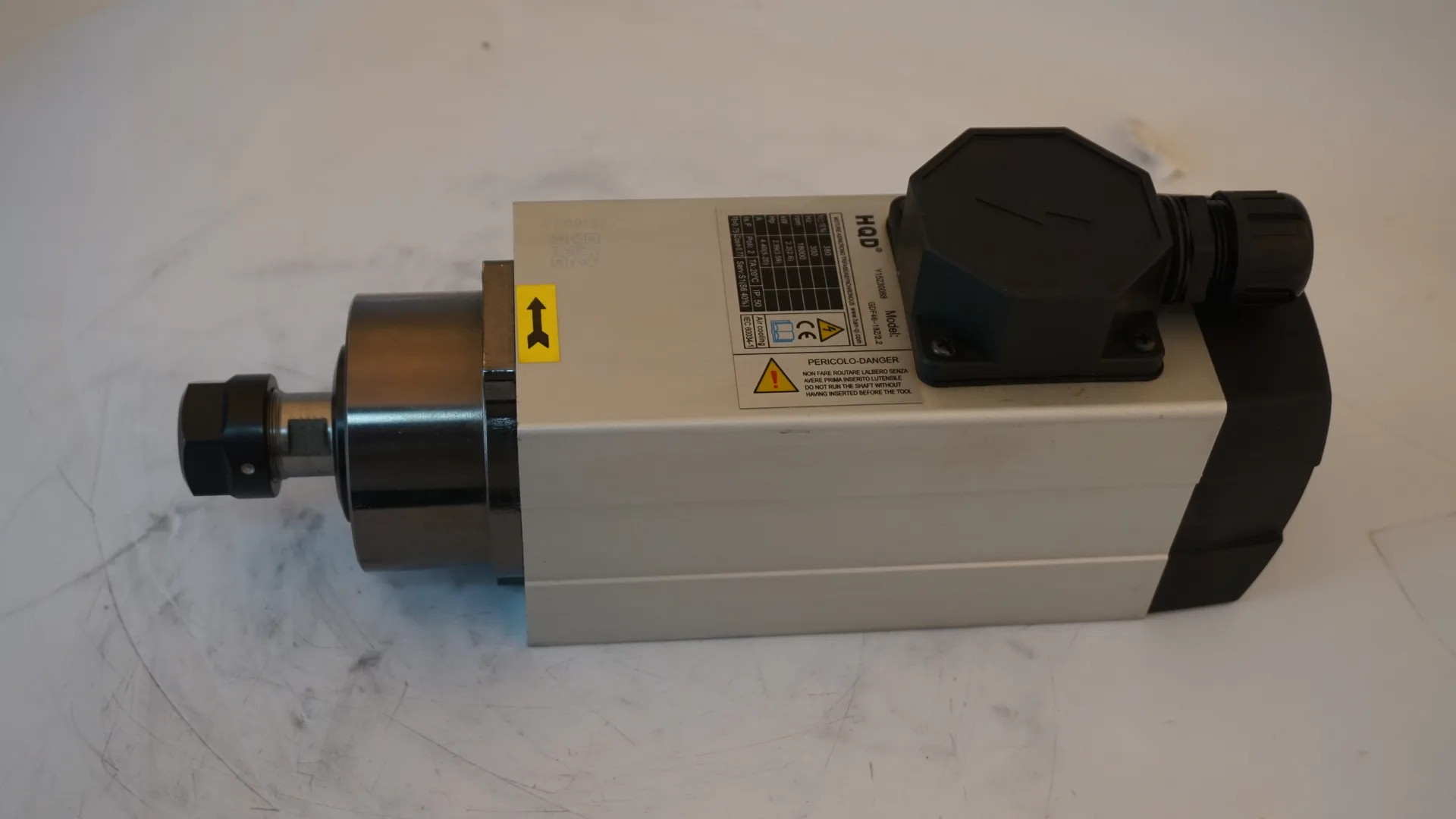

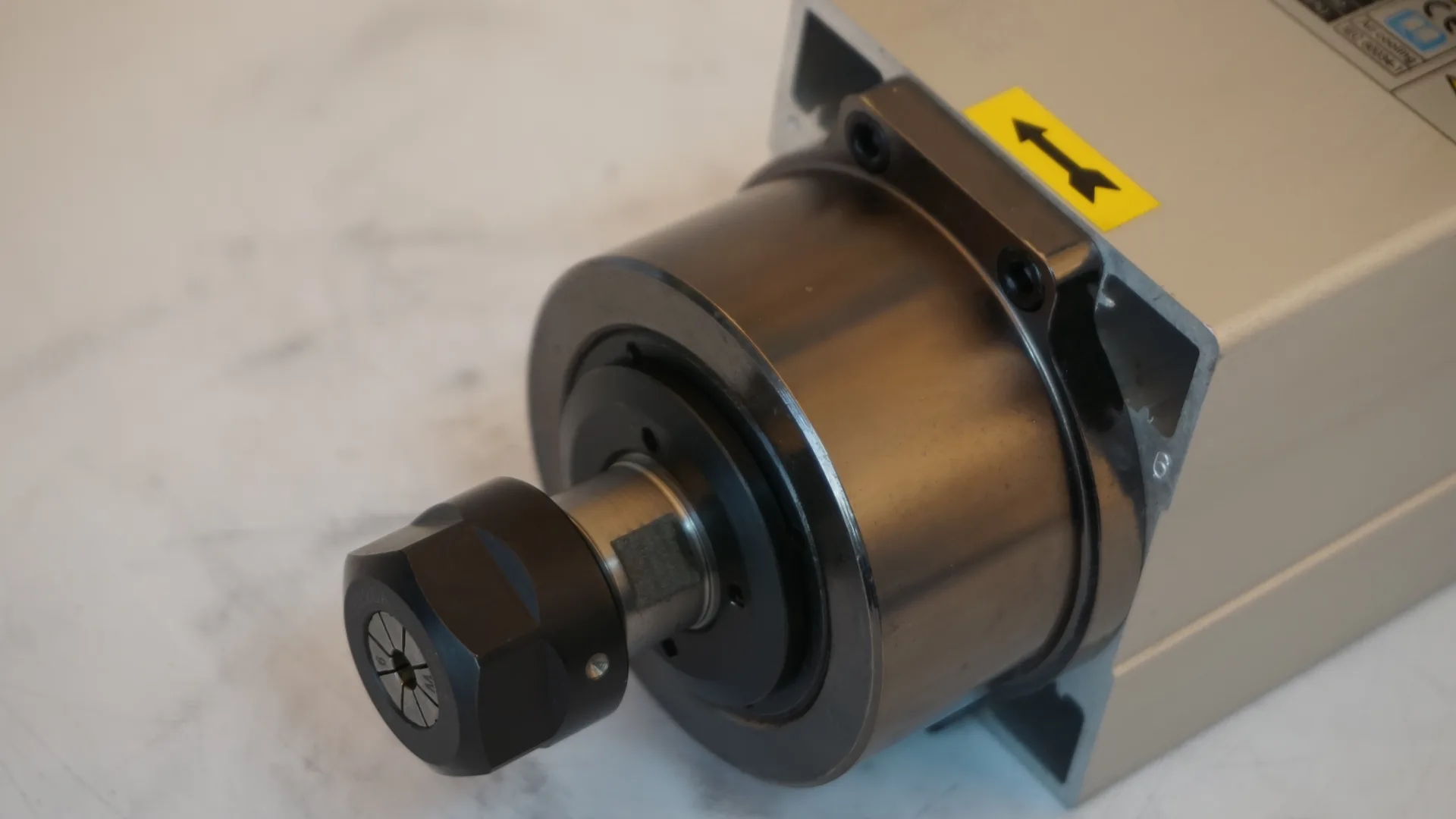

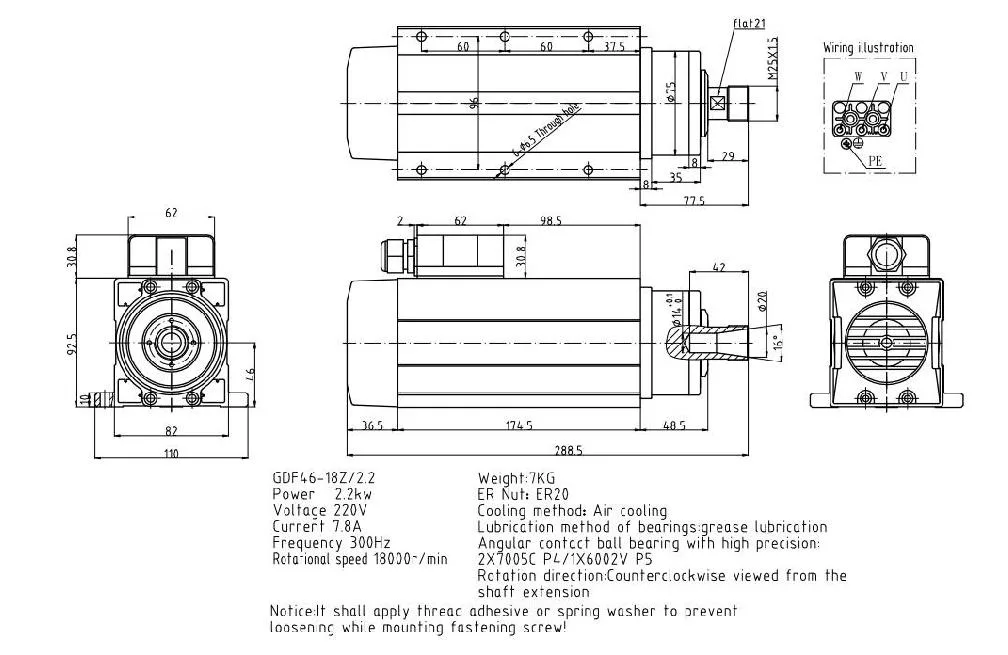

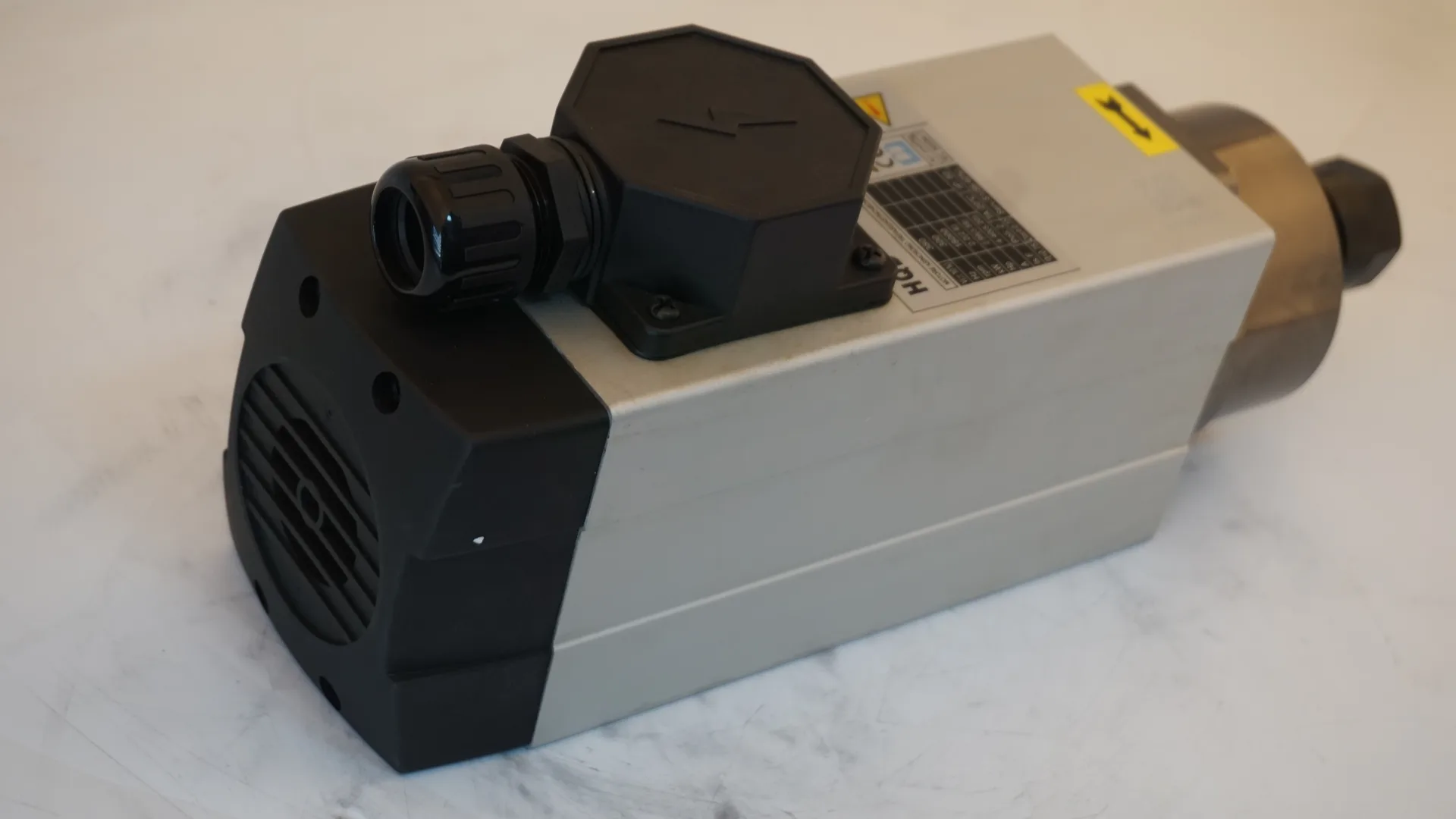

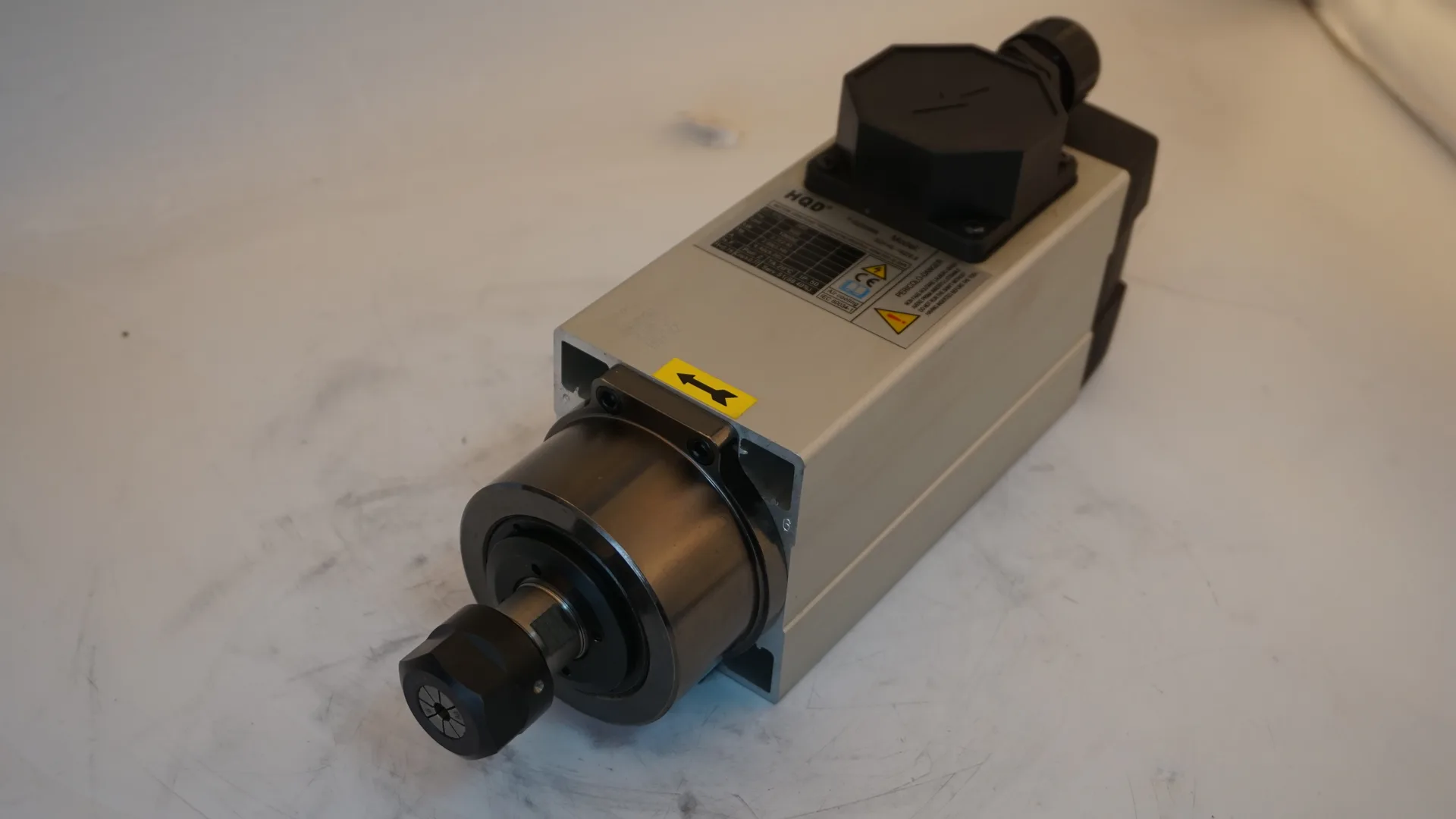

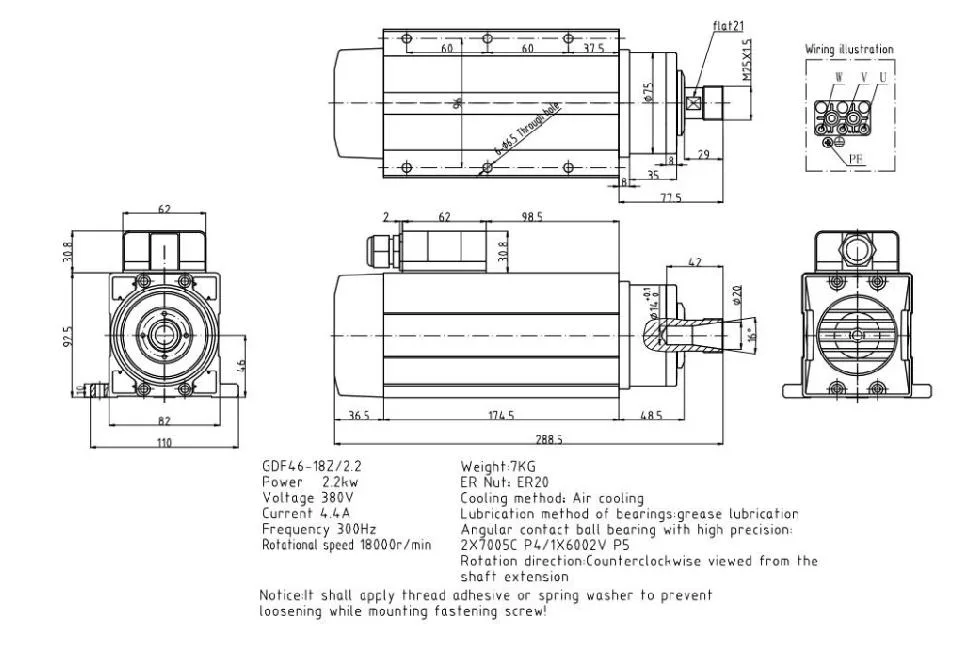

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDF46-18Z/2.2 is a 2.2 kW square air-cooled spindle designed for woodworking and engraving CNC routers. It operates at up to 18,000 rpm with a 2-pole asynchronous motor, delivering 1.17 Nm of torque. The ER20 collet accepts tool shanks from 3.175 mm to 13 mm. Its square housing provides high rigidity and effective heat dissipation via a shaft-mounted fan, eliminating the need for a water-cooling system and preventing coolant contamination in woodworking applications
