GDF46-18Z 3.5 380v with flange

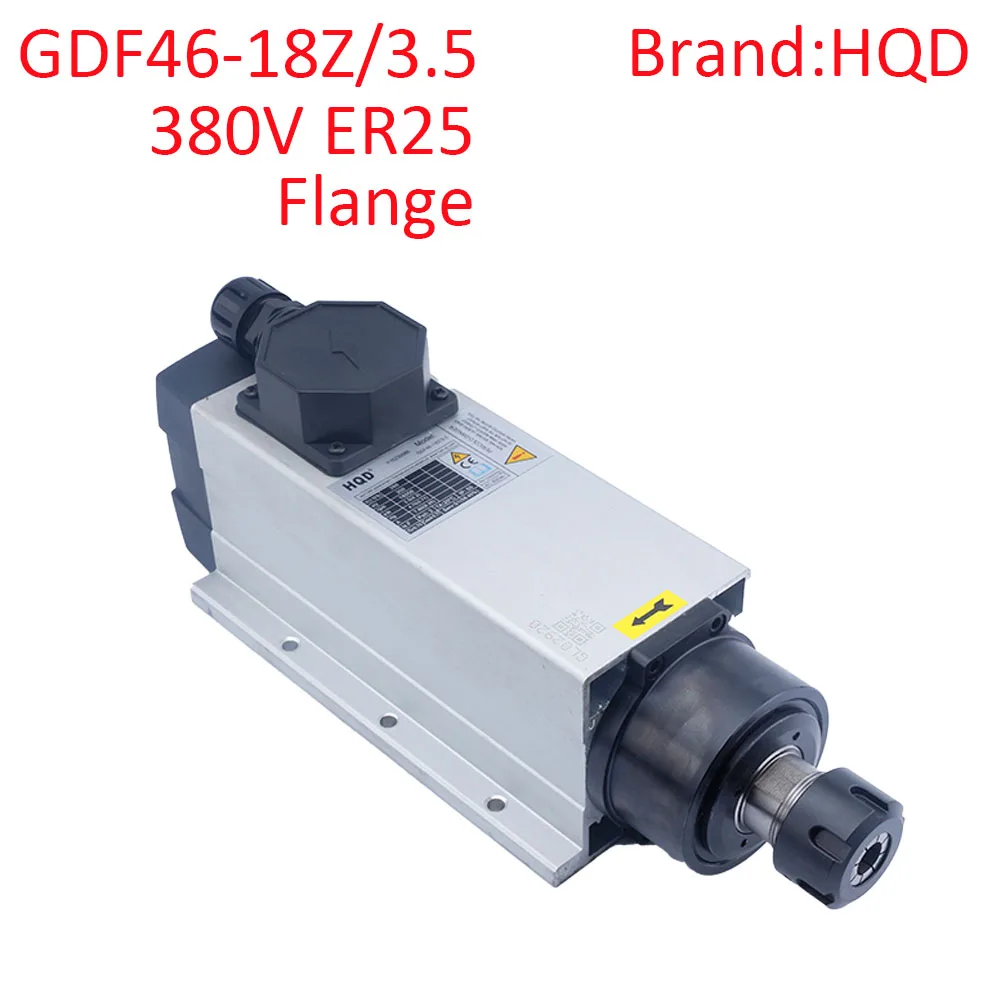

HQD GDF46-18Z/3.5 380v Air-Cooled Spindle with Flange
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDF46-18Z/3.5 380v Air-Cooled Spindle with Flange
- Availability
- In Stock / Made to Order
| Power | 3.5kw |
|---|---|
| Voltage | 380V |
| Current | 7.0A |
| Frequency | 300Hz |
| Rotational speed | 18000rpm |
| Tool Holder | ER25 |
| Number of pole | 2P |
| Weight | 8KG |

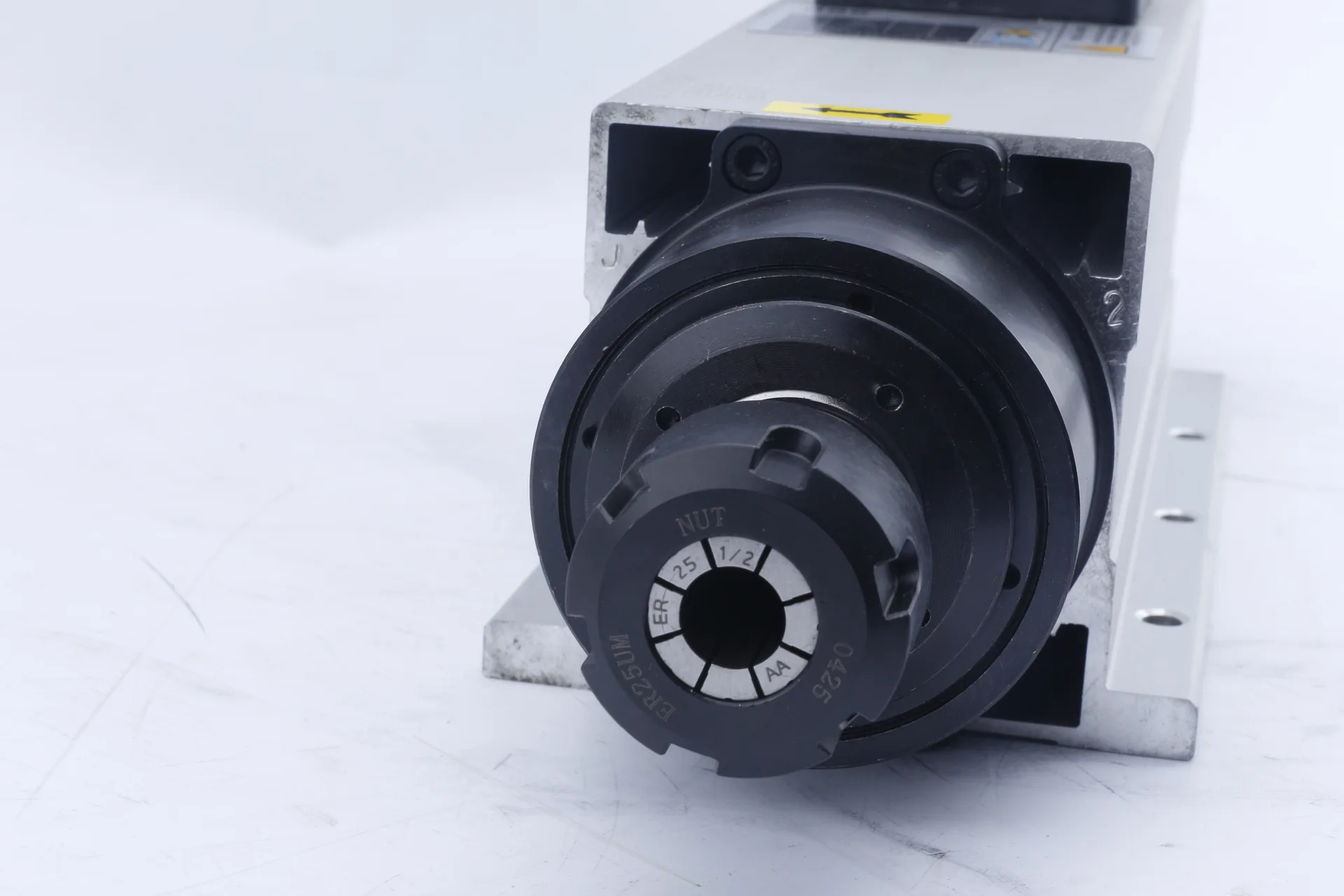

The HQD GDF46-18Z/3.5 is a 3.5 kW square air-cooled spindle designed for woodworking engraving and CNC routing. It operates at up to 18,000 rpm with a 2-pole three-phase asynchronous motor, delivering 1.59 Nm of torque. The ER25 collet accepts tool shanks from 3.175 mm to 16 mm. Its air-cooling system uses a shaft-mounted fan to dissipate heat efficiently, eliminating the need for a water-cooling circuit and simplifying installation and maintenance.

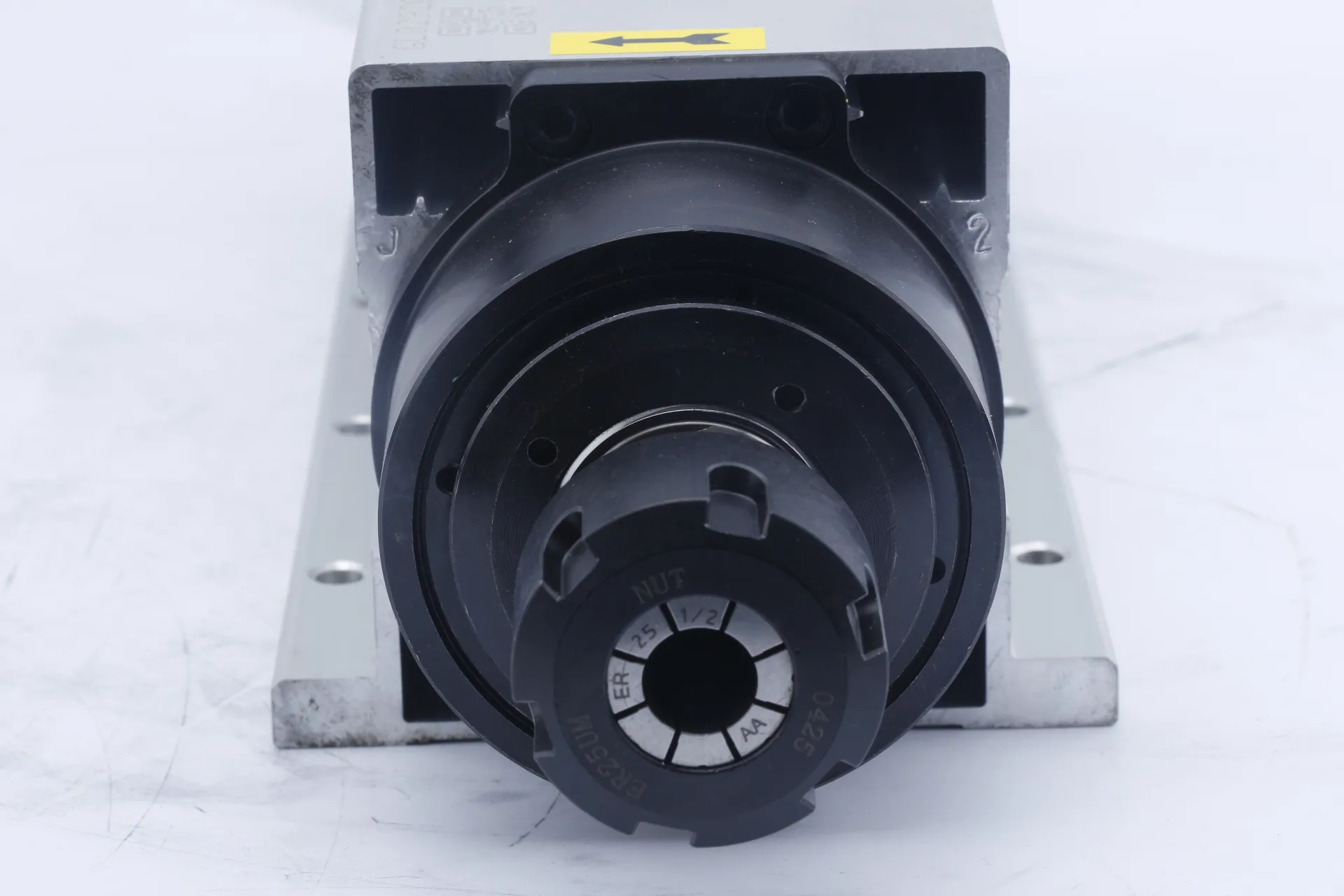

Product Details

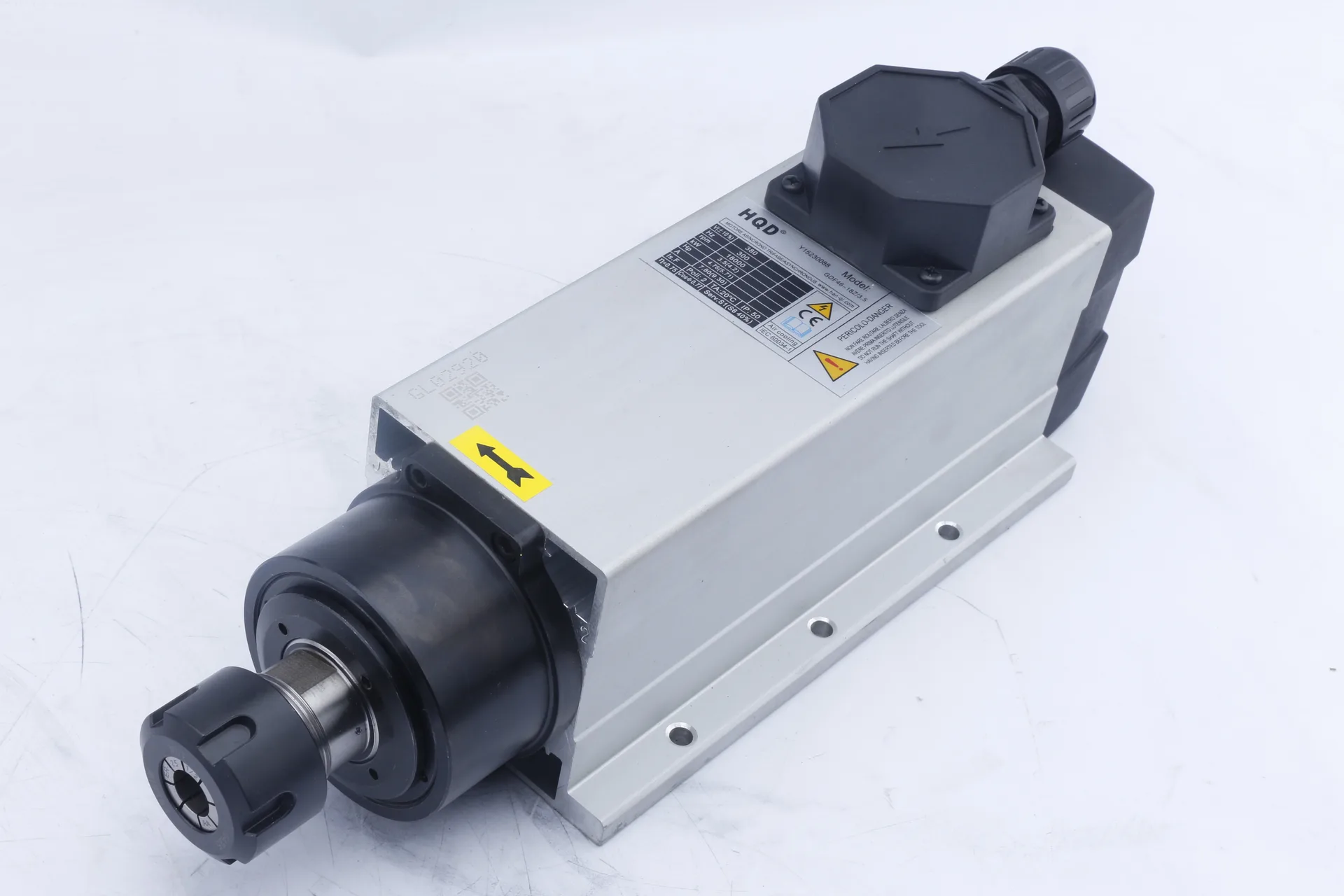

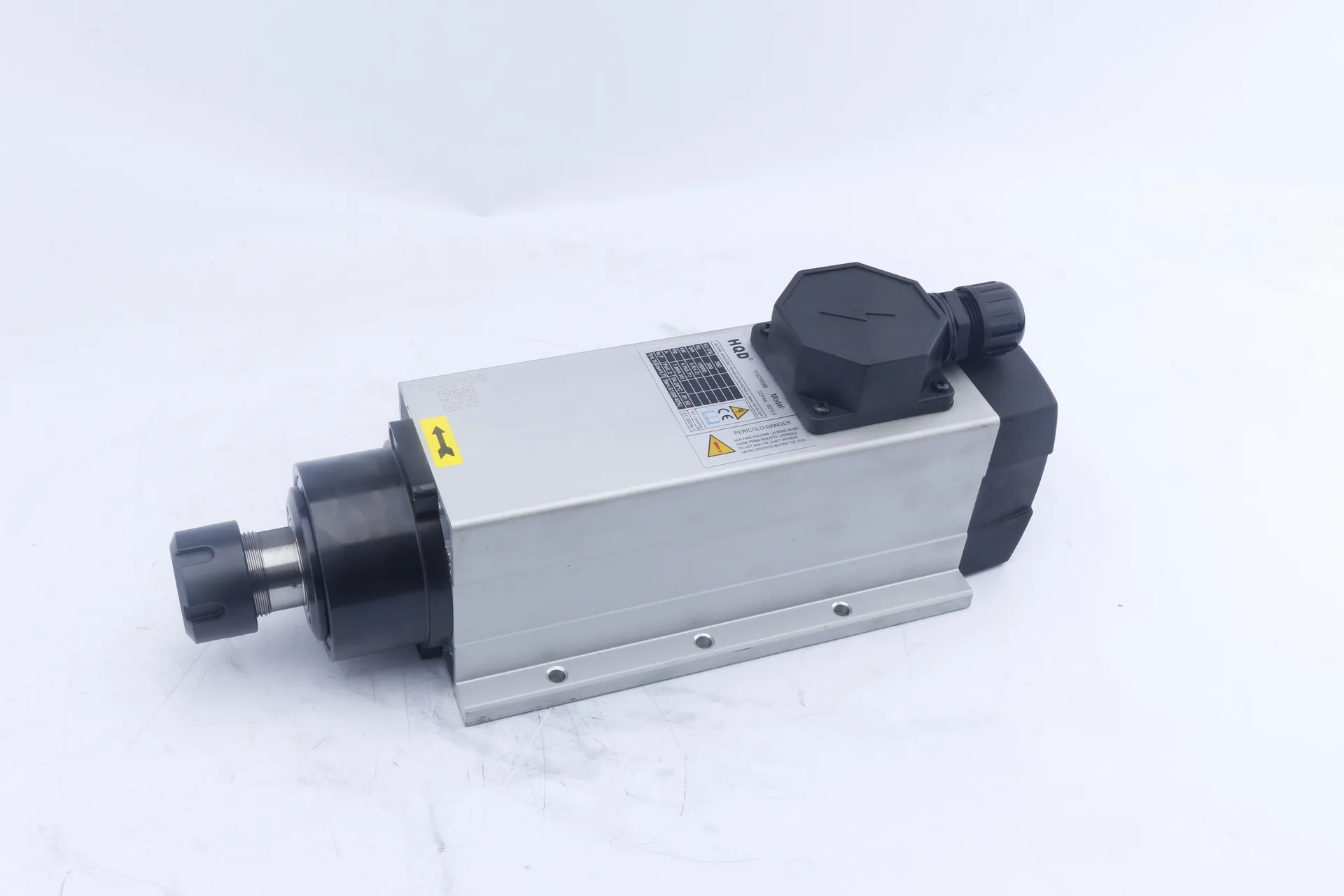

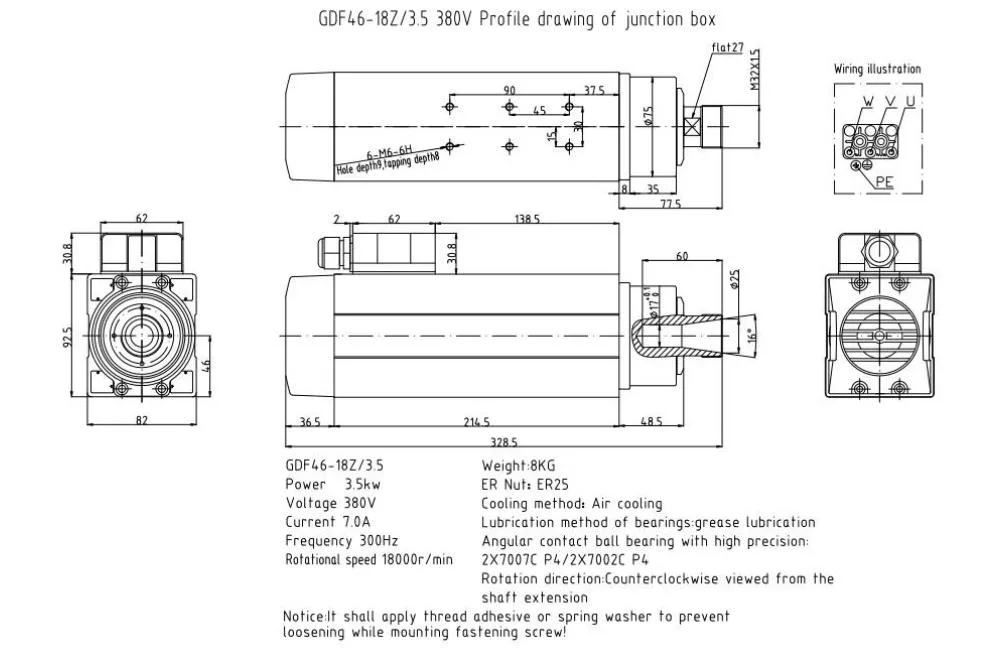

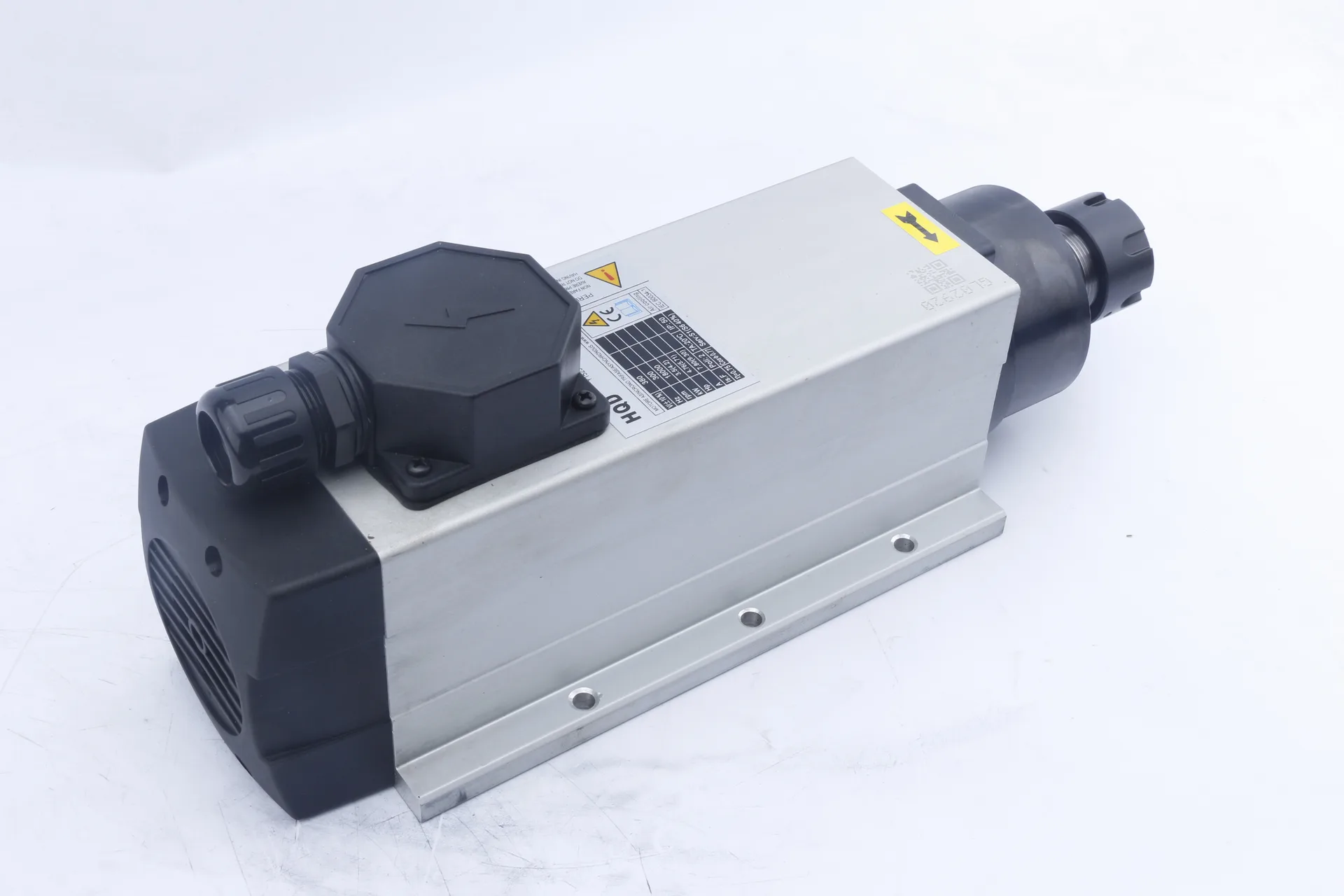

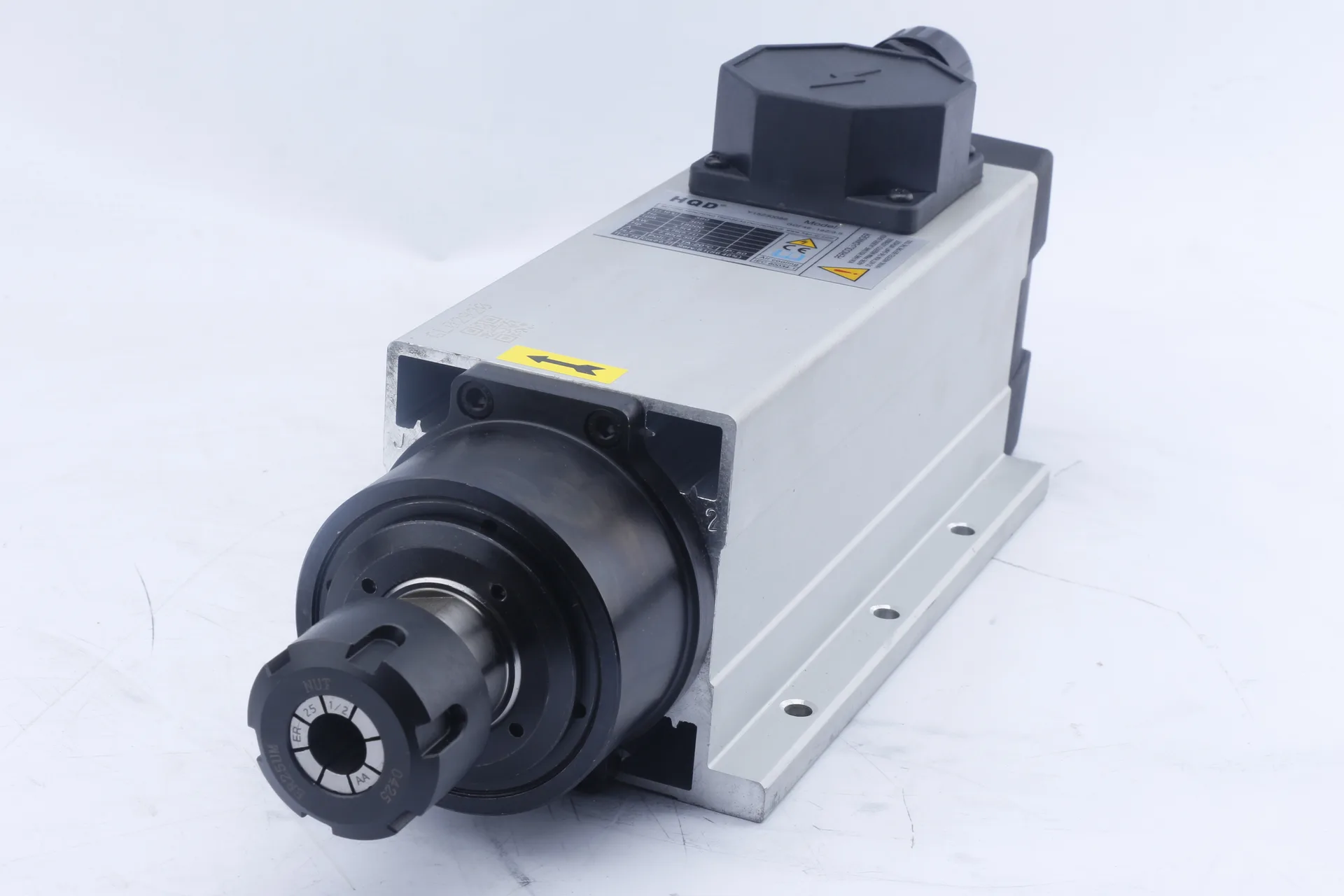

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDF46-18Z/3.5 is a 3.5 kW square air-cooled spindle designed for woodworking engraving and CNC routing. It operates at up to 18,000 rpm with a 2-pole three-phase asynchronous motor, delivering 1.59 Nm of torque. The ER25 collet accepts tool shanks from 3.175 mm to 16 mm. Its air-cooling system uses a shaft-mounted fan to dissipate heat efficiently, eliminating the need for a water-cooling circuit and simplifying installation and maintenance.
