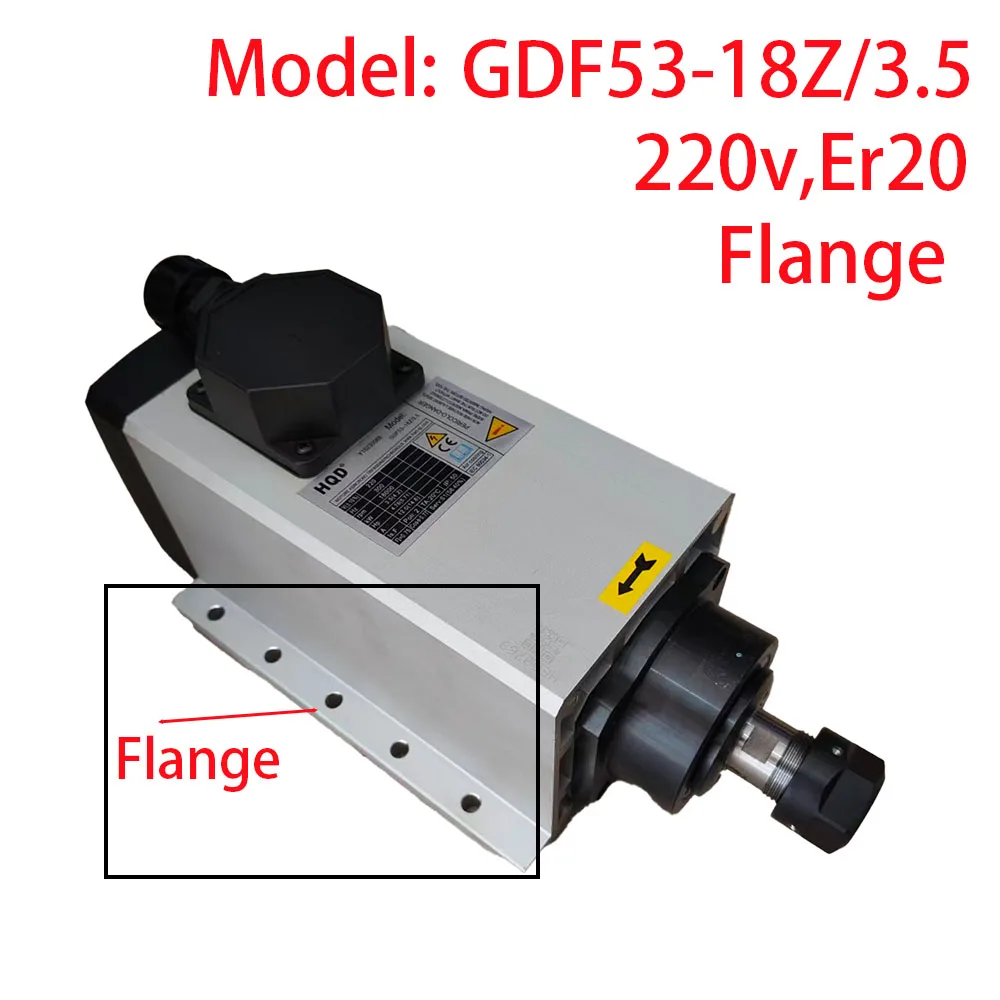

GDF53-18Z 3.5 220V with flange
HQD GDF53-18Z/3.5 220V Water-Cooled Spindle with Flange
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDF53-18Z/3.5 220V Water-Cooled Spindle with Flange
- Availability
- In Stock / Made to Order
| Power | 3.5kw |
|---|---|
| Voltage | 220V |
| Current | 7.8A |
| Frequency | 300Hz |
| Rotational speed | 18000rpm |
| Tool Holder | ER20 |
| Number of pole | Not specified |
| Weight | 8KG |
The HQD GDF53-18Z/3.5 is a 3.5 kW water-cooled spindle designed for high-precision CNC routing and engraving. It delivers 1.33 Nm of torque at a maximum speed of 18,000 rpm. Equipped with an ER20 collet, it accepts tool shanks from 3.175 mm to 16 mm. The water-cooling system ensures efficient heat dissipation, enabling stable performance during continuous operation. With P4-grade bearings and grease lubrication, this 8 kg spindle offers high rigidity and reliability for demanding woodworking and machining applications.

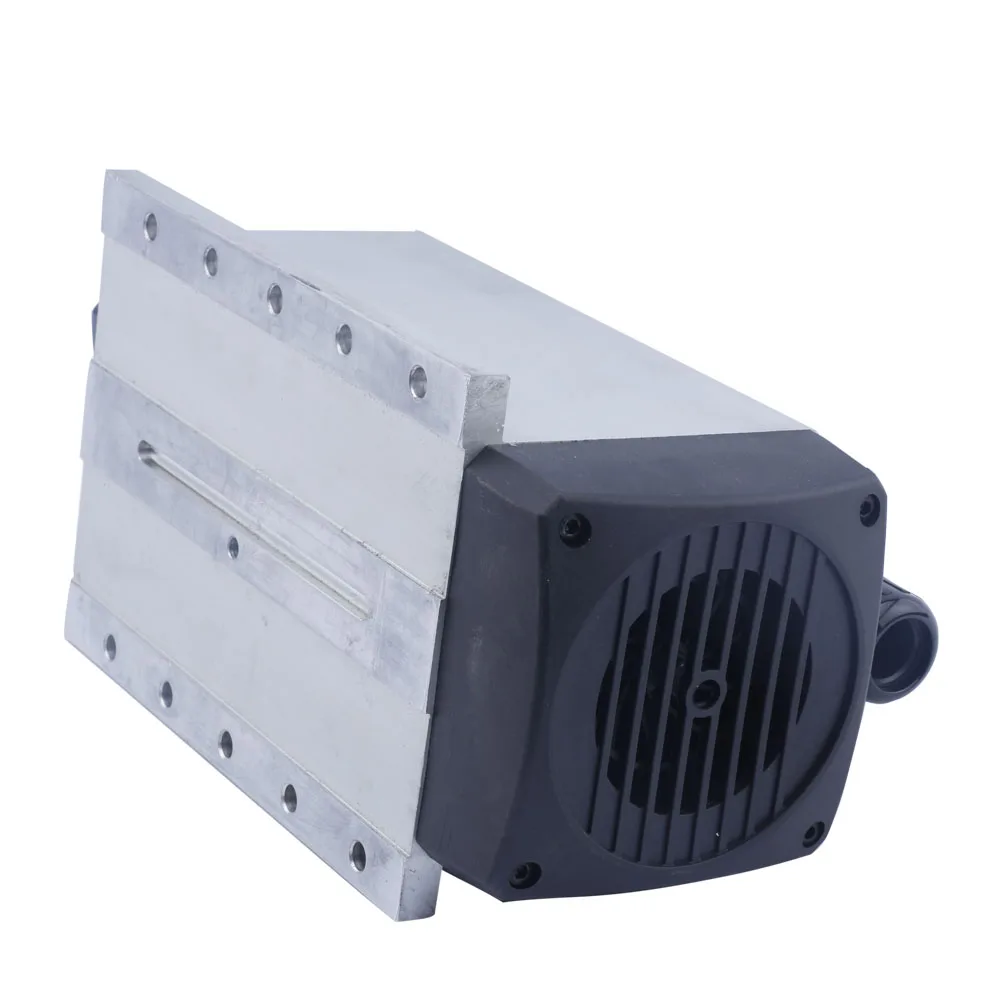

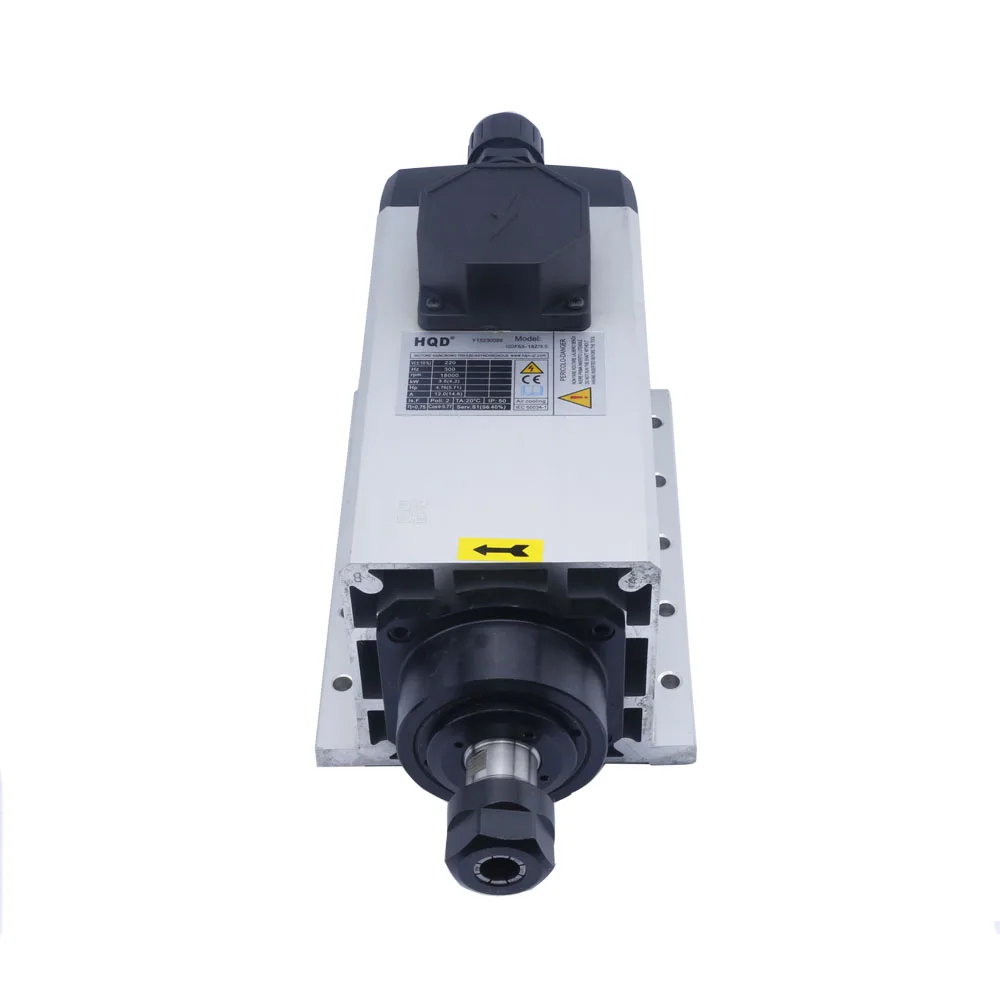

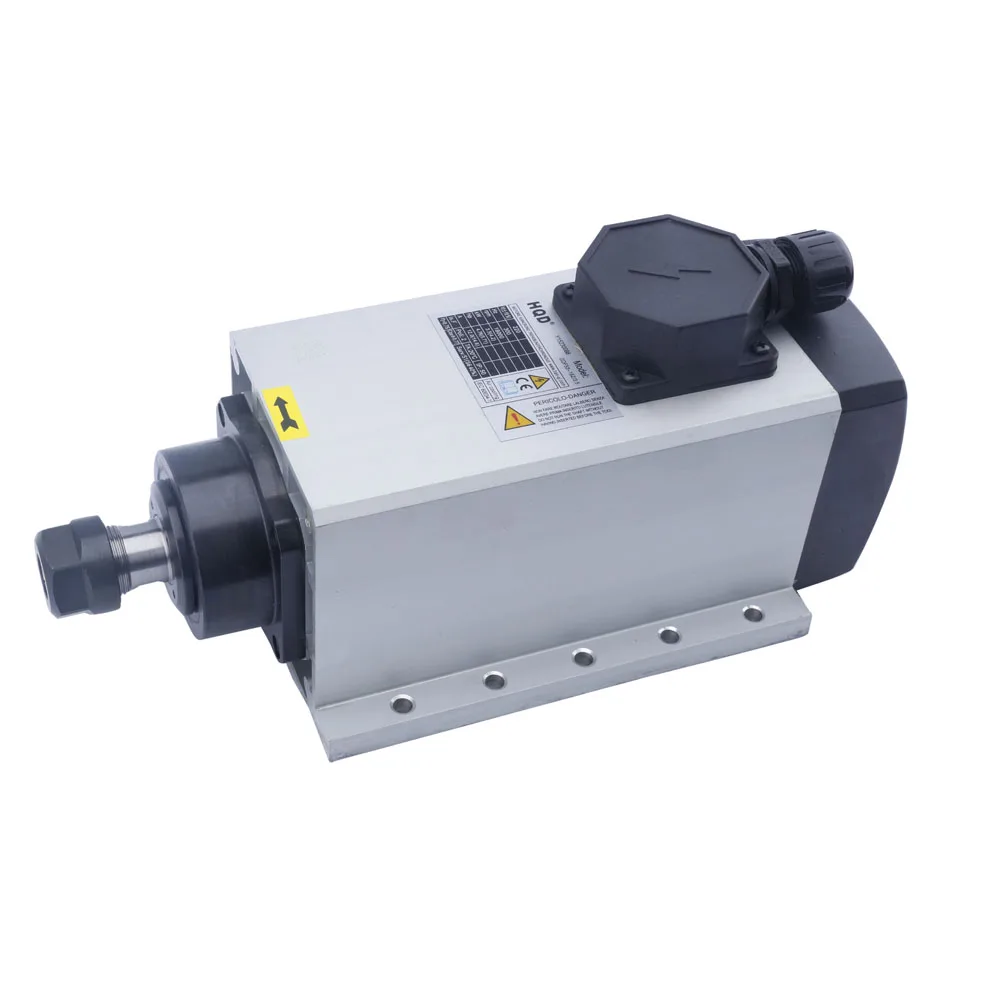

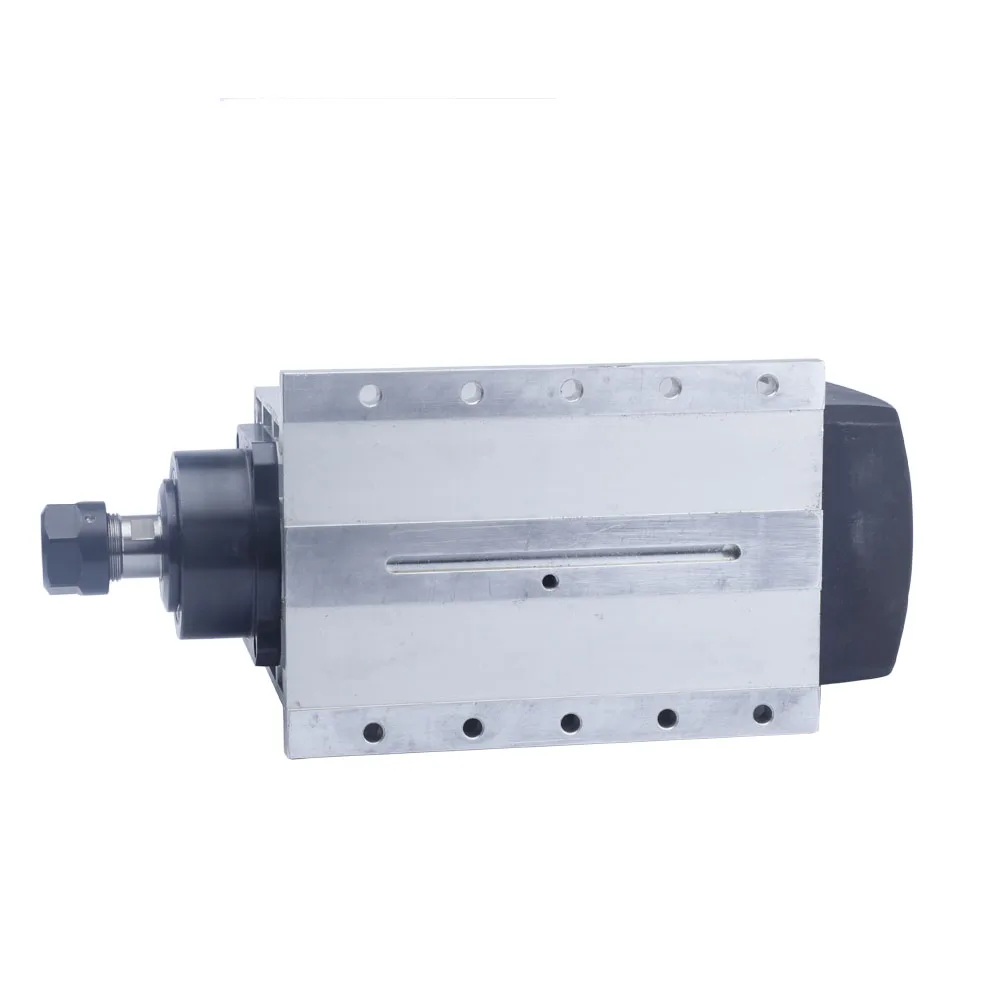

Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDF53-18Z/3.5 is a 3.5 kW water-cooled spindle designed for high-precision CNC routing and engraving. It delivers 1.33 Nm of torque at a maximum speed of 18,000 rpm. Equipped with an ER20 collet, it accepts tool shanks from 3.175 mm to 16 mm. The water-cooling system ensures efficient heat dissipation, enabling stable performance during continuous operation. With P4-grade bearings and grease lubrication, this 8 kg spindle offers high rigidity and reliability for demanding woodworking and machining applications.
