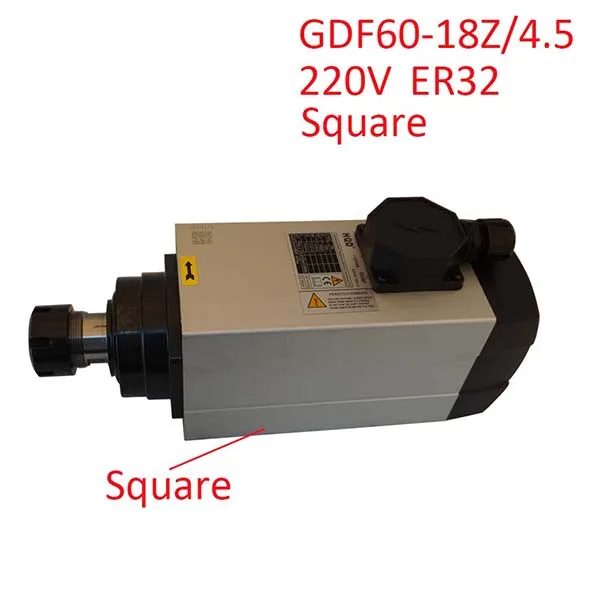

GDF60-18Z 4.5KW
HQD GDF60-18Z/4.5 Water-Cooled Spindle
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDF60-18Z/4.5 Water-Cooled Spindle
- Availability
- In Stock / Made to Order
| Power | 4.5kw |
|---|---|
| Voltage | 220V/380V |
| Current | 15A/9.0A |
| Frequency | 300Hz/400Hz |
| Rotational speed | 18000rpm/24000rpm |
| Tool Holder | ER25 |
| Number of pole | Not specified |
| Weight | 12KG |
The HQD GDF60-18Z/4.5 is a 4.5 kW water-cooled spindle designed for high-precision CNC routing and engraving. It operates on 220V or 380V and supports dual speed settings (18,000/24,000 rpm). Equipped with an ER25 collet, it accepts tool shanks from 3.175 mm to 16 mm. The water-cooling system and P4-grade bearings ensure stable, reliable performance during continuous operation, making it suitable for demanding woodworking and machining applications.
Product Details

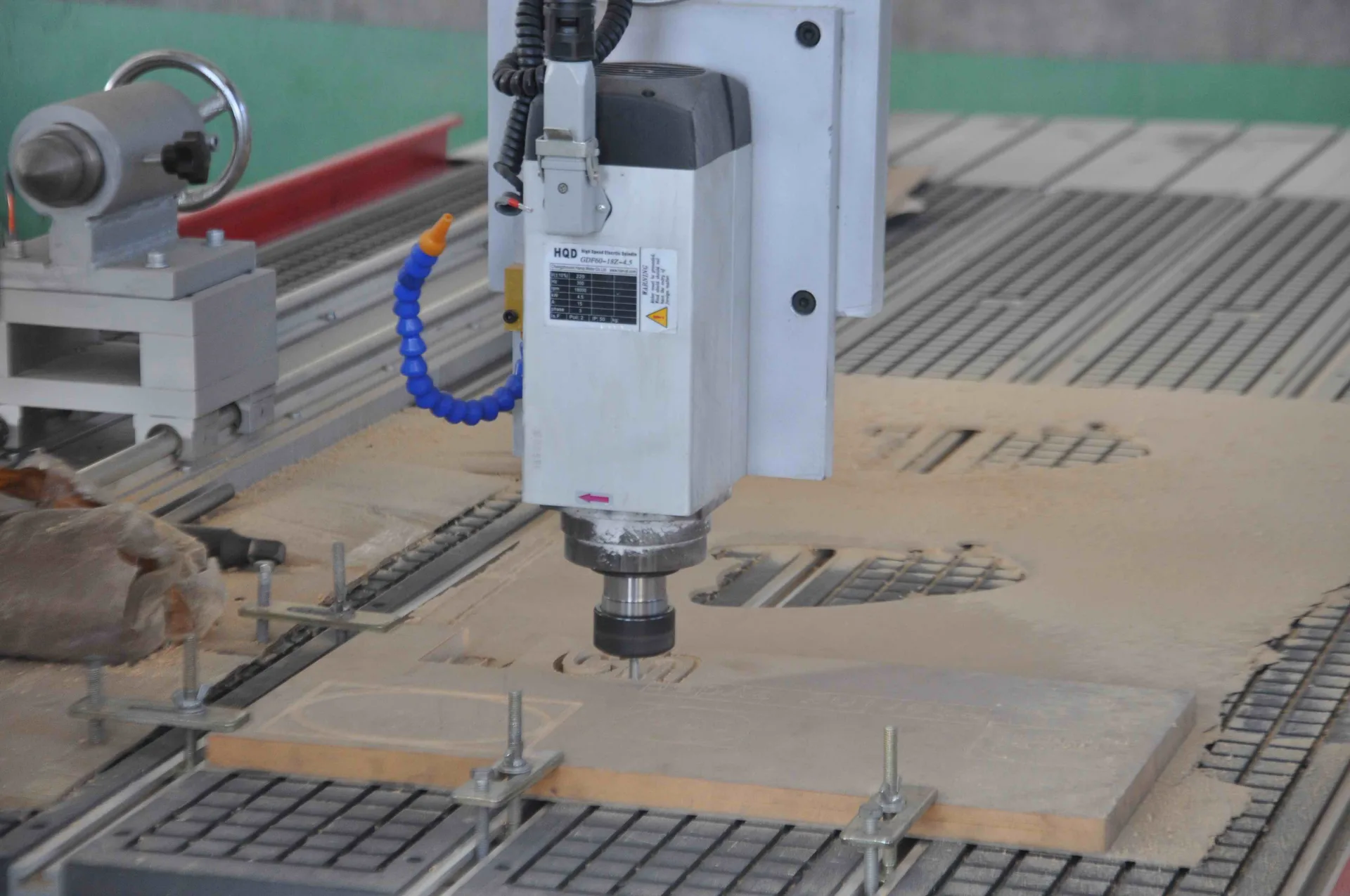

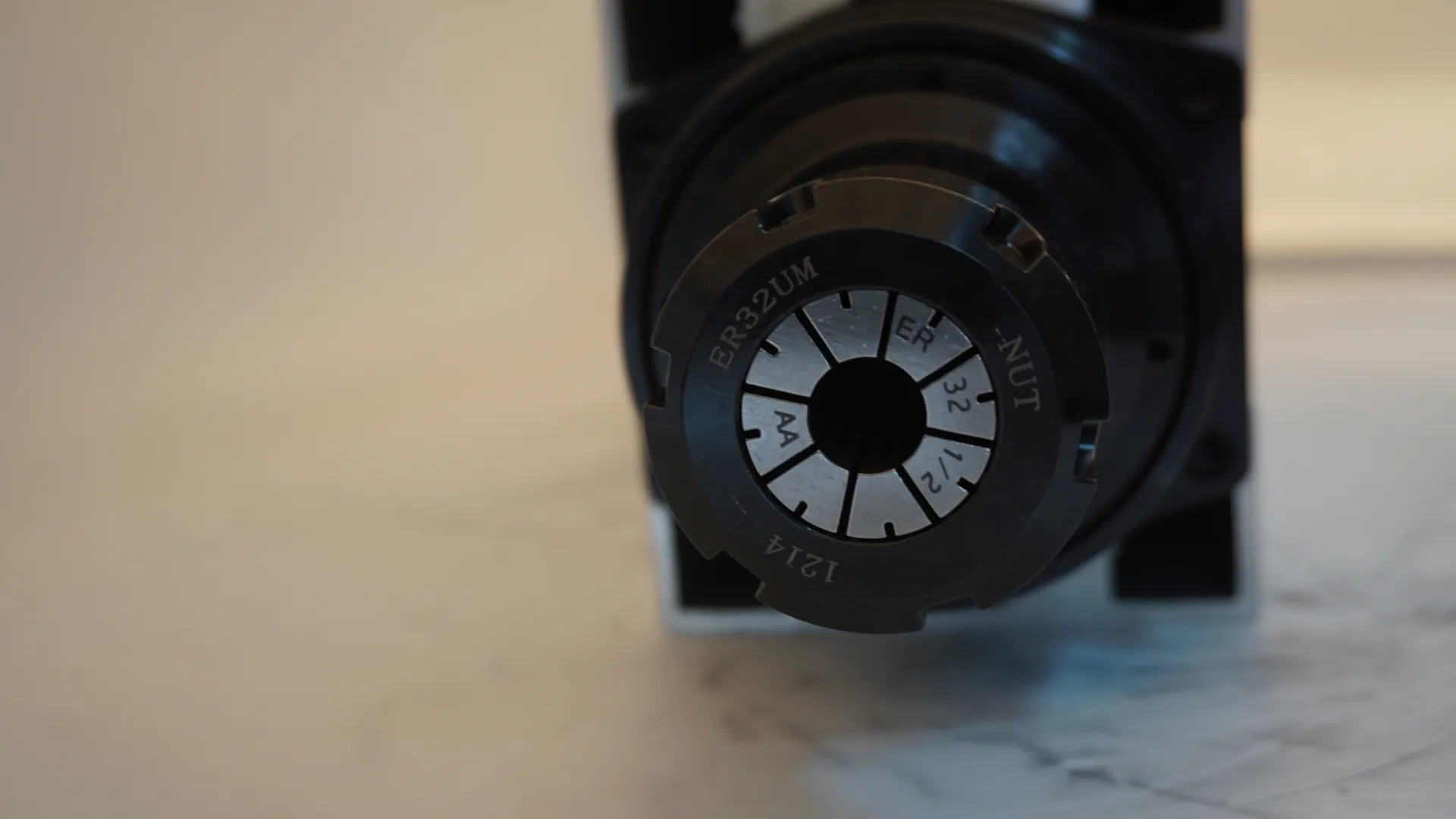

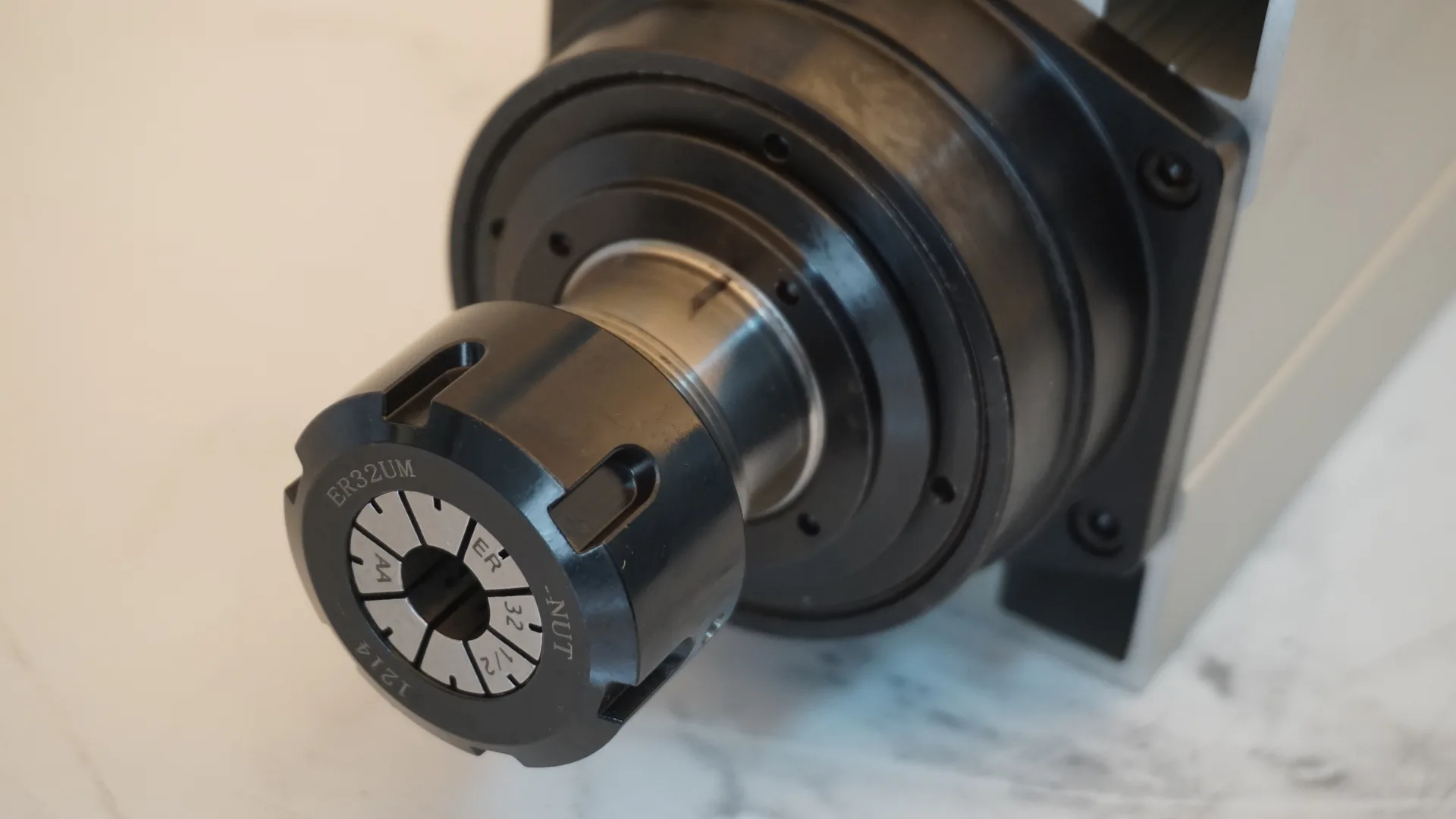

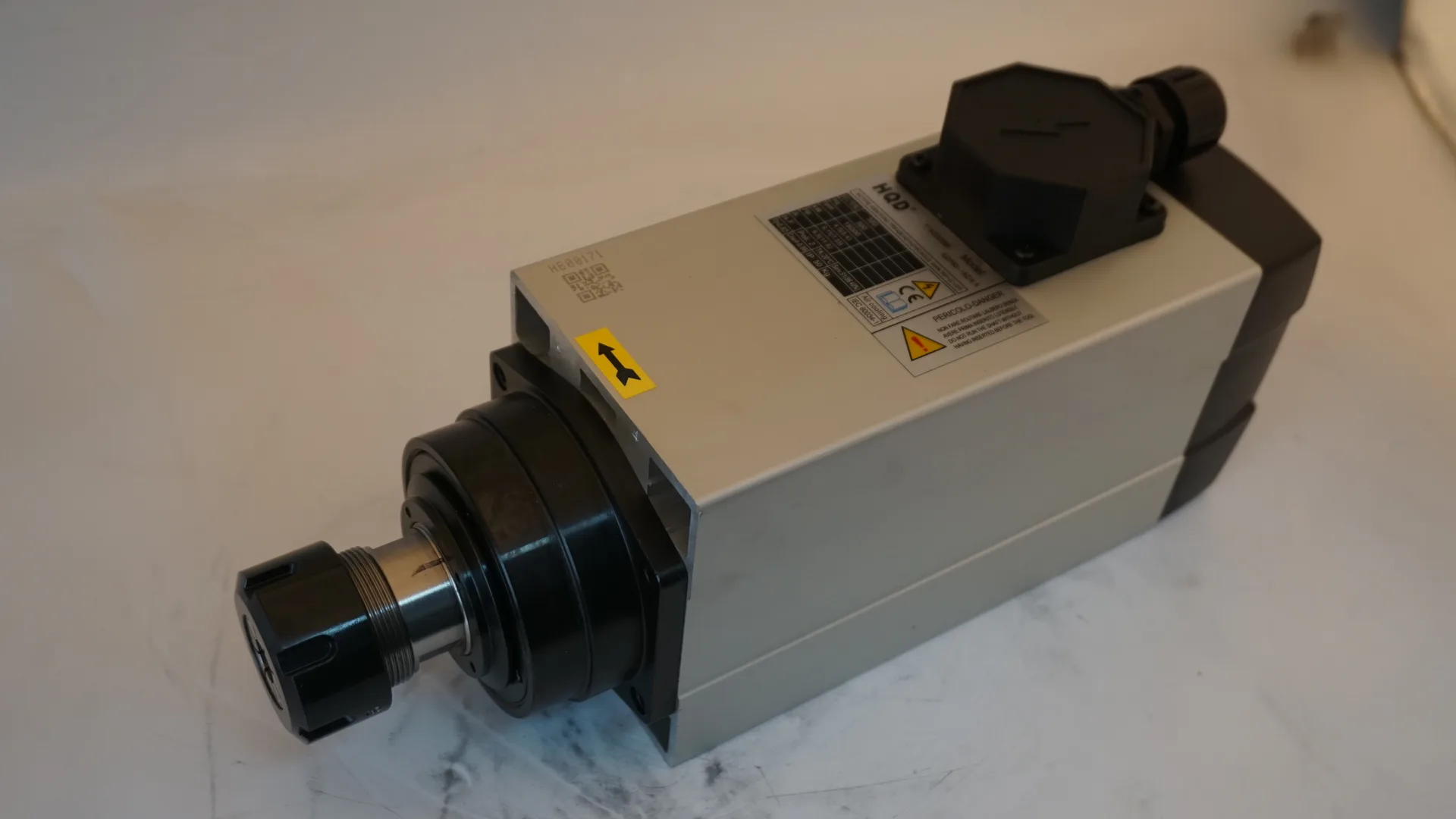

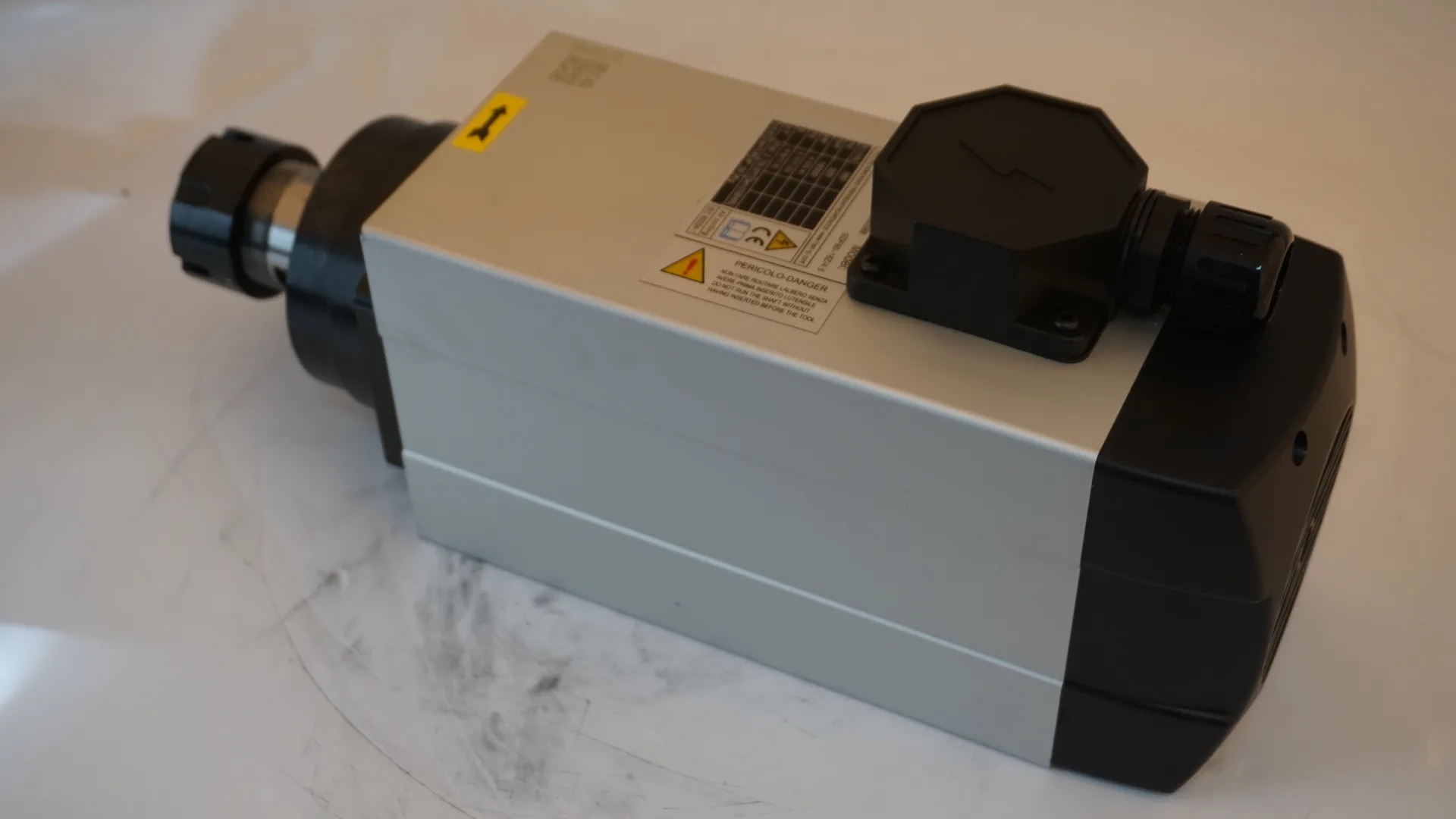

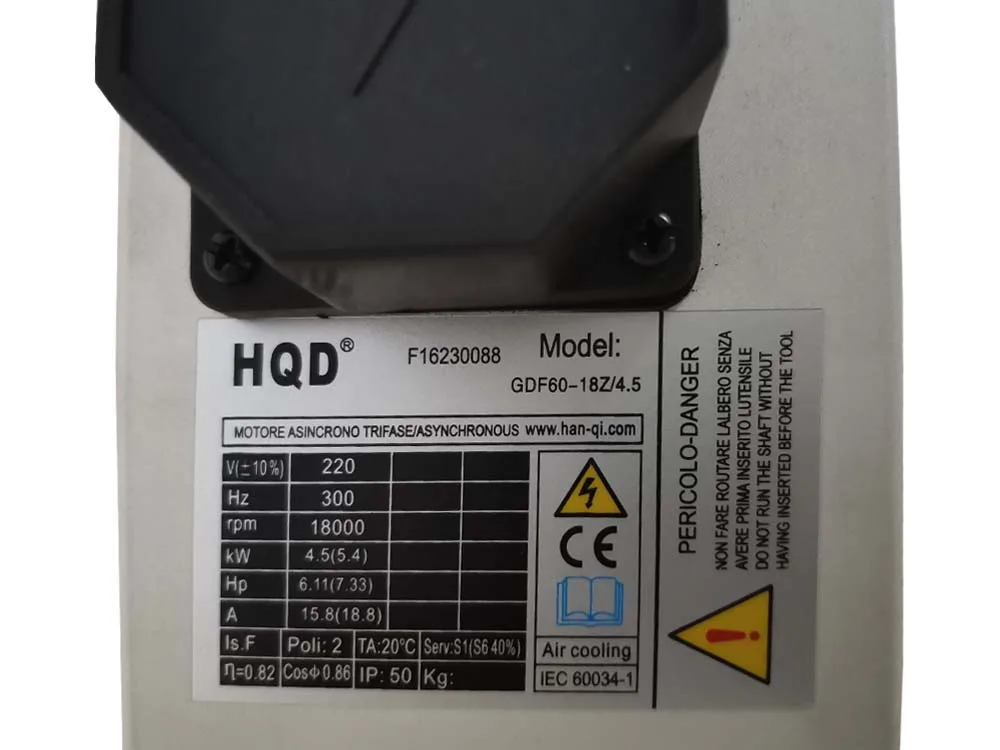

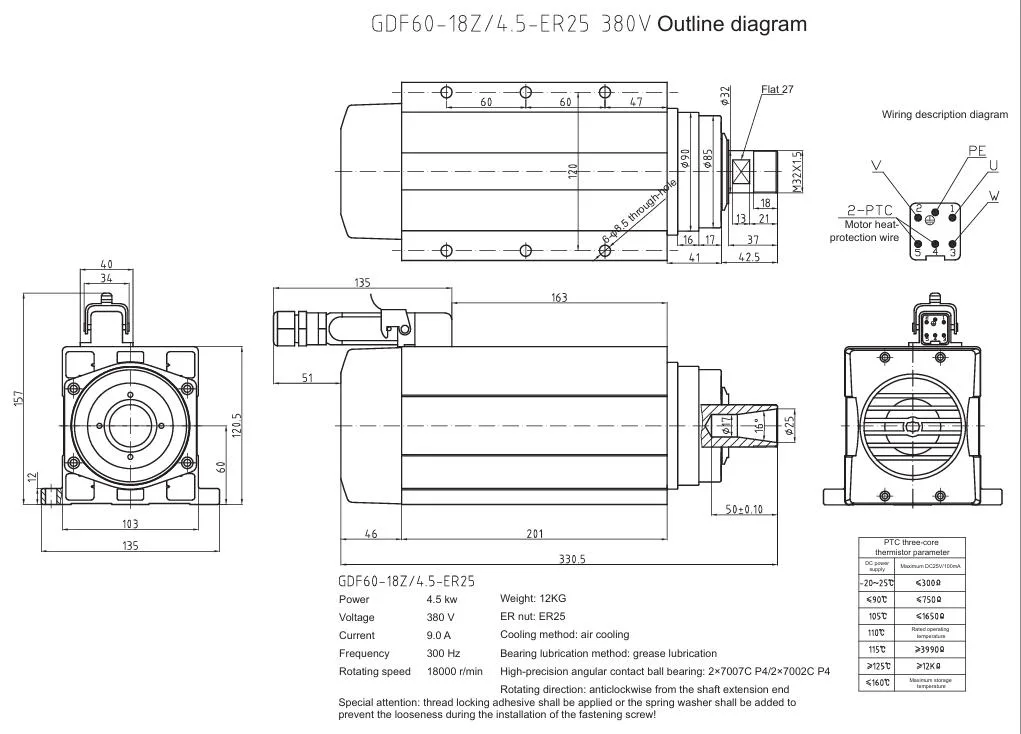

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDF60-18Z/4.5 is a 4.5 kW water-cooled spindle designed for high-precision CNC routing and engraving. It operates on 220V or 380V and supports dual speed settings (18,000/24,000 rpm). Equipped with an ER25 collet, it accepts tool shanks from 3.175 mm to 16 mm. The water-cooling system and P4-grade bearings ensure stable, reliable performance during continuous operation, making it suitable for demanding woodworking and machining applications.
