GDF60-18Z 7.5KW with flange

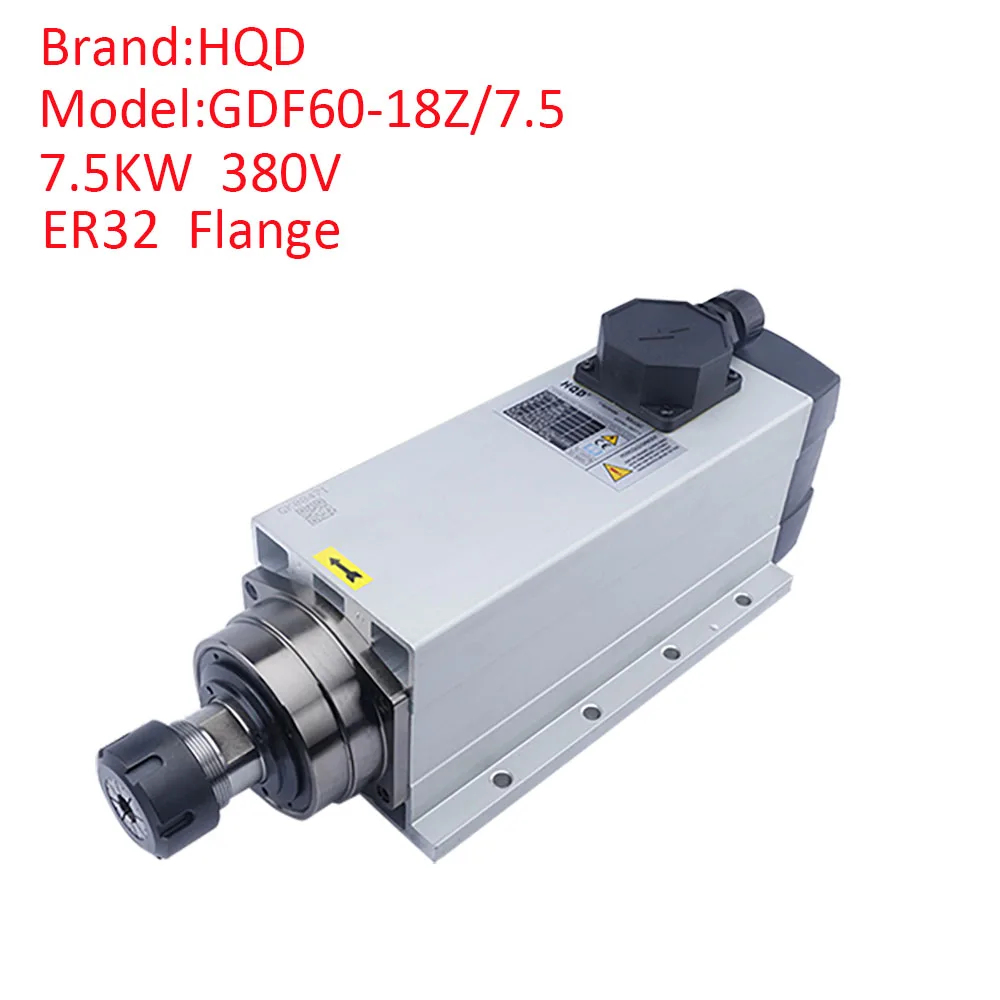

HQD GDF60-18Z/7.5 Air-Cooled Spindle with Flange
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDF60-18Z/7.5 Air-Cooled Spindle with Flange
- Availability
- In Stock / Made to Order

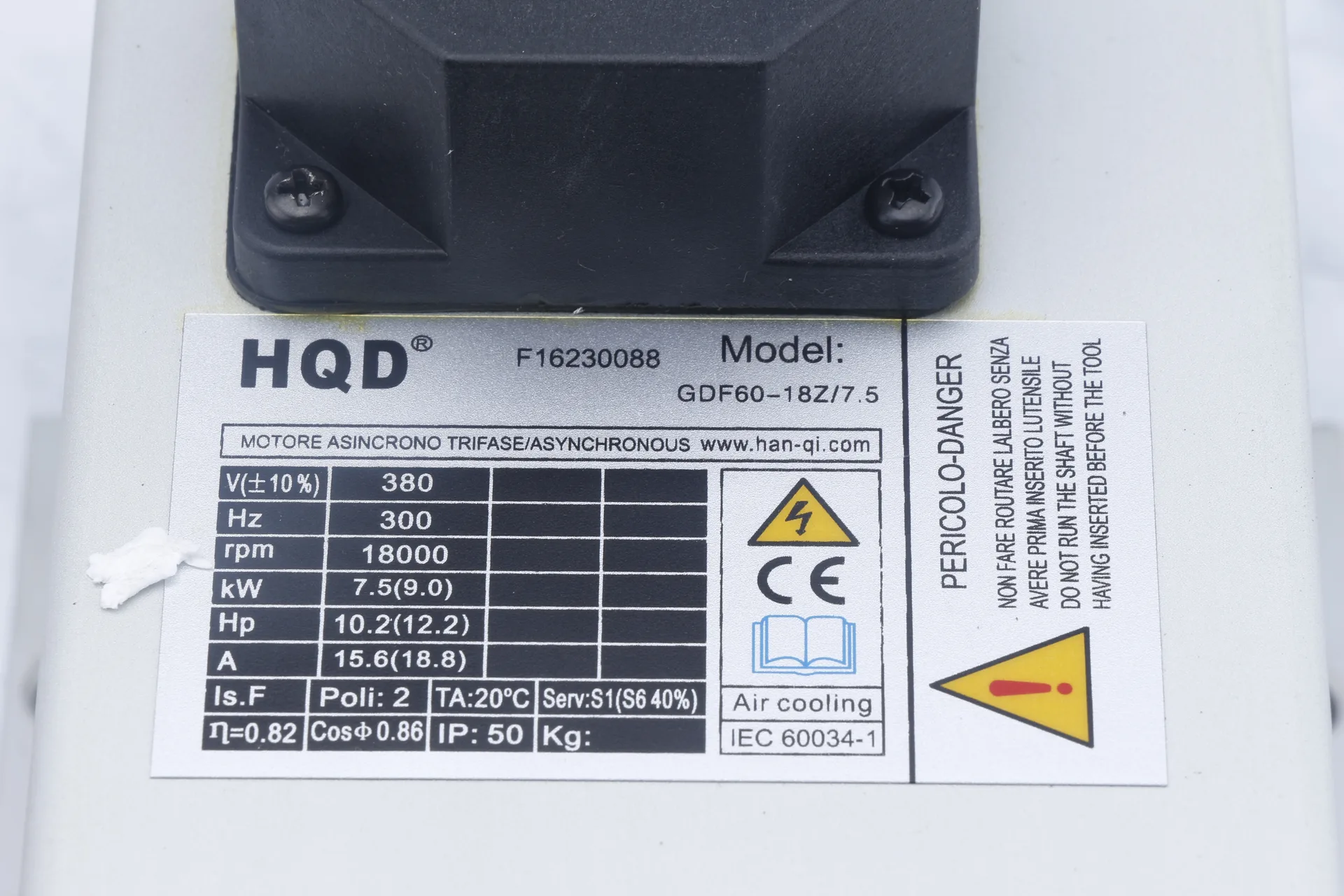

| Power | 7.5kw |
|---|---|
| Voltage | 220V/380V |
| Current | 26.0A/15.0A |
| Frequency | 300Hz |
| Rotational speed | 18000rpm |
| Tool Holder | ER32 |
| Number of pole | 2P |
| Weight | 16KG |

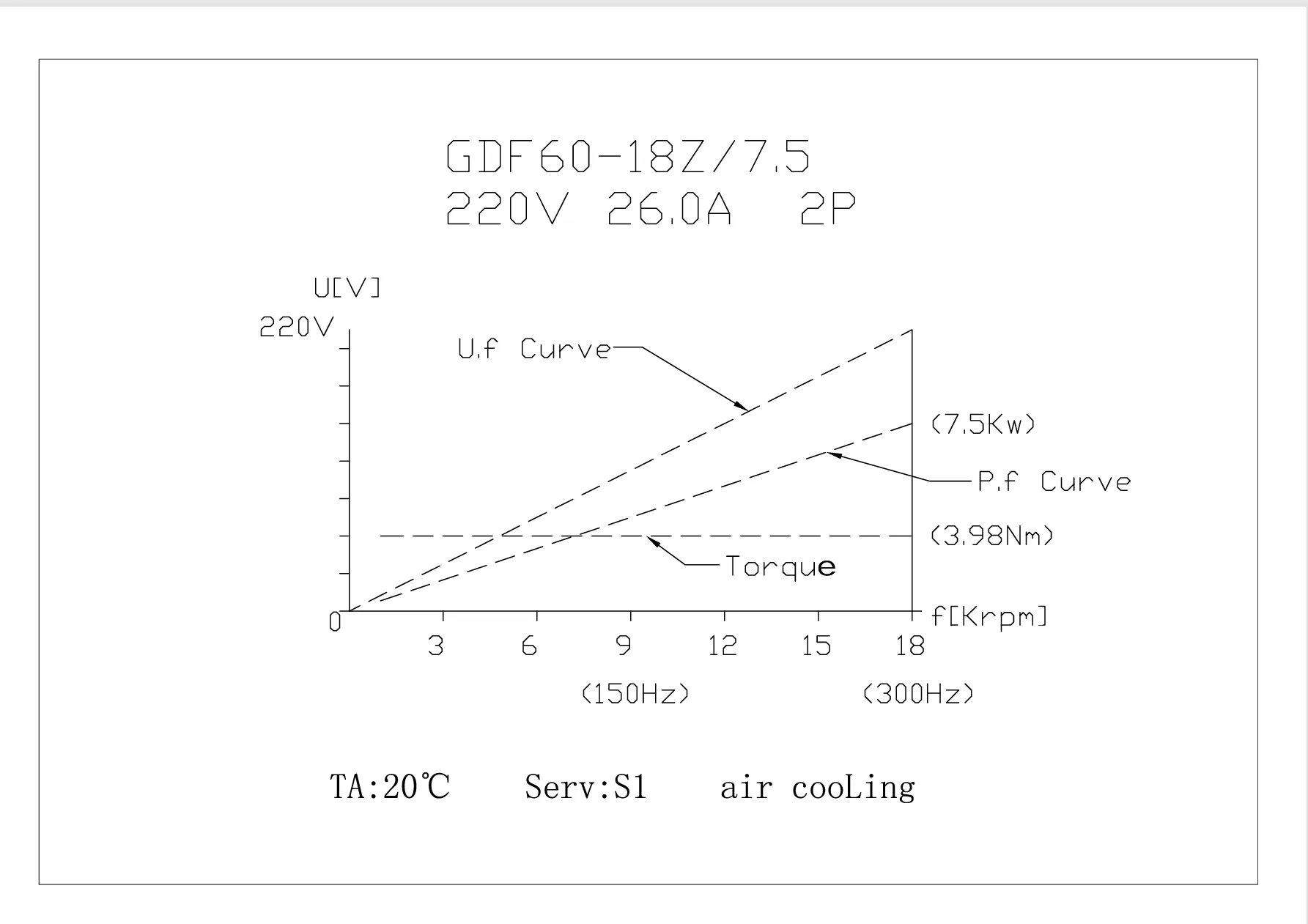

The HQD GDF60-18Z/7.5 is a 7.5 kW air-cooled spindle designed for CNC routing and woodworking. It operates at up to 18,000 rpm with a 2-pole motor, delivering 3.98 Nm of torque. Available in 220V and 380V versions, it features an ER32 collet accepting tool shanks from 3.175 mm to 20 mm. The integrated fan cooling system eliminates water-cooling maintenance, while P4-grade bearings ensure stable, low-vibration performance for demanding engraving and milling applications.
Product Details

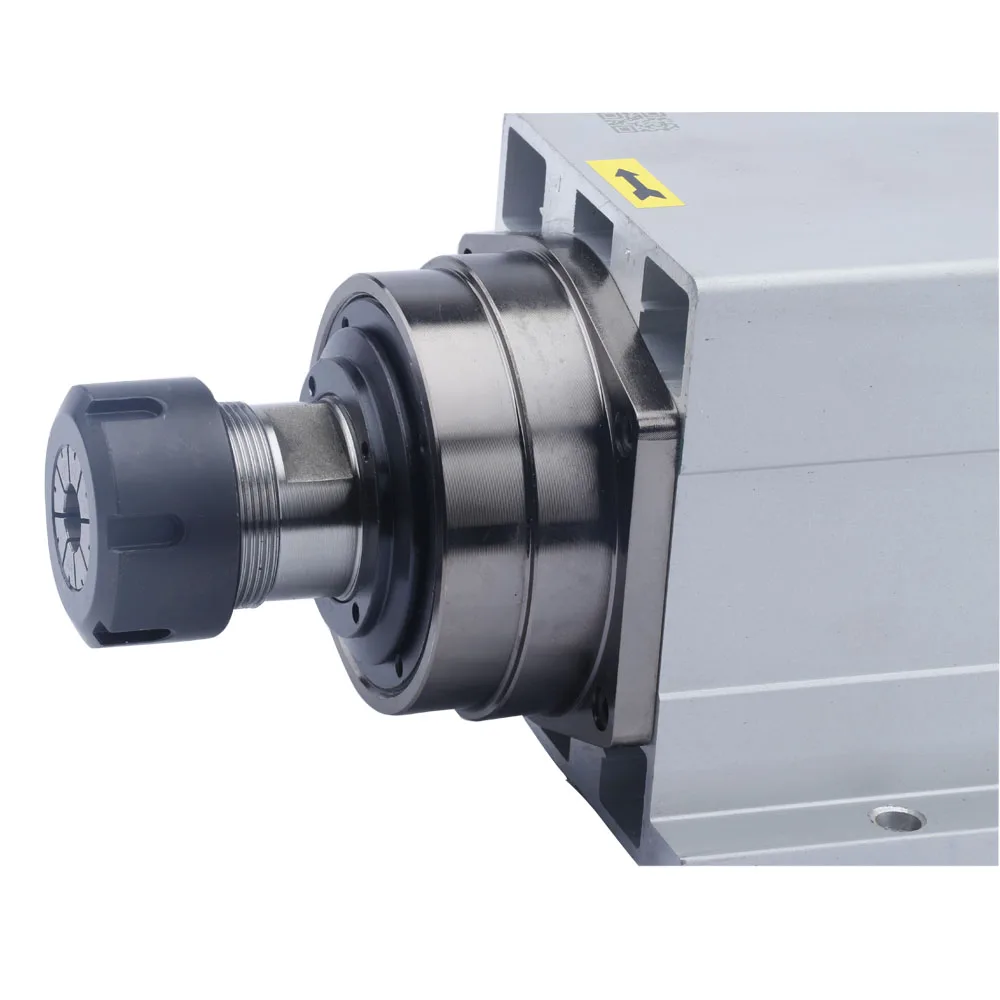

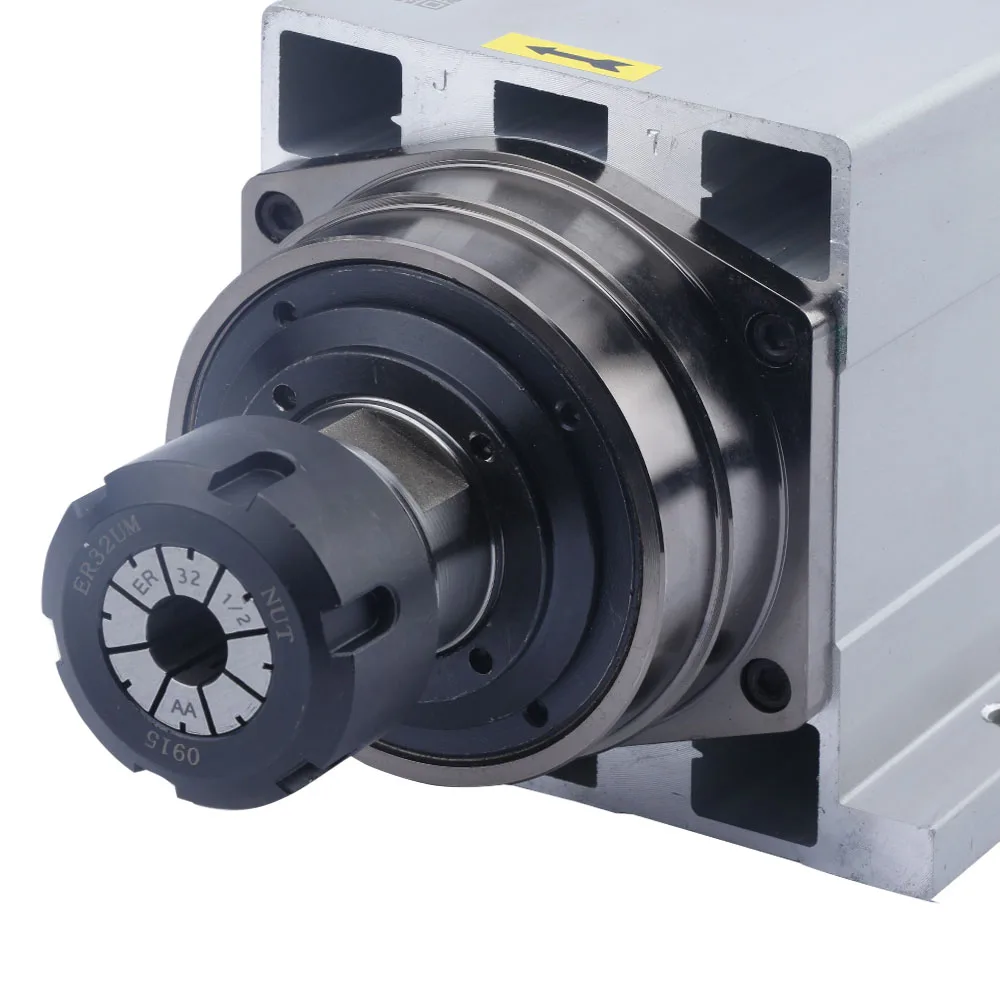

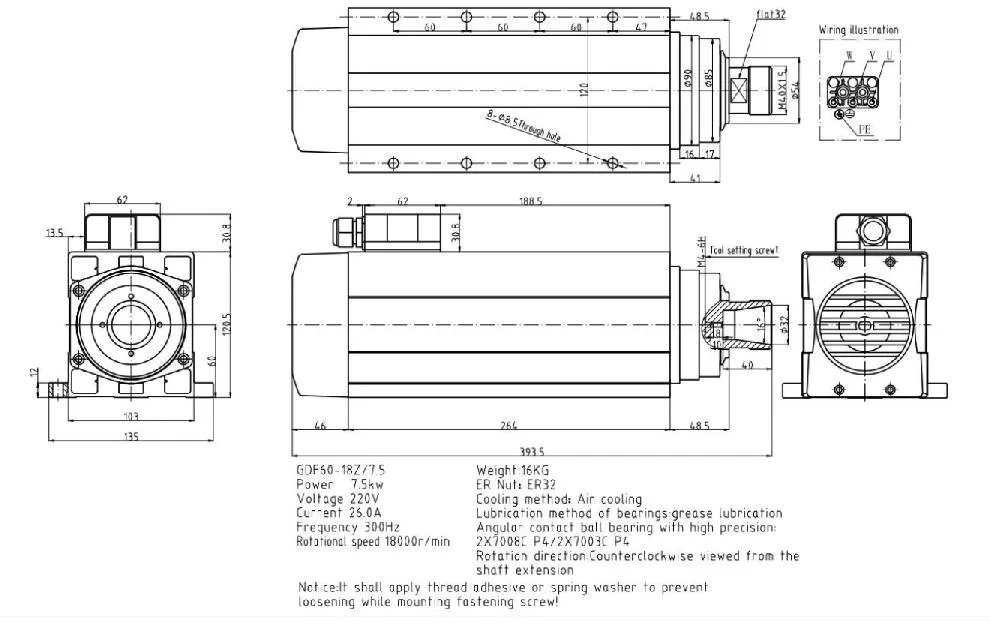

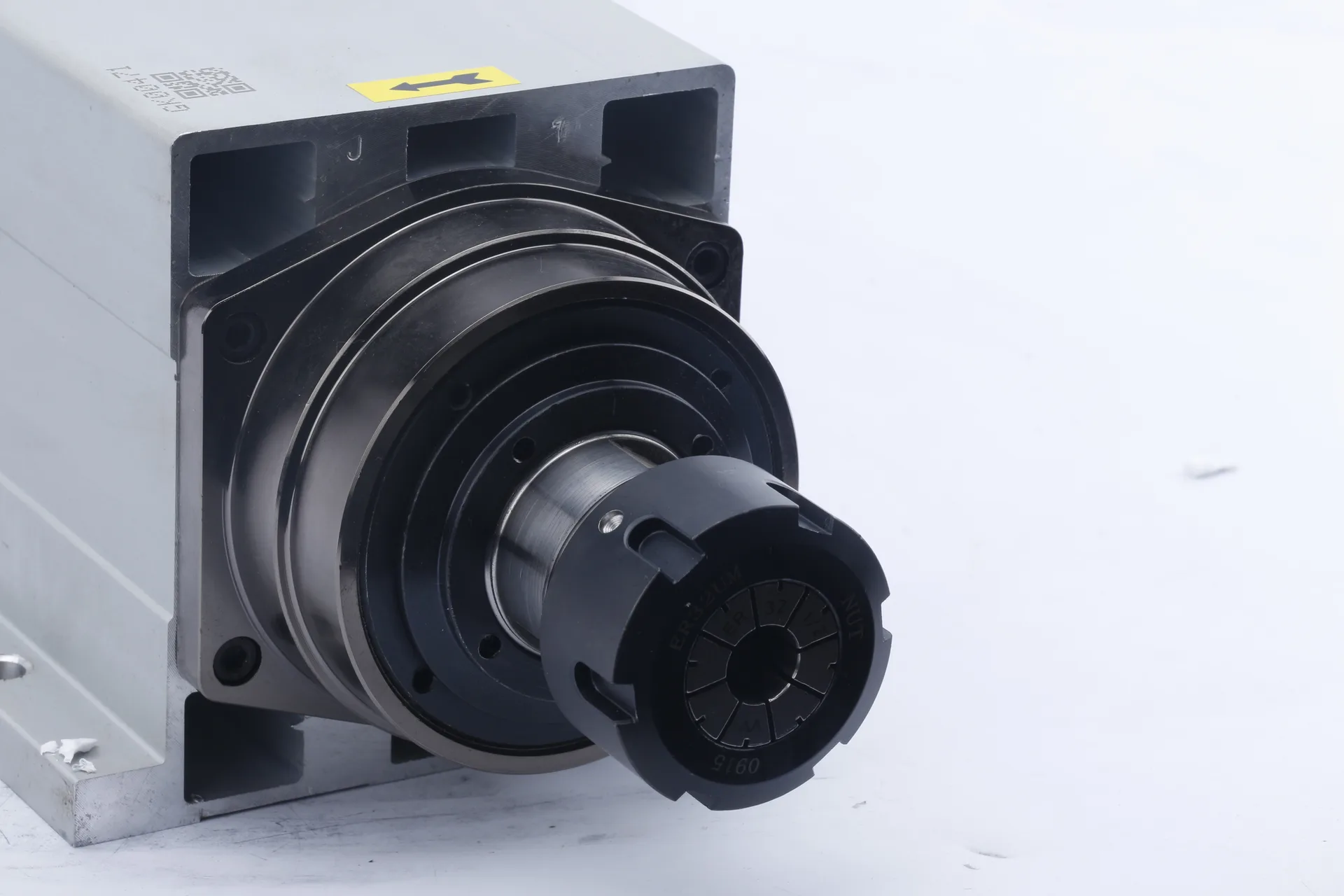

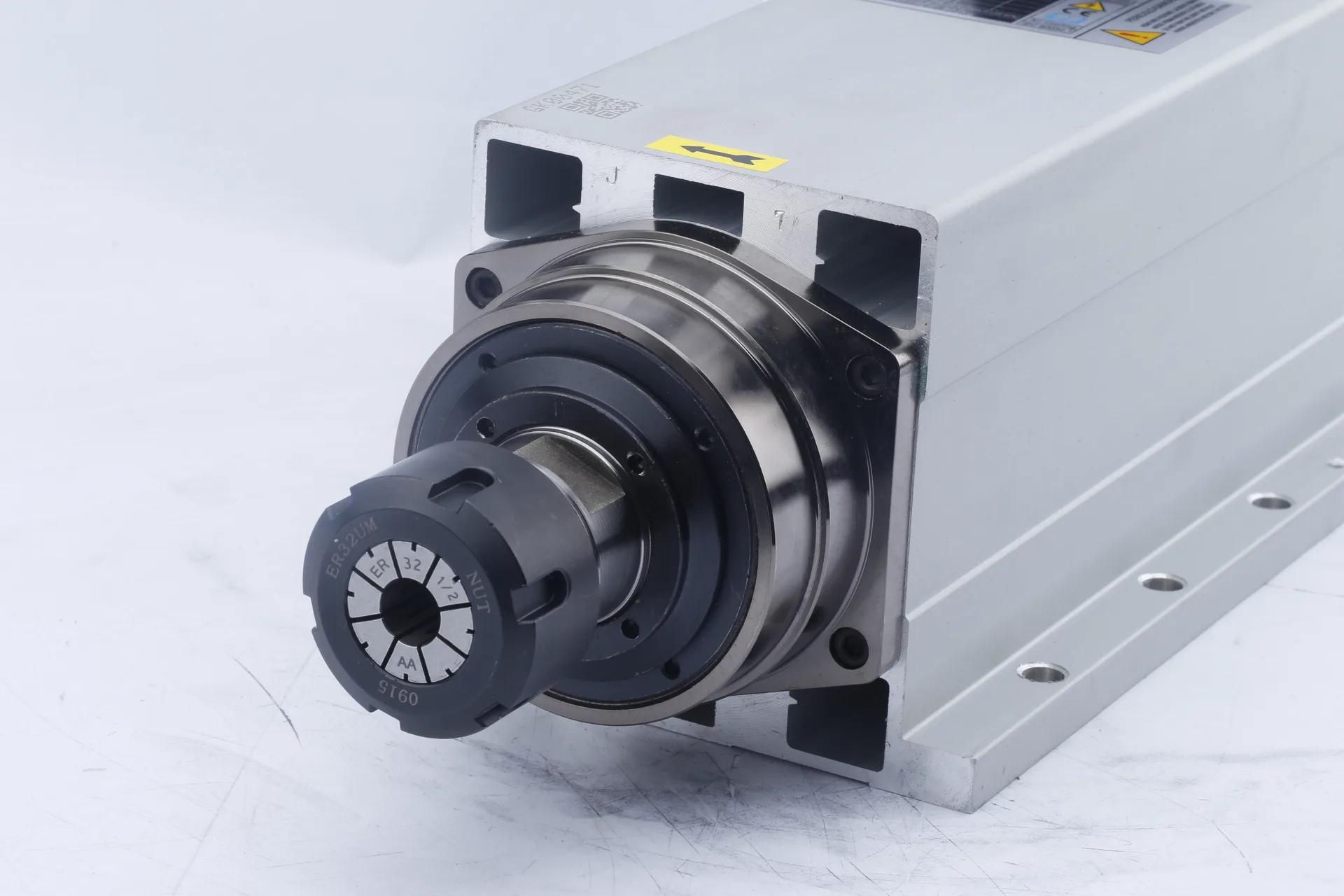

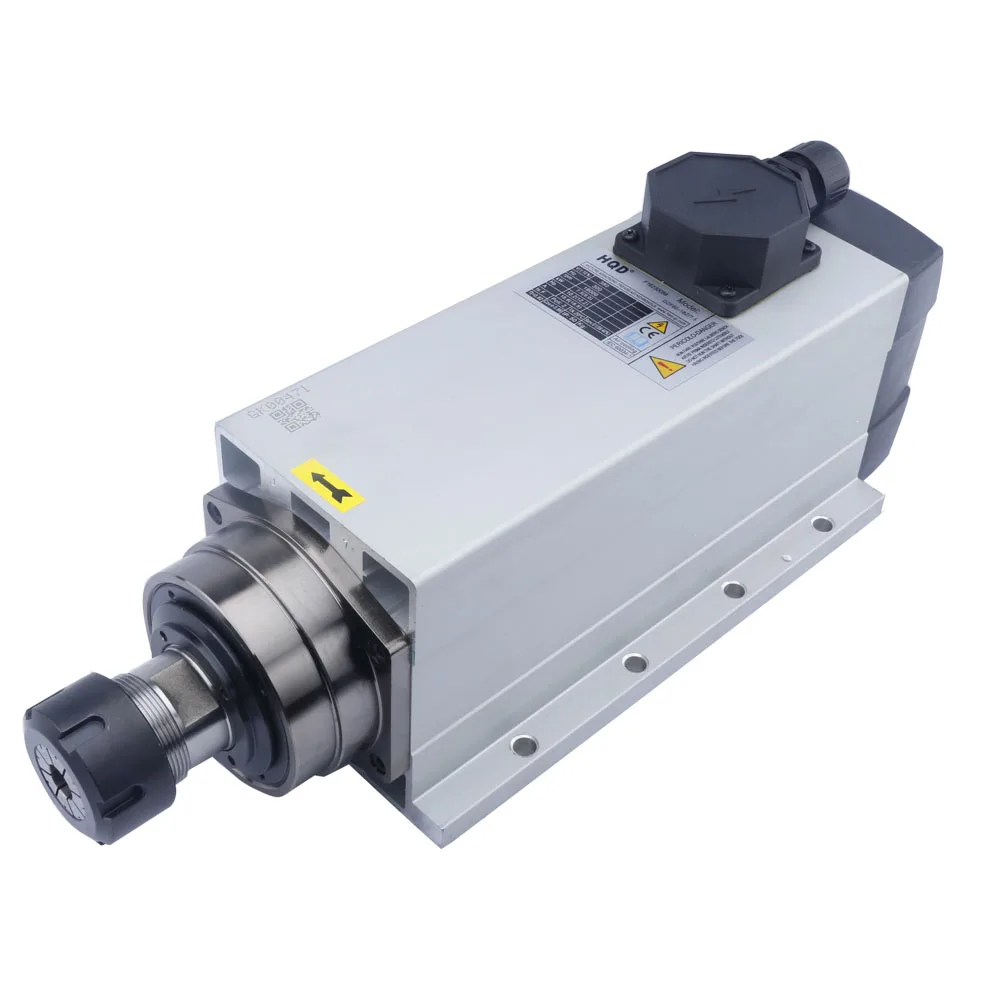

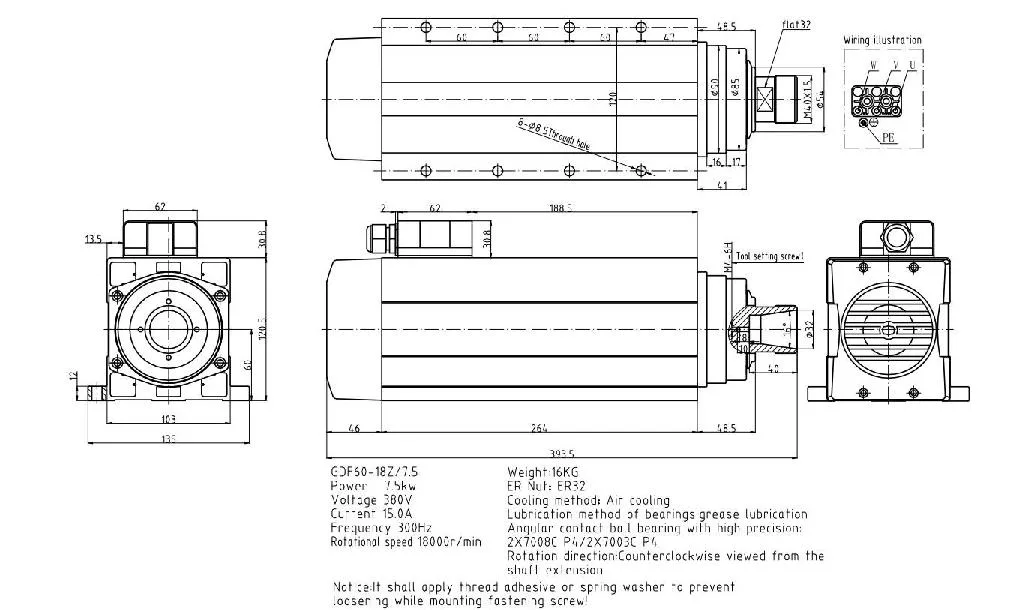

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDF60-18Z/7.5 is a 7.5 kW air-cooled spindle designed for CNC routing and woodworking. It operates at up to 18,000 rpm with a 2-pole motor, delivering 3.98 Nm of torque. Available in 220V and 380V versions, it features an ER32 collet accepting tool shanks from 3.175 mm to 20 mm. The integrated fan cooling system eliminates water-cooling maintenance, while P4-grade bearings ensure stable, low-vibration performance for demanding engraving and milling applications.
