GDK125-18-24Z 5.5kw

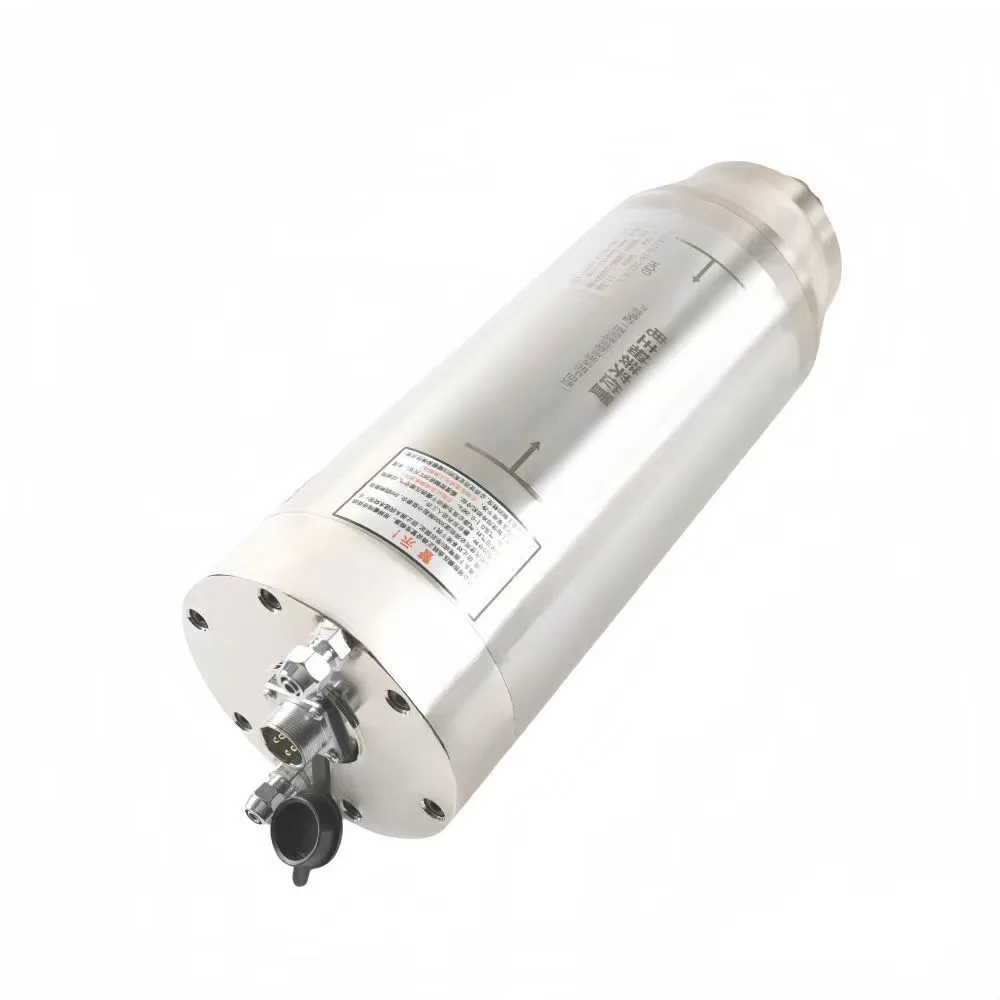

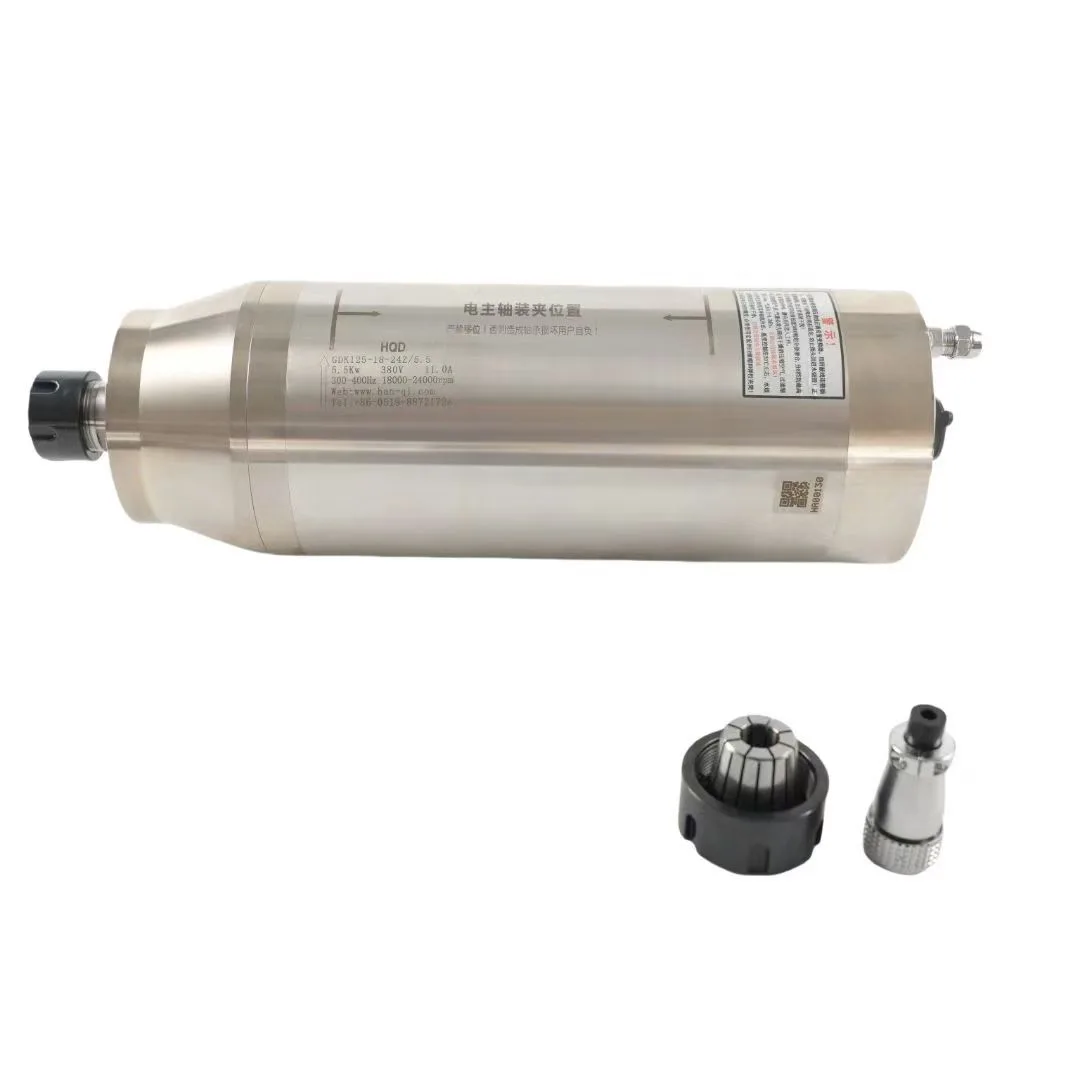

HQD GDK125-18-24Z/5.5kw Electric Spindle for Engraving and Milling
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDK125-18-24Z/5.5kw Electric Spindle for Engraving and Milling
- Availability
- In Stock / Made to Order
| Power | 5.5kw |
|---|---|
| Voltage | 220V/380V |
| Current | 19A/11A |
| Frequency | 300-400Hz |
| Rotational speed | 18000-24000rpm |
| Tool Holder | ER25 |
| Number of pole | Not specified |
| Weight | 23KG |
The HQD GDK125-18Z/5.5 is a 5.5 kW water-cooled spindle designed for milling and engraving of non-ferrous metals, stone, plastics, and wood. It delivers a constant torque of 2.92 Nm up to 18,000 rpm and maintains 5.5 kW rated power between 18,000 and 24,000 rpm. Equipped with an ER25 collet accepting tools from 3.175 mm to 16 mm, the spindle features an efficient water-cooling system and a front air-seal interface to prevent dust and coolant ingress, ensuring stable performance in demanding machining environments.
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDK125-18Z/5.5 is a 5.5 kW water-cooled spindle designed for milling and engraving of non-ferrous metals, stone, plastics, and wood. It delivers a constant torque of 2.92 Nm up to 18,000 rpm and maintains 5.5 kW rated power between 18,000 and 24,000 rpm. Equipped with an ER25 collet accepting tools from 3.175 mm to 16 mm, the spindle features an efficient water-cooling system and a front air-seal interface to prevent dust and coolant ingress, ensuring stable performance in demanding machining environments.
