GDZ-23 2.2KW
HQD GDZ-23 Advertising Woodworking Spindle
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDZ-23 Advertising Woodworking Spindle
- Availability
- In Stock / Made to Order

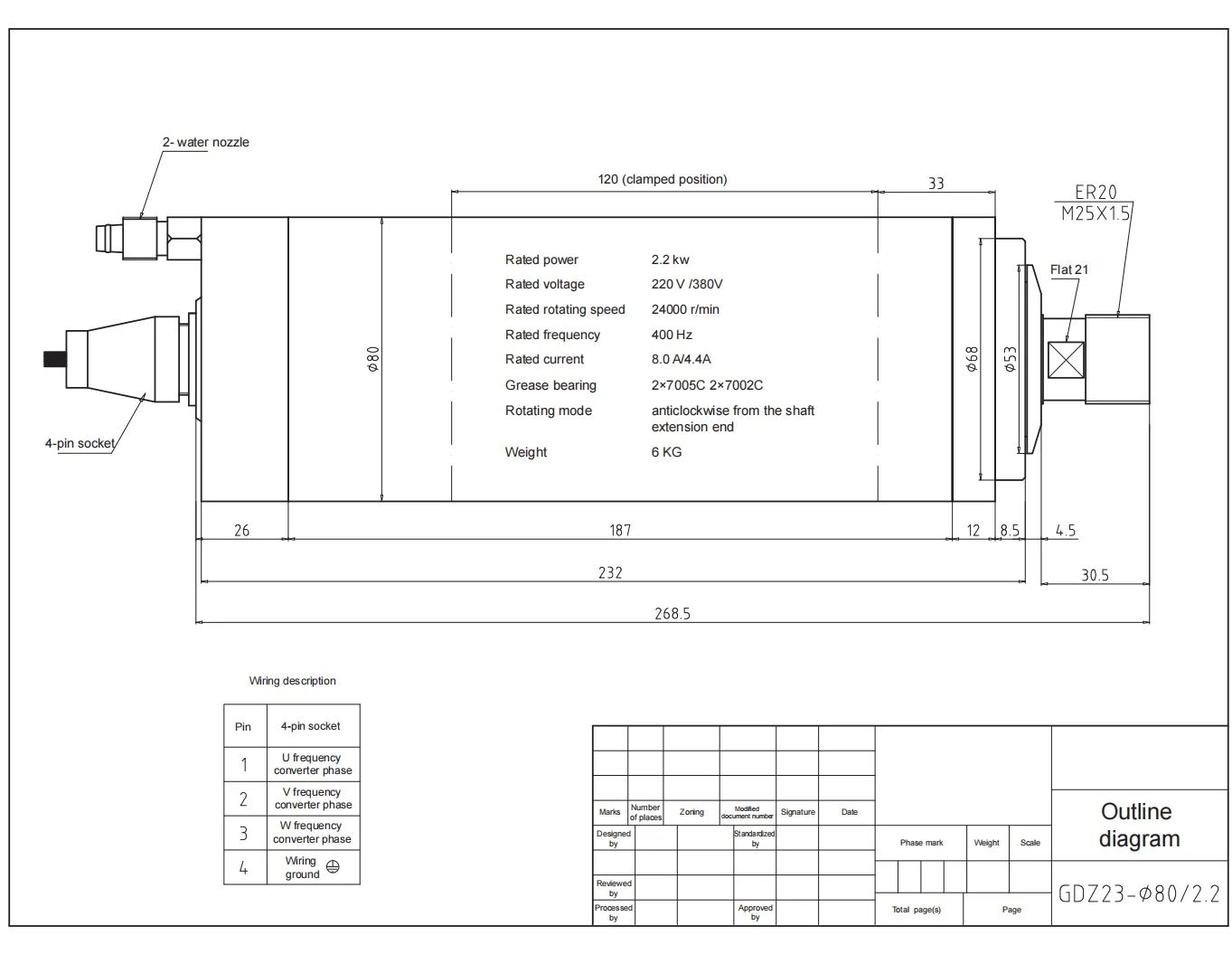

| Power | 2.2kw |
|---|---|
| Voltage | 220V/380V |
| Current | 8.0A/4.4A |
| Frequency | 400Hz |
| Rotational speed | 24000rpm |
| Tool Holder | ER20 |
| Number of pole | 2P |
| Weight | 6KG |

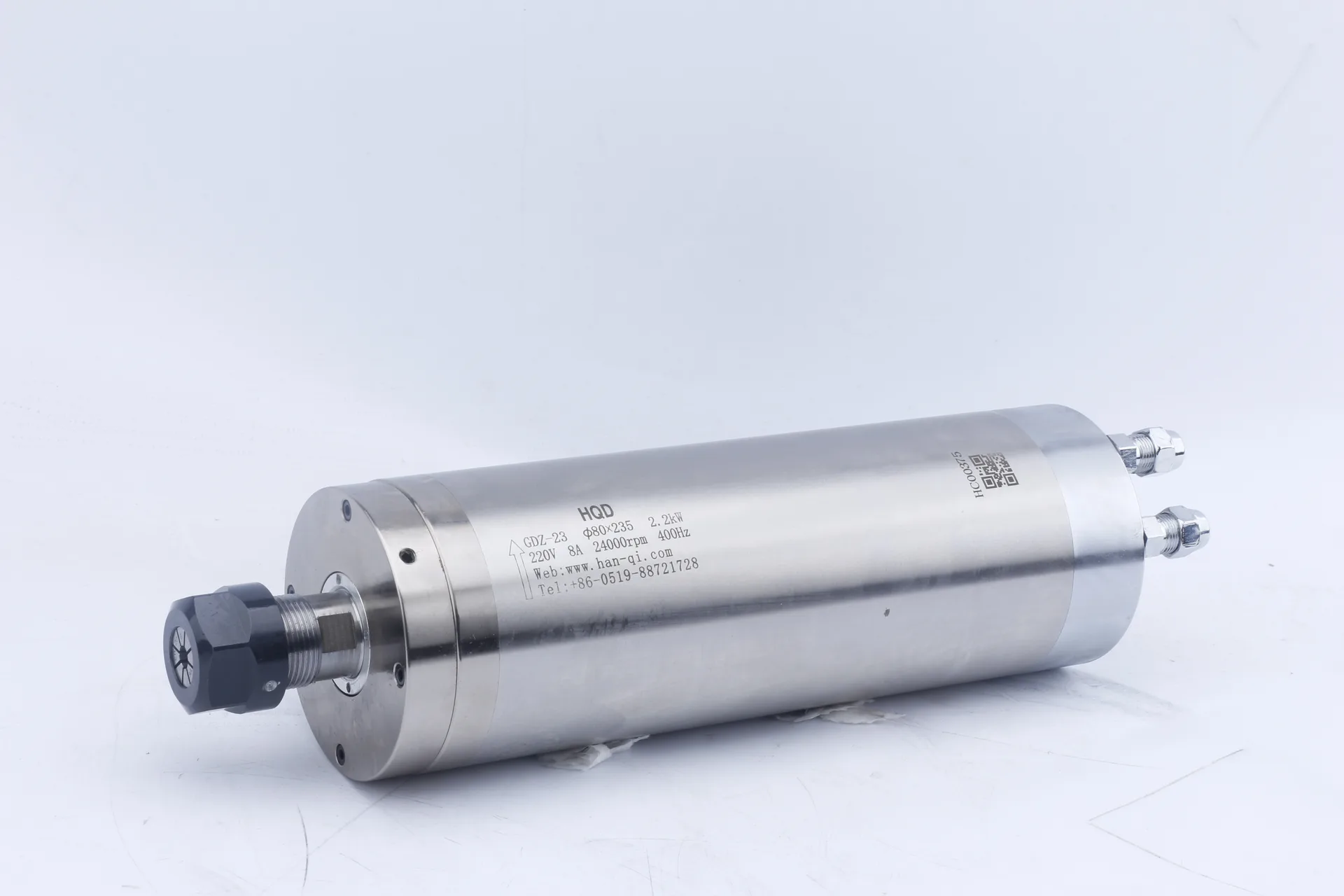

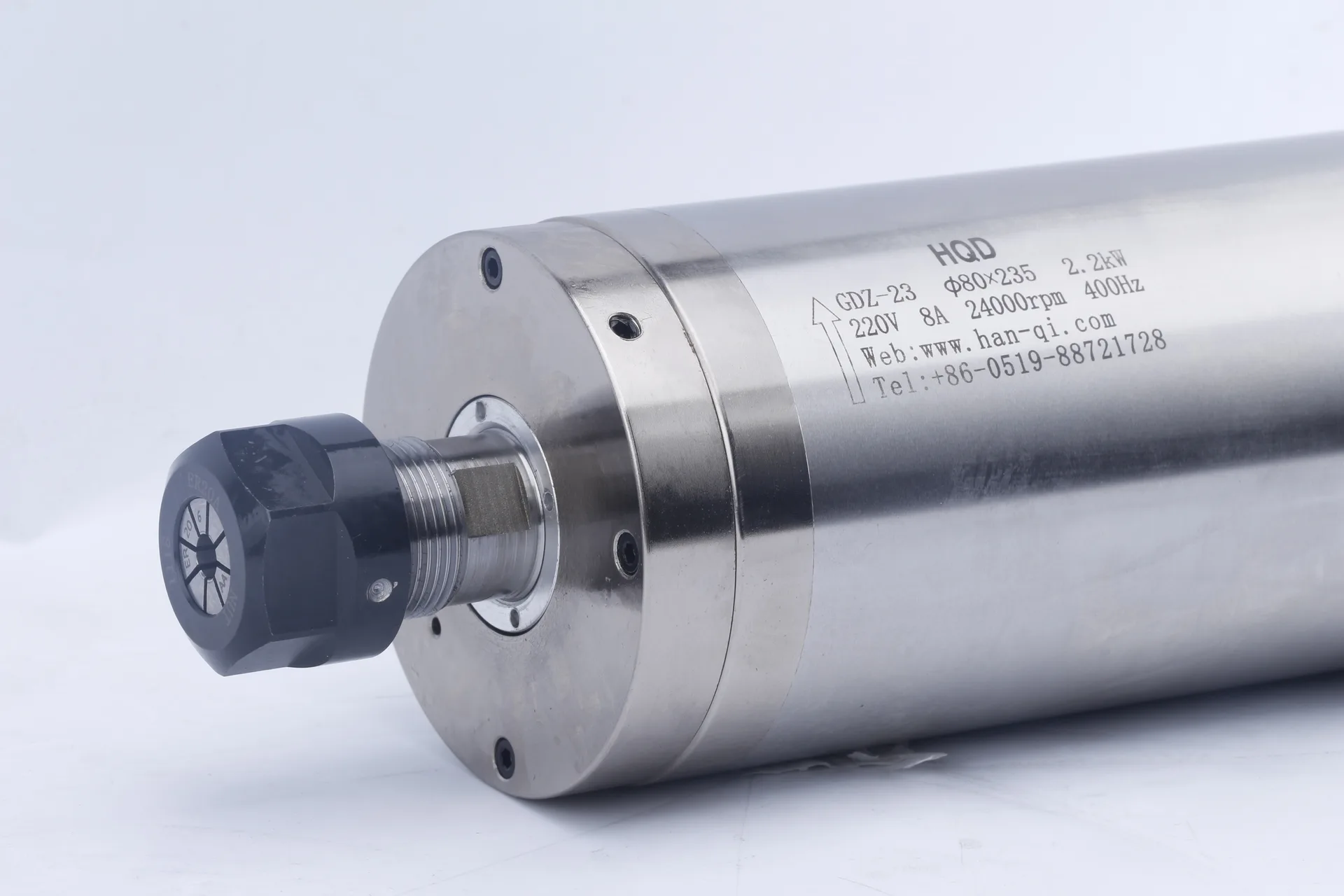

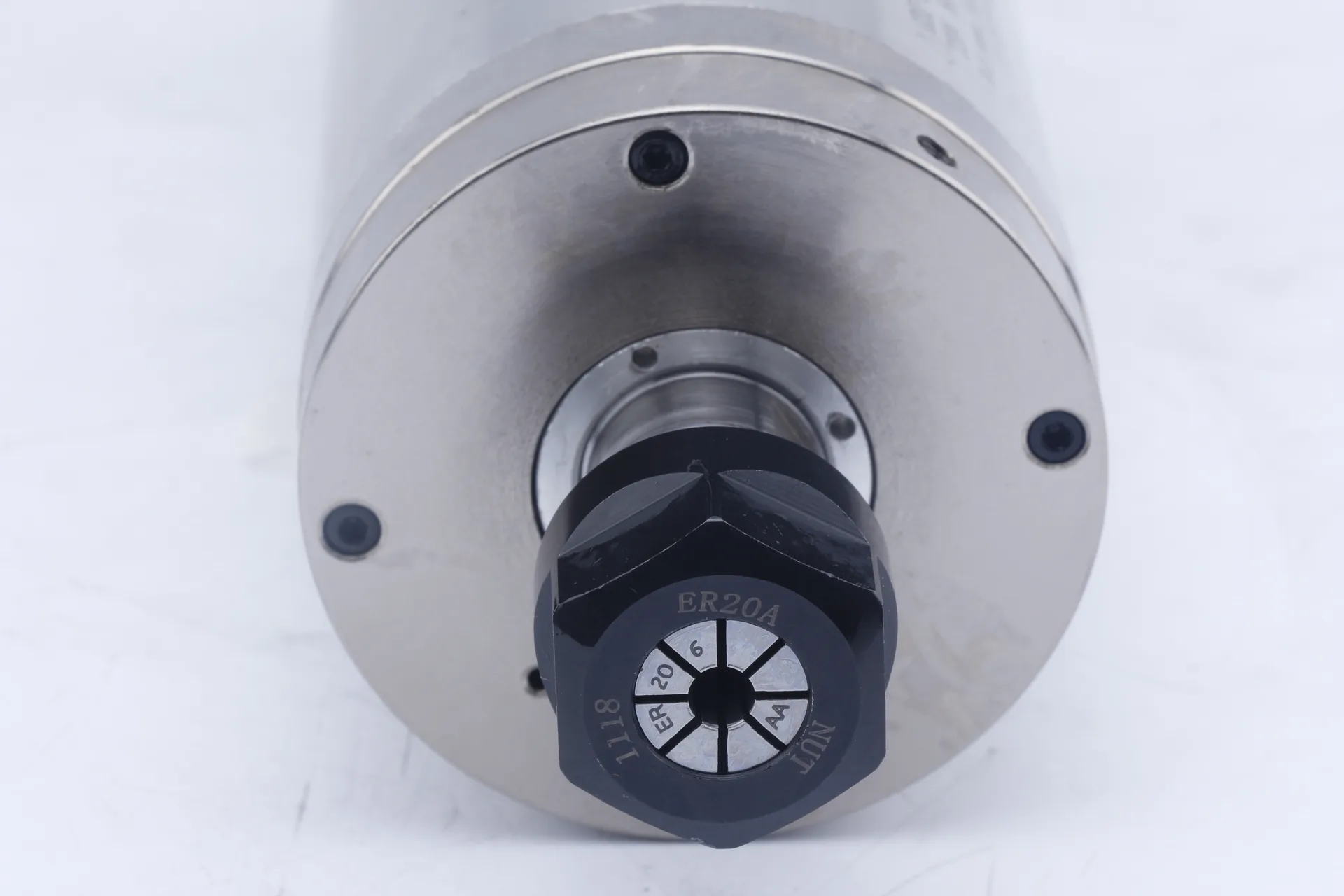

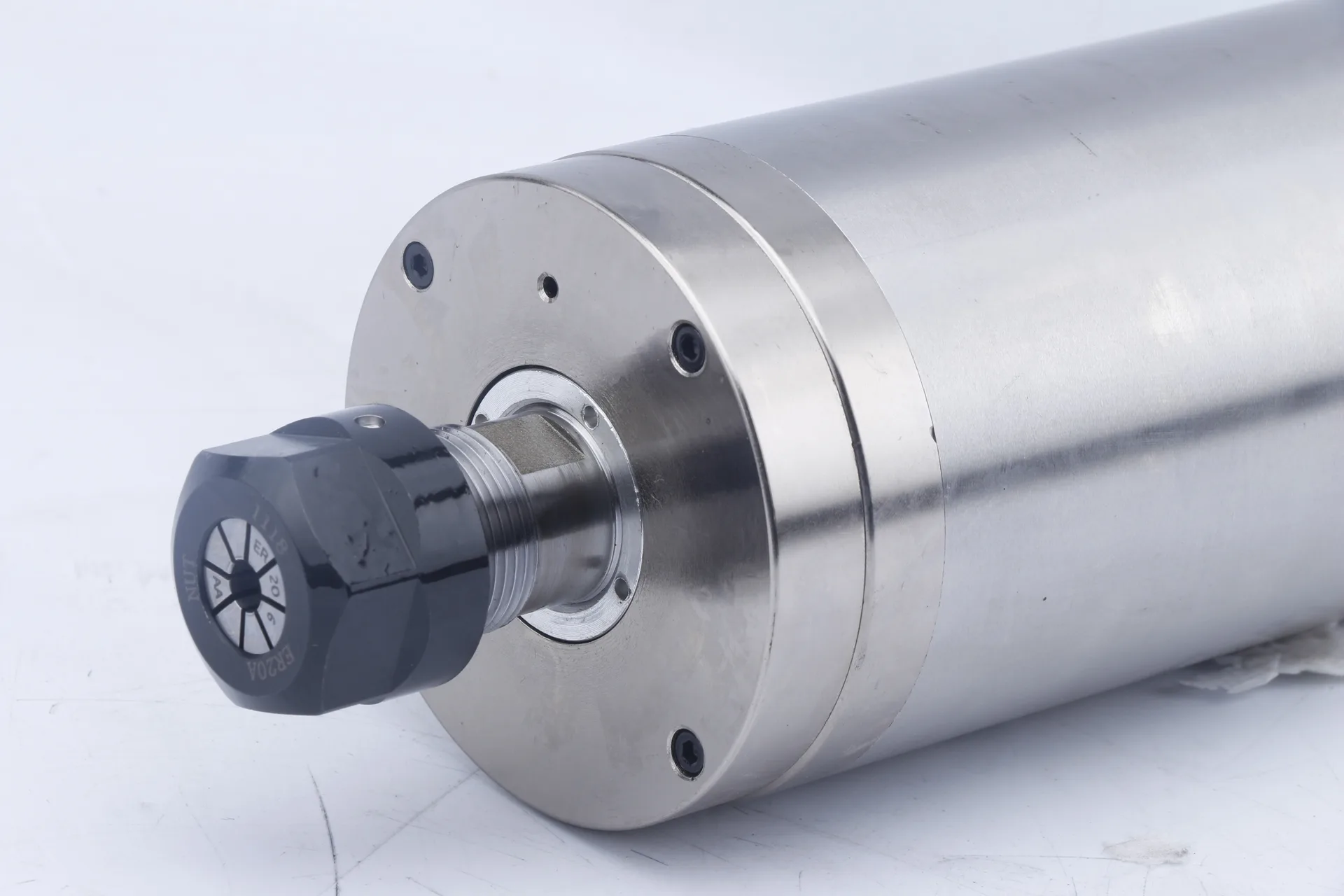

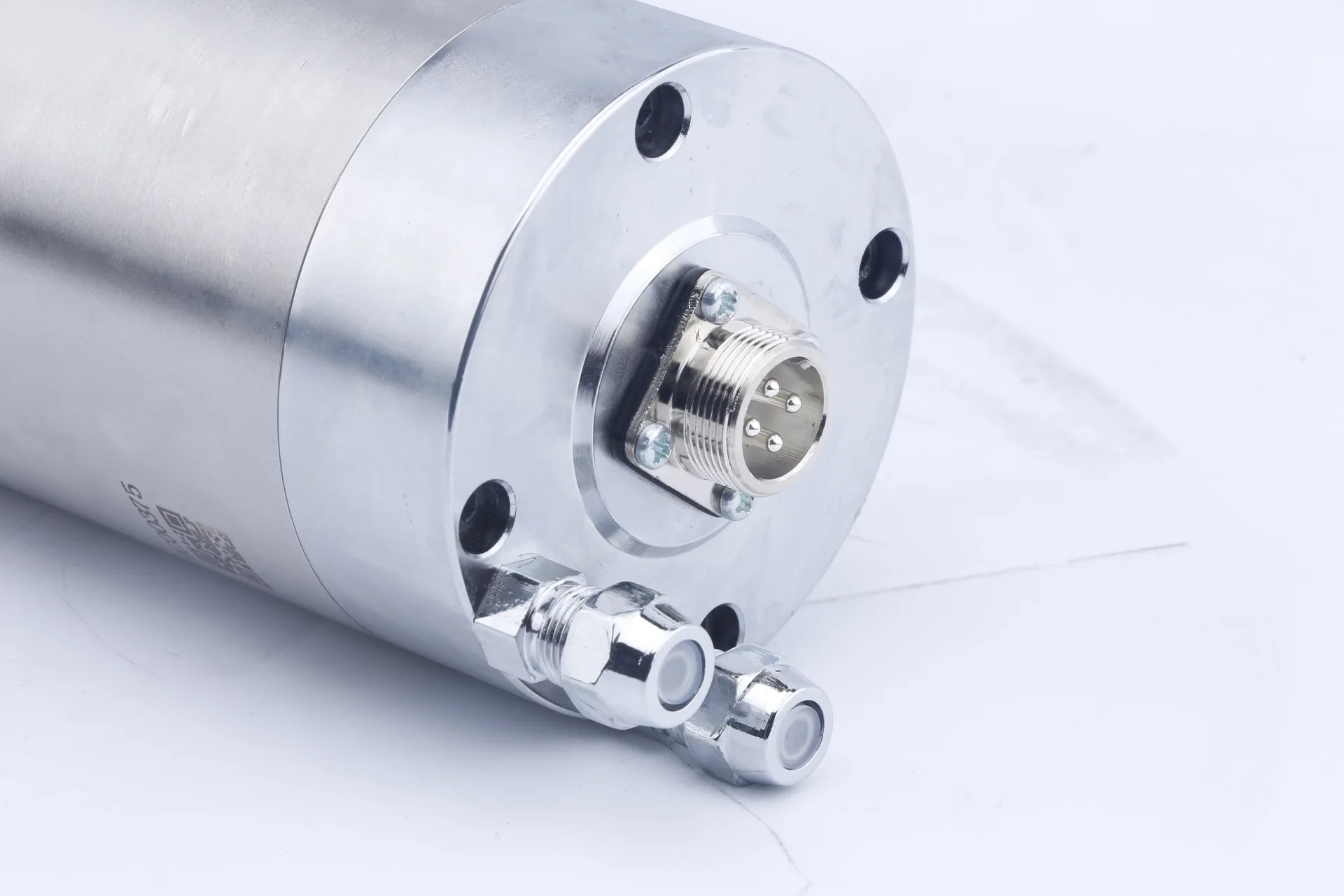

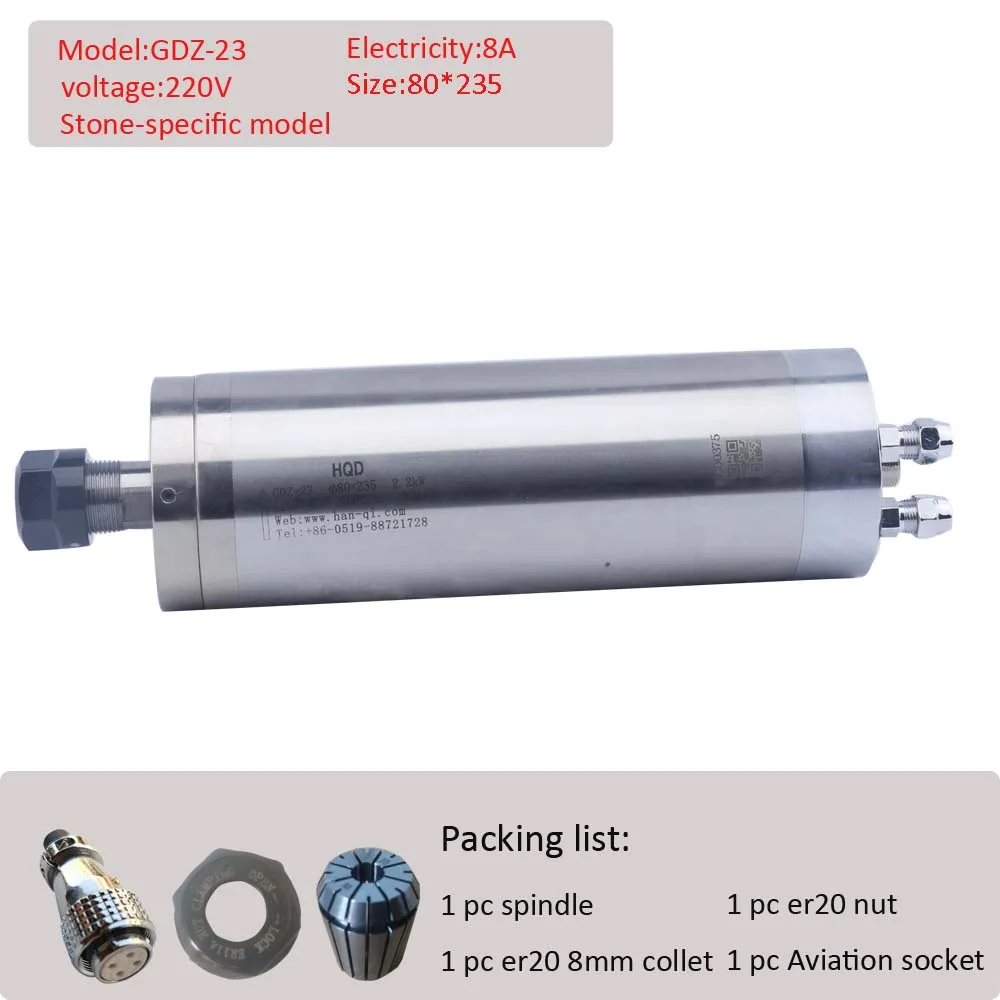

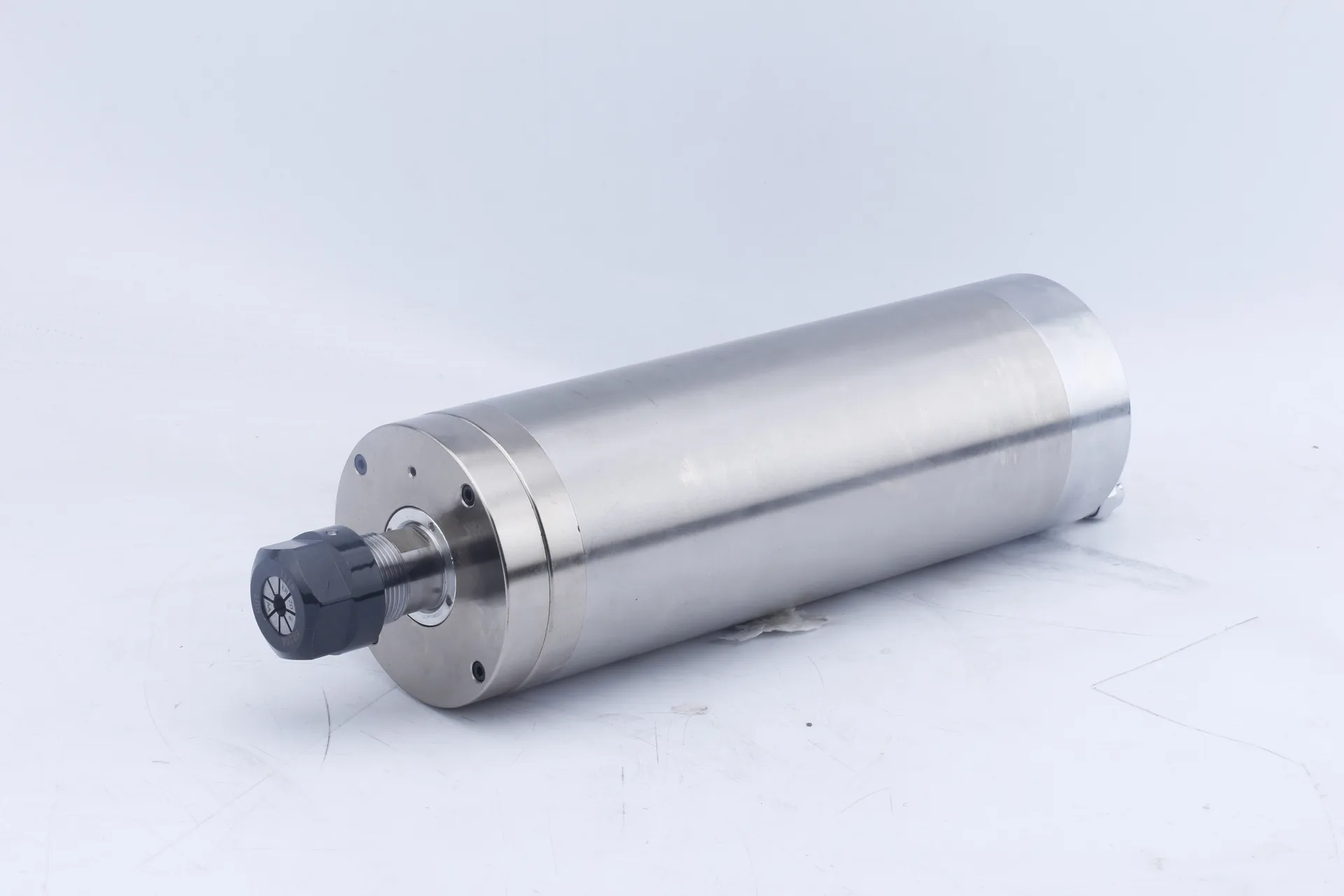

The HQD GDZ-23 is a 2.2 kW water-cooled spindle designed for CNC woodworking, engraving, and light milling. It operates at up to 24,000 rpm with a constant torque of 0.88 Nm and is available in 220V and 380V versions. Equipped with an ER20 collet, it accepts tool shanks up to 13 mm. The water-cooling system ensures efficient heat dissipation for continuous operation, while P4-grade bearings provide stable, low-vibration performance on wood, acrylic, and plastics.
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDZ-23 is a 2.2 kW water-cooled spindle designed for CNC woodworking, engraving, and light milling. It operates at up to 24,000 rpm with a constant torque of 0.88 Nm and is available in 220V and 380V versions. Equipped with an ER20 collet, it accepts tool shanks up to 13 mm. The water-cooling system ensures efficient heat dissipation for continuous operation, while P4-grade bearings provide stable, low-vibration performance on wood, acrylic, and plastics.
