GDZ-24-2 3.2kw
HQD GDZ-24-2 Advertising Woodworking Spindle
- Brand
- HQD Air-cooled Spindles
- English Name
- HQD GDZ-24-2 Advertising Woodworking Spindle
- Availability
- In Stock / Made to Order
| Power | 3.2kw |
|---|---|
| Voltage | 220V/380V |
| Current | 12.0A/7.0A |
| Frequency | 400Hz |
| Rotational speed | 24000rpm |
| Tool Holder | ER20 |
| Number of pole | 2P |
| Weight | 12.0KG |

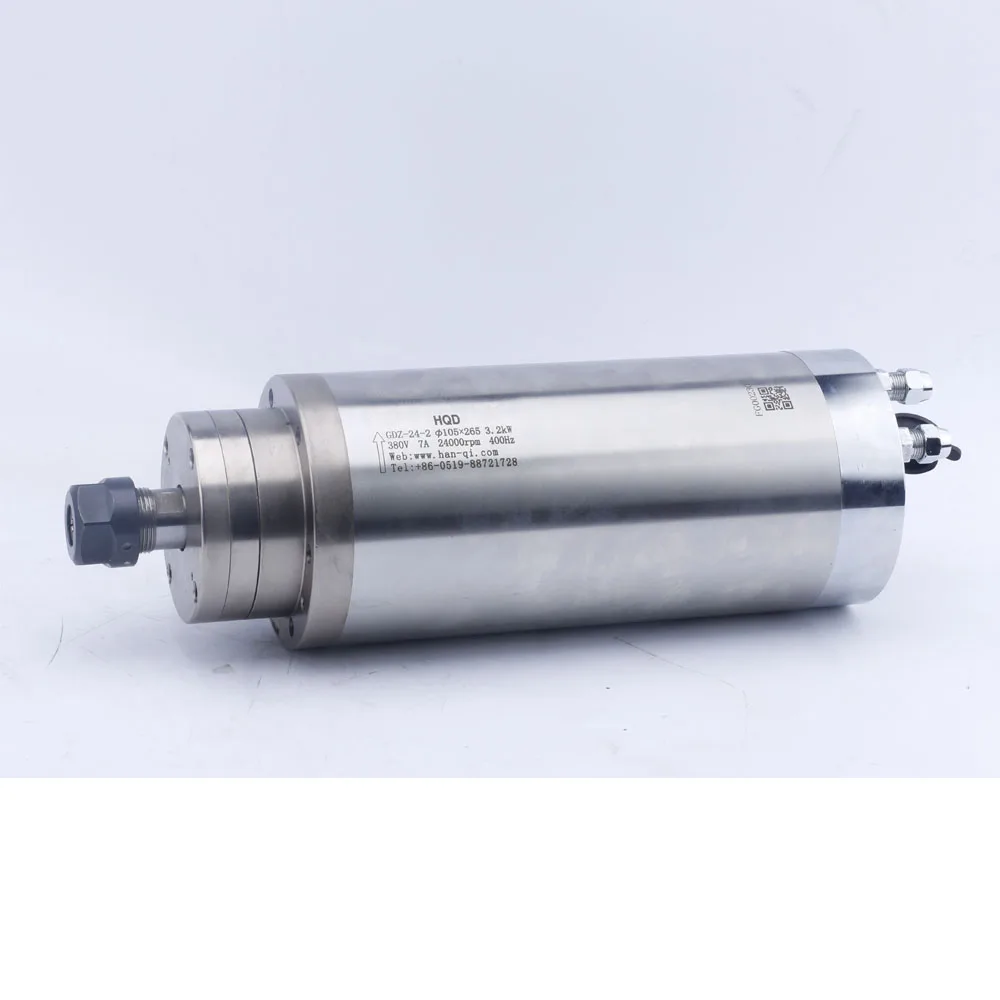

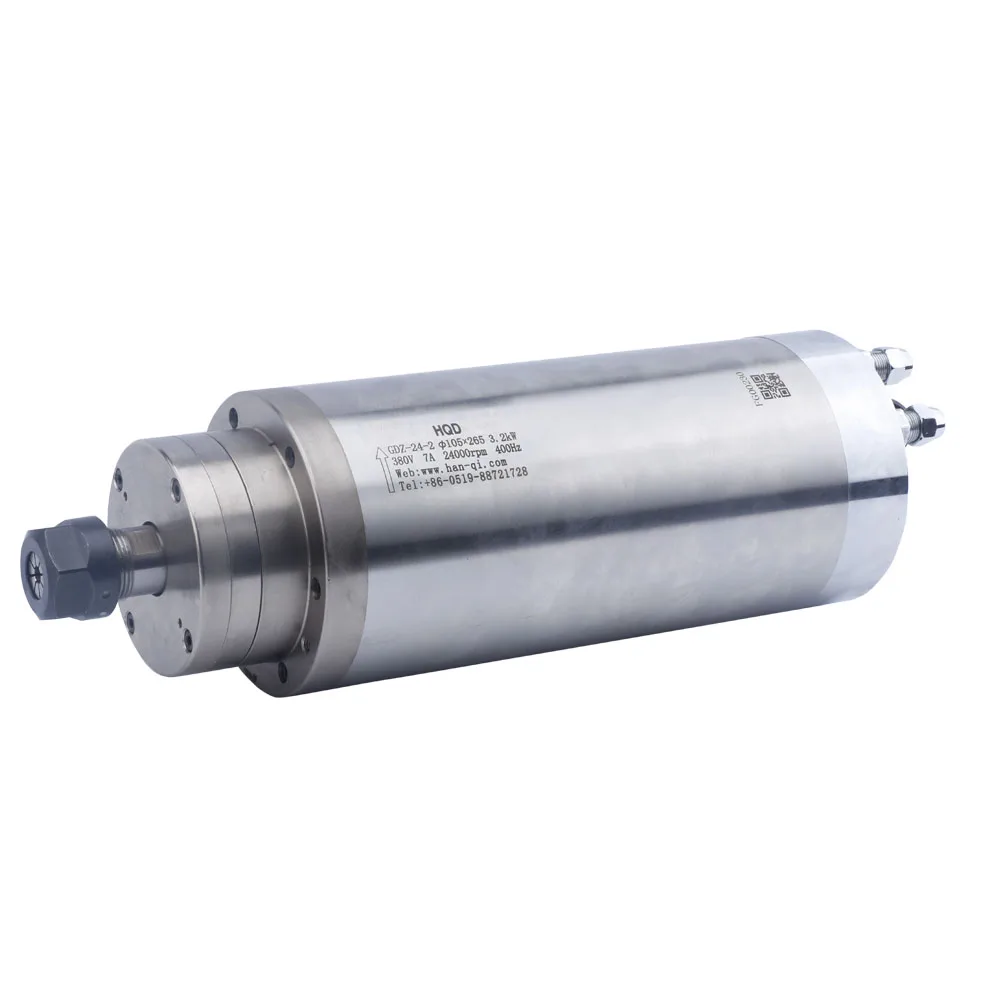

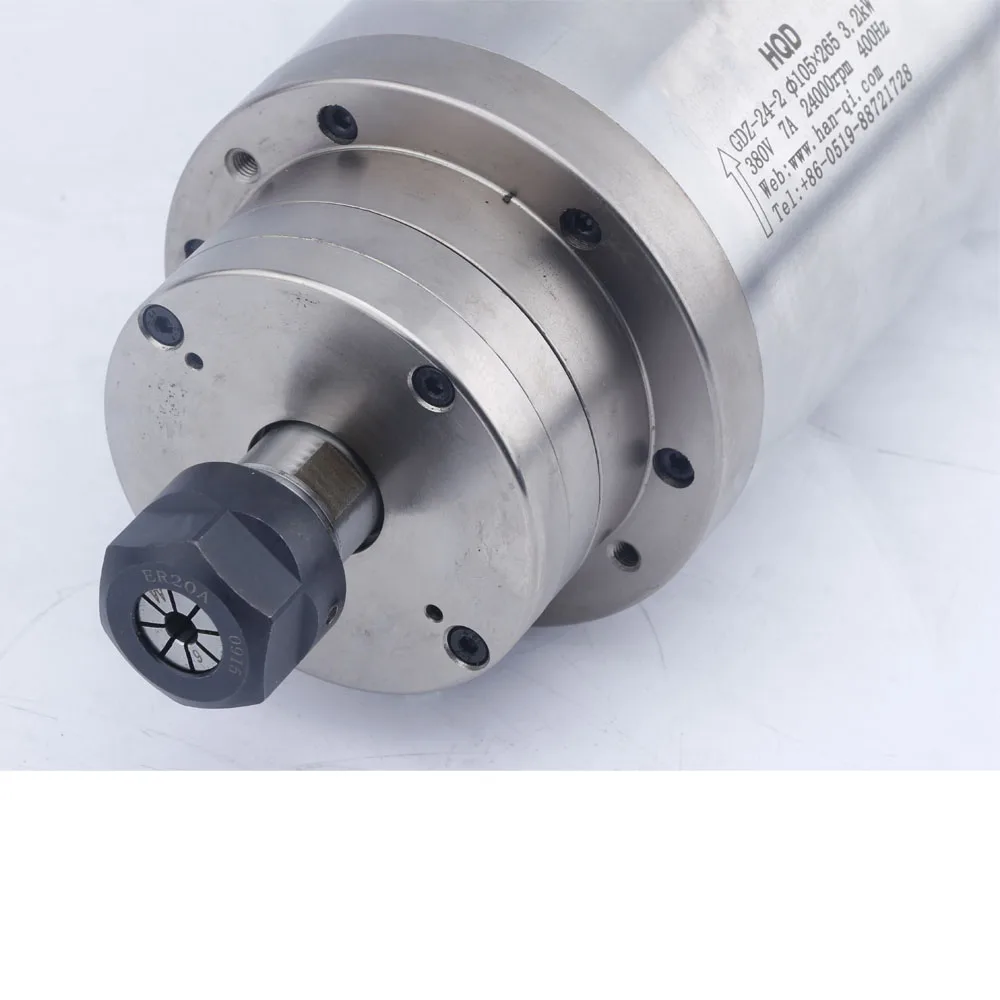

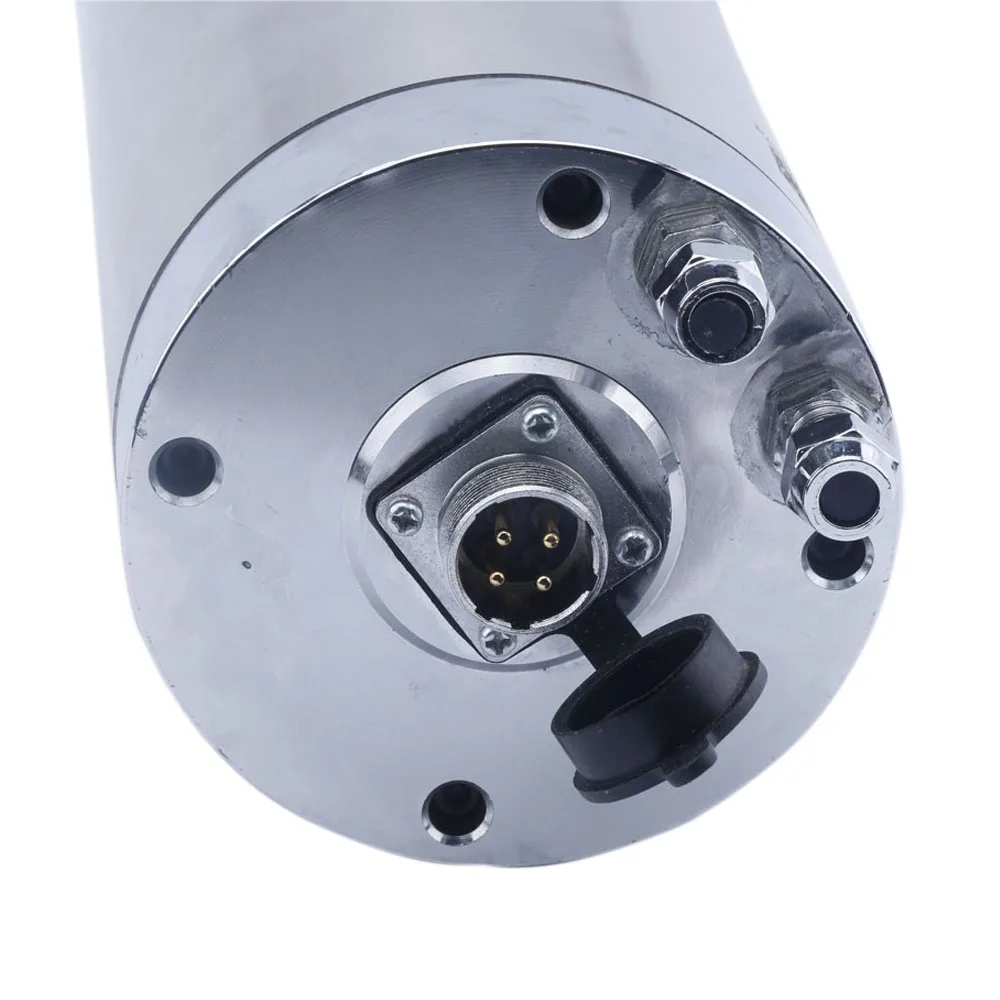

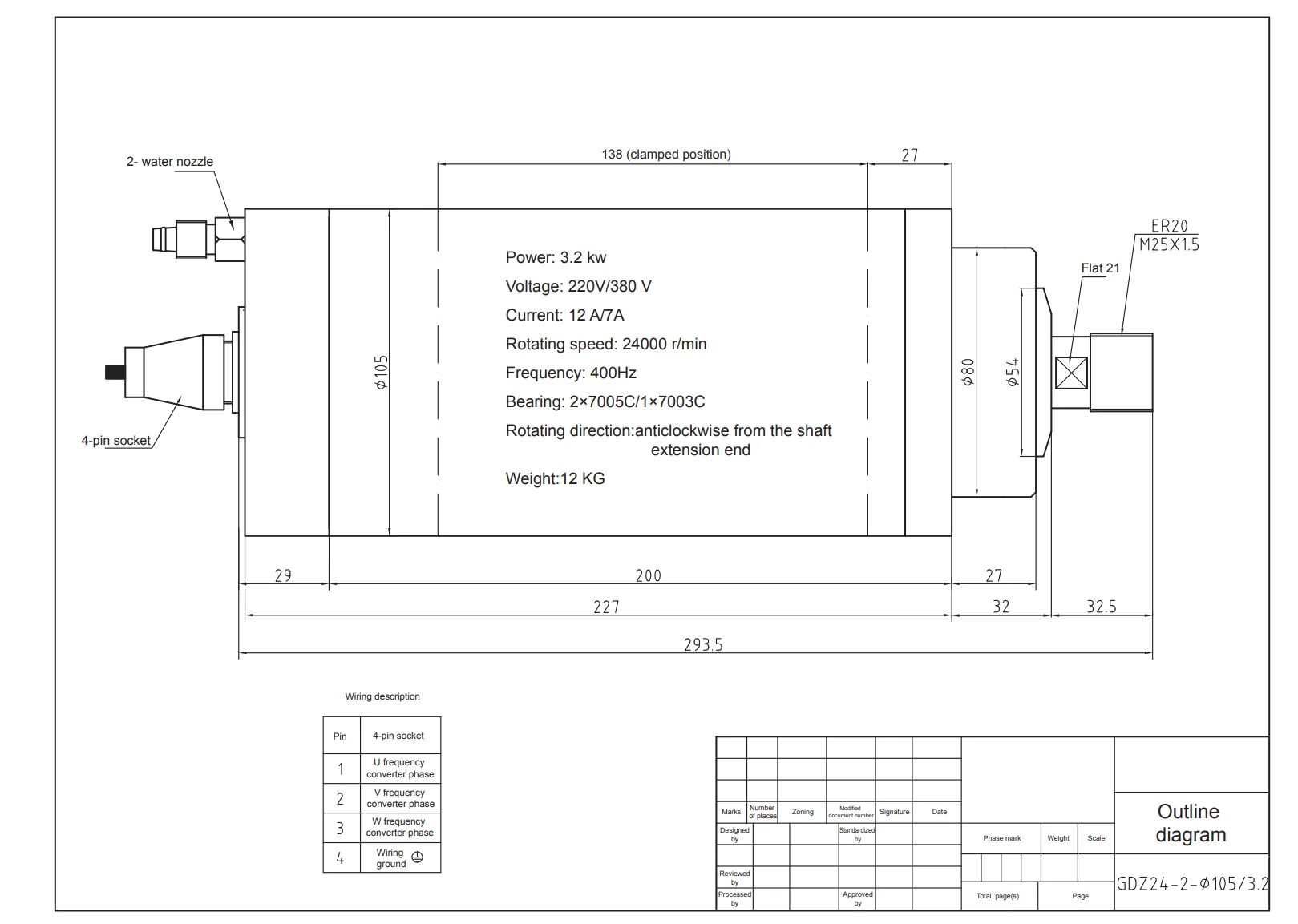

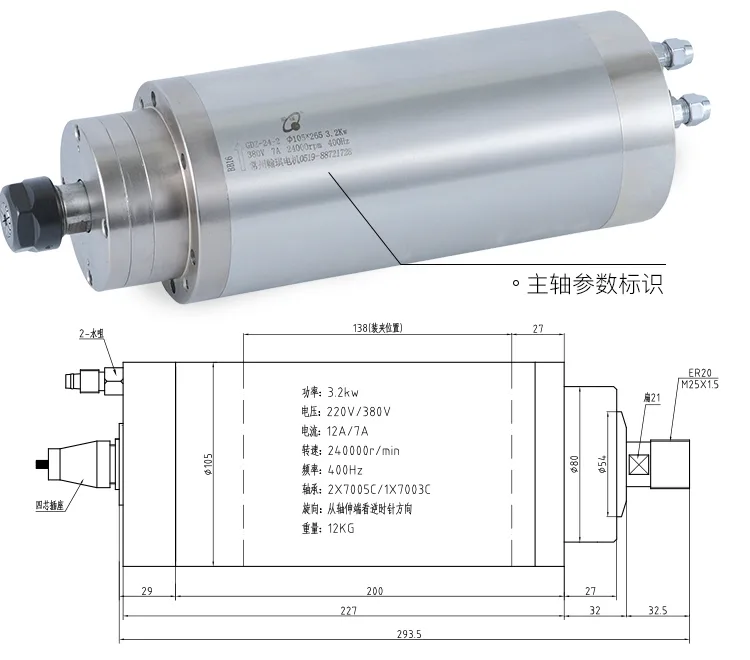

The HQD GDZ-24-2 is a 3.2 kW water-cooled spindle designed for CNC milling and engraving of wood, MDF, plastics, acrylic, and soft metals like aluminum and brass. It operates at up to 24,000 rpm with a constant torque of 1.27 Nm and is available in 220V and 380V versions. Equipped with an ER20 collet, it accepts tool shanks up to 13 mm. Its 105 mm diameter housing provides improved rigidity and heat dissipation compared to the 100 mm GDZ-24-1B model, while the water-cooling system ensures stable performance during continuous operation.
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The HQD GDZ-24-2 is a 3.2 kW water-cooled spindle designed for CNC milling and engraving of wood, MDF, plastics, acrylic, and soft metals like aluminum and brass. It operates at up to 24,000 rpm with a constant torque of 1.27 Nm and is available in 220V and 380V versions. Equipped with an ER20 collet, it accepts tool shanks up to 13 mm. Its 105 mm diameter housing provides improved rigidity and heat dissipation compared to the 100 mm GDZ-24-1B model, while the water-cooling system ensures stable performance during continuous operation.
