GDF46-18Z/2.2

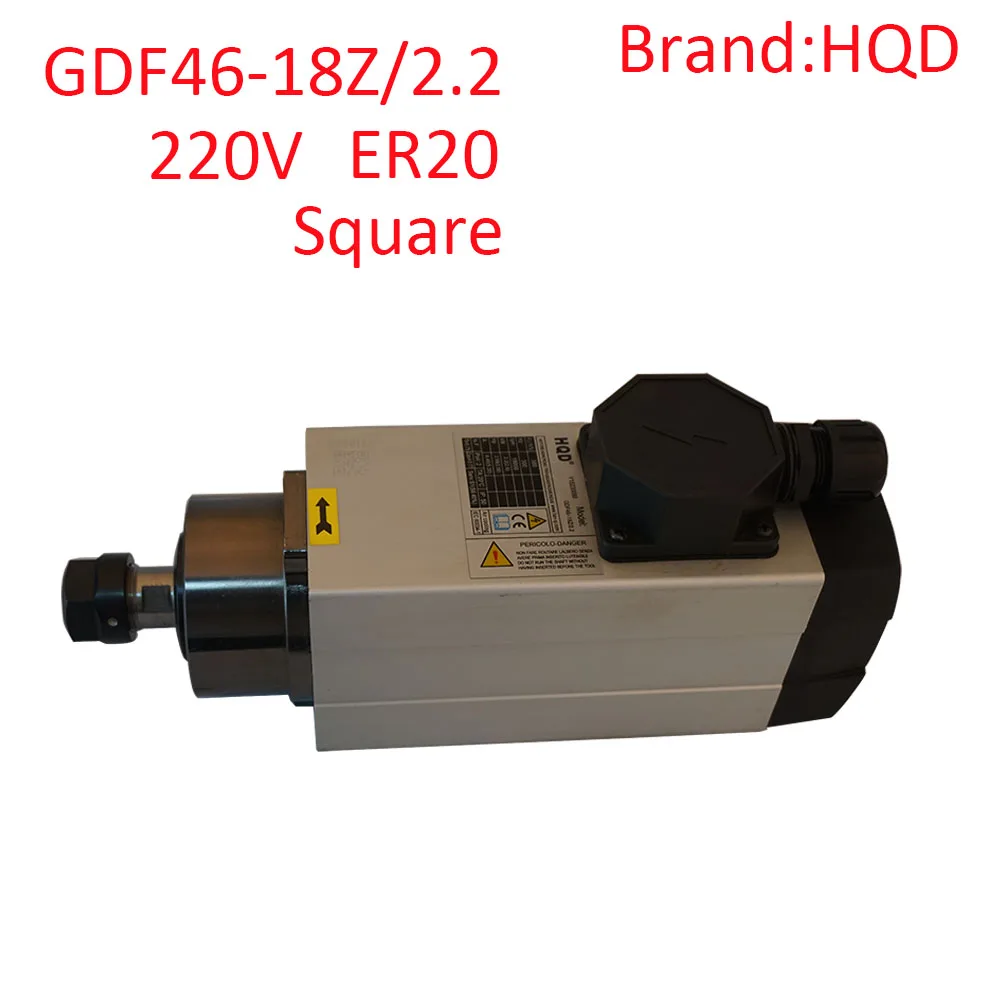

HQD GDF46-18Z/2.2 2.2KW Air-Cooled Spindle Motor – 18000RPM ER20 for CNC Router
- Brand
- HQD
- English Name
- HQD GDF46-18Z/2.2 2.2KW Air-Cooled Spindle Motor – 18000RPM ER20 for CNC Router
- Availability
- In Stock / Made to Order
| Model | GDF46-18Z/2.2 |
|---|---|
| Voltage | 220V |
| Power | 2.2 KW |
| Current | 7.8 A |
| Frequency | 300 Hz |
| Speed | 18000 RPM |

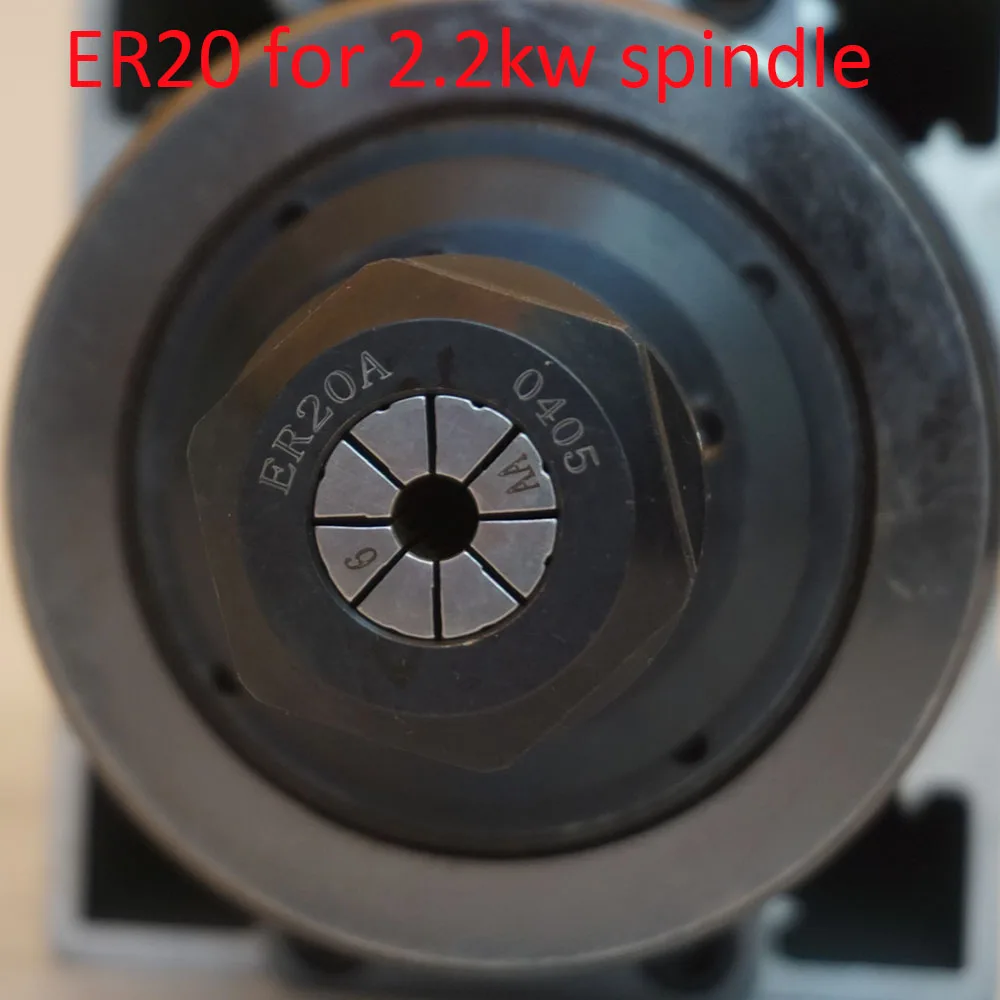

| Collet | ER20 |
| Cooling Method | Air Cooled |
| Bearing Lubrication | Grease |
| High-Precision Angular Contact Ball Bearings | 2X7005C P4/1X6002V P5 |
| Rotation Direction | Counterclockwise (viewed from shaft end) |
| Weight | 7 KG |
| Voltage (2) | 380V |
| Current (2) | 4.4 A |
QD GDF46-18Z/2.2 is a 2.2KW air-cooled spindle motor designed for CNC router, woodworking engraving, and milling machines. It runs at 18000 RPM with a rated frequency of 300Hz, delivering stable high-speed performance for light-duty cutting, drilling, and engraving applications.
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
QD GDF46-18Z/2.2 is a 2.2KW air-cooled spindle motor designed for CNC router, woodworking engraving, and milling machines. It runs at 18000 RPM with a rated frequency of 300Hz, delivering stable high-speed performance for light-duty cutting, drilling, and engraving applications. The spindle features an ER20 collet, grease-lubricated bearings, and high-precision angular contact ball bearings (2×7005C P4 / 1×6002V P5), ensuring low vibration, high accuracy, and long service life. Air-cooled design eliminates the need for a water cooling system, making it easier to maintain and suitable for dusty working environments. Available in both 220V (7.8A) and 380V (4.4A) versions. Ideal for compact CNC routers, advertising engraving machines, and general non-metal milling equipment. Wholesale and bulk orders supported
