GDF46-18Z/3.5

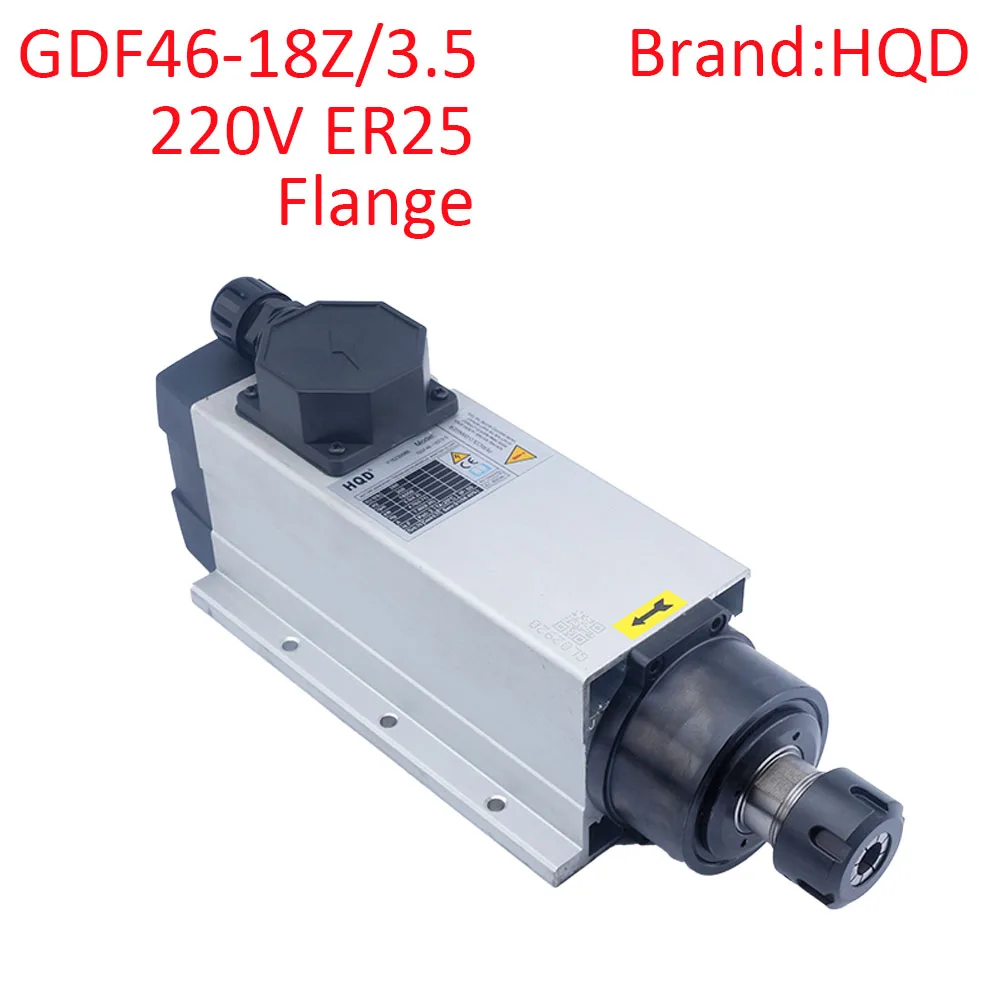

HQD GDF46-18Z/3.5 3.5KW Air-Cooled Spindle Motor – 18000RPM ER25 for CNC Router
- Brand
- HQD
- English Name
- HQD GDF46-18Z/3.5 3.5KW Air-Cooled Spindle Motor – 18000RPM ER25 for CNC Router
- Availability
- In Stock / Made to Order
| Model | GDF46-18Z/3.5 |
|---|---|

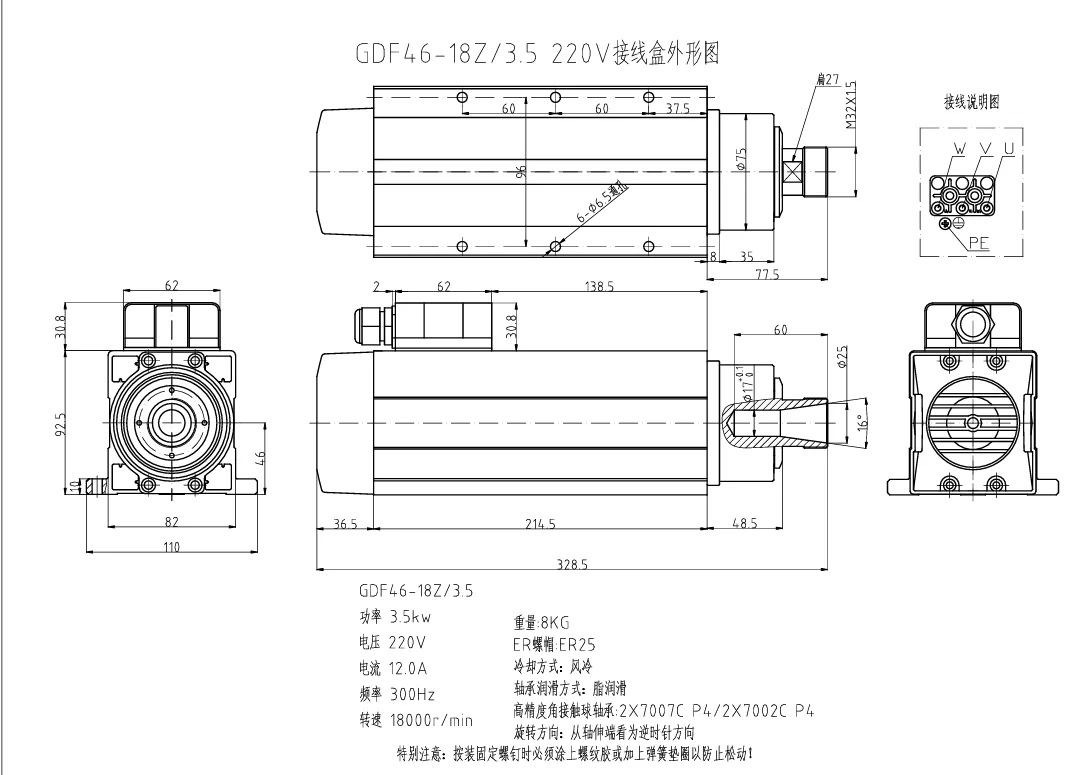

| Voltage | 220V |
| Power | 3.5kw |
| Current | 12.0 A |
| Frequency | 300 Hz |
| Speed | 18000 RPM |
| Collet | ER25 |
| Cooling Method | Air Cooled |
| Bearing Lubrication | Grease |
| High-Precision Angular Contact Ball Bearings | 2×7007C P4 / 2×7002C P4 |
| Rotation Direction | Counterclockwise (viewed from shaft end) |
| Weight | 8 KG |

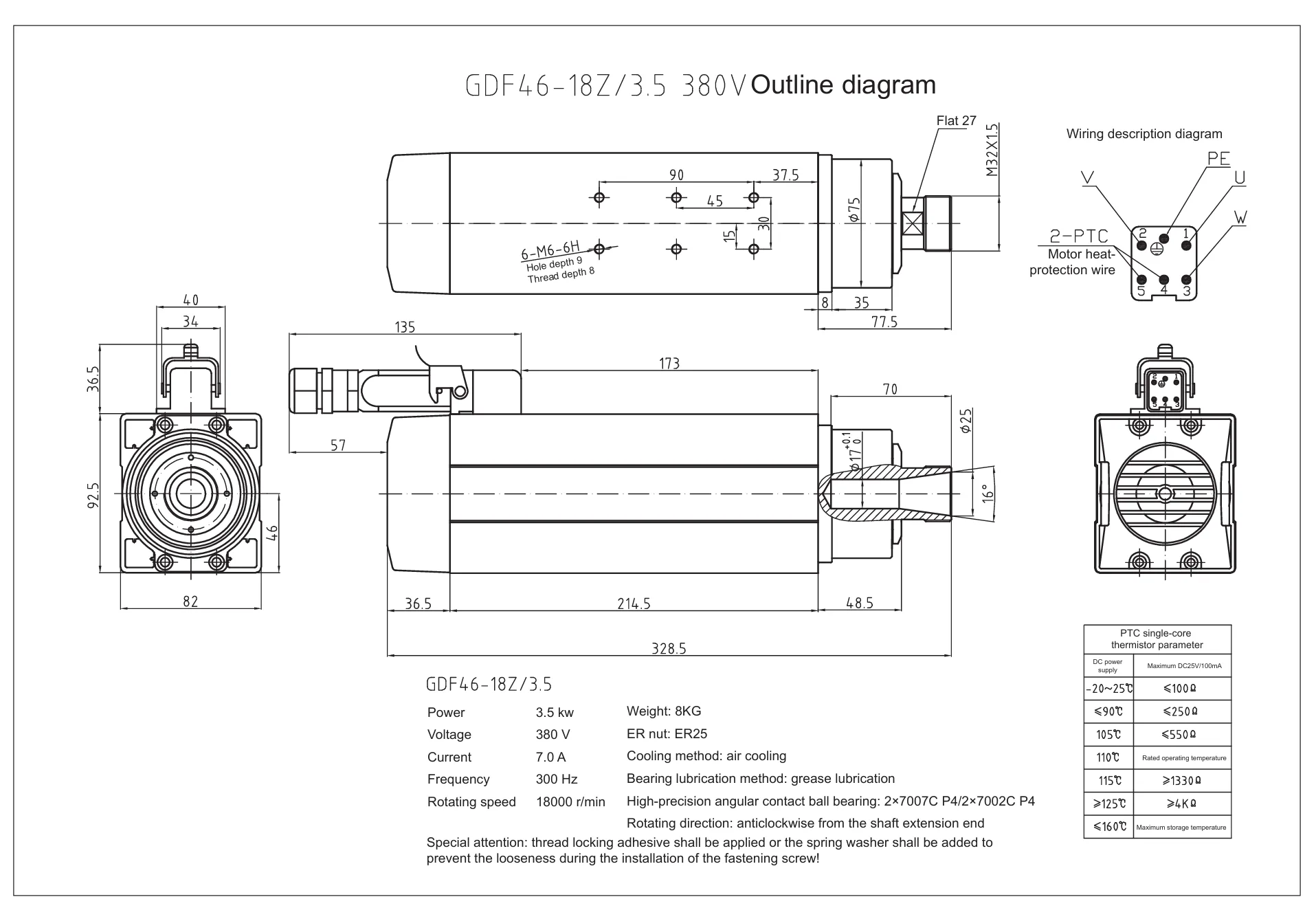

| Voltage (2) | 380V |
| Current (2) | 7.0 A |
HQD GDF46-18Z/3.5 is a 3.5KW air-cooled spindle motor designed for CNC router, woodworking engraving, and milling machines. It runs at 18000 RPM with a rated frequency of 300Hz, delivering stable high-speed performance for cutting, drilling, and engraving applications.
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
HQD GDF46-18Z/3.5 is a 3.5KW air-cooled spindle motor designed for CNC router, woodworking engraving, and milling machines. It runs at 18000 RPM with a rated frequency of 300Hz, delivering stable high-speed performance for cutting, drilling, and engraving applications. The spindle features an ER25 collet, grease-lubricated bearings, and high-precision angular contact ball bearings (2×7007C P4 / 2×7002C P4), ensuring low vibration, high accuracy, and long service life. Air-cooled design eliminates the need for a water cooling system, making it easier to maintain and suitable for dusty working environments. Available in both 220V (12.0A) and 380V (7.0A) versions. Ideal for compact CNC routers, advertising engraving machines, and general non-metal milling equipment. Wholesale and bulk orders supported — MOQ flexible, OEM/ODM welcome.
