GDF60-18Z/7.5

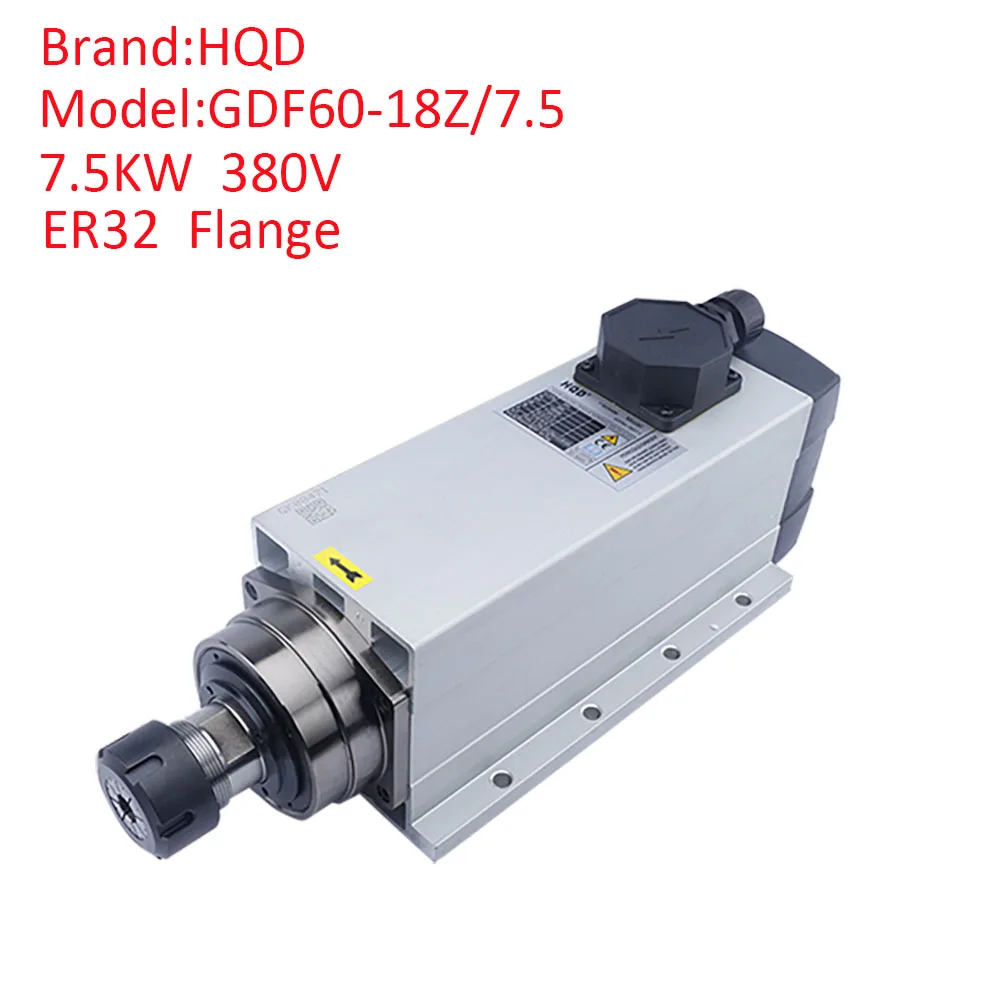

HQD GDF60-18Z/7.5 7.5KW Air-Cooled Spindle Motor – 18000RPM ER32 for CNC Router
- Brand
- HQD
- English Name
- HQD GDF60-18Z/7.5 7.5KW Air-Cooled Spindle Motor – 18000RPM ER32 for CNC Router
- Availability
- In Stock / Made to Order
| Model | GDF60-18Z/7.5 |
|---|---|
| Voltage | 220v |
| Power | 7.5kw |
| Current | 26.0 A |
| Frequency | 300 Hz |
| Speed | 18000 RPM |

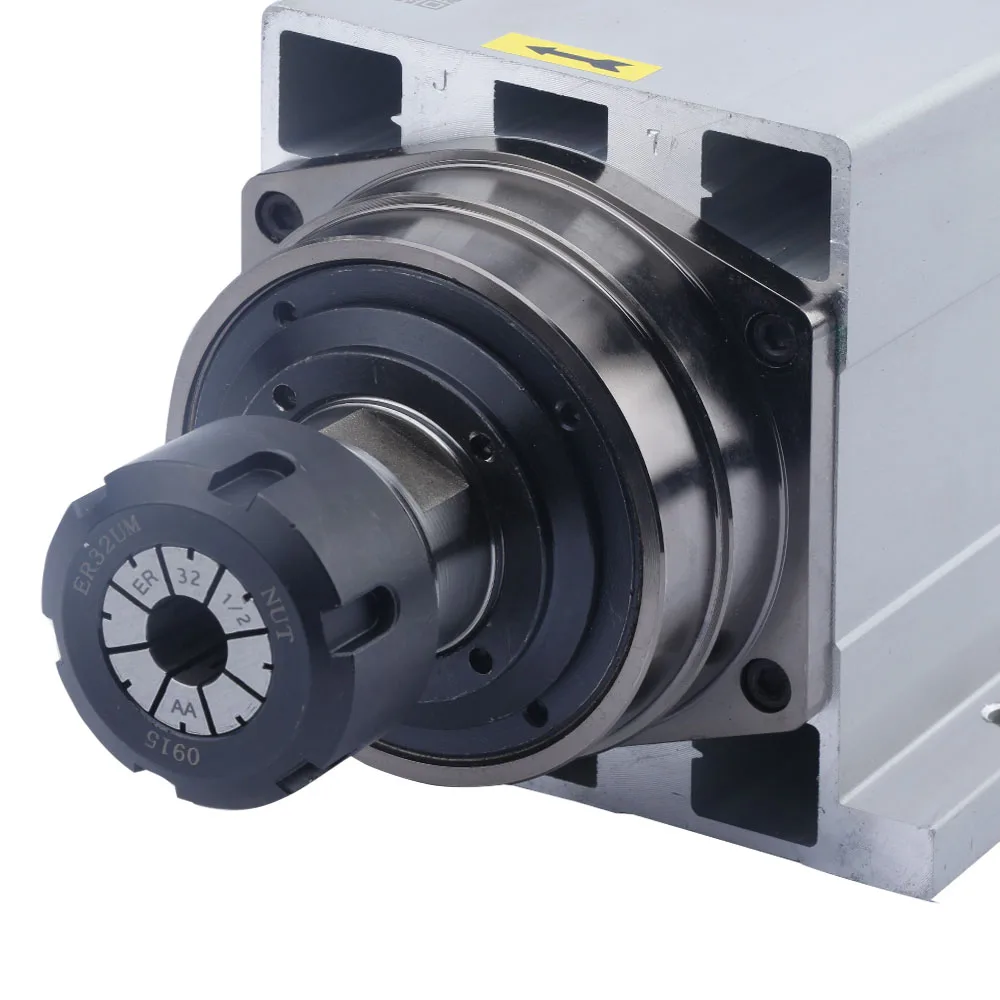

| Collet | ER32 |
| Cooling Method | Air Cooled |
| Bearing Lubrication | Grease |
| High-Precision Angular Contact Ball Bearings | 2×7008C P4 / 2×7003C P4 |
| Rotation Direction | Counterclockwise (viewed from shaft end) |
| Weight | 16 KG |
| Voltage (2) | 380V |
| Current (2) | 15.0 A |
HQD GDF60-18Z/7.5 is a 7.5KW air-cooled spindle motor designed for CNC router, woodworking engraving, and milling machines. It runs at 18000 RPM with a rated frequency of 300Hz, delivering high torque and stable performance for heavy-duty cutting, drilling, and engraving applications.
Product Details

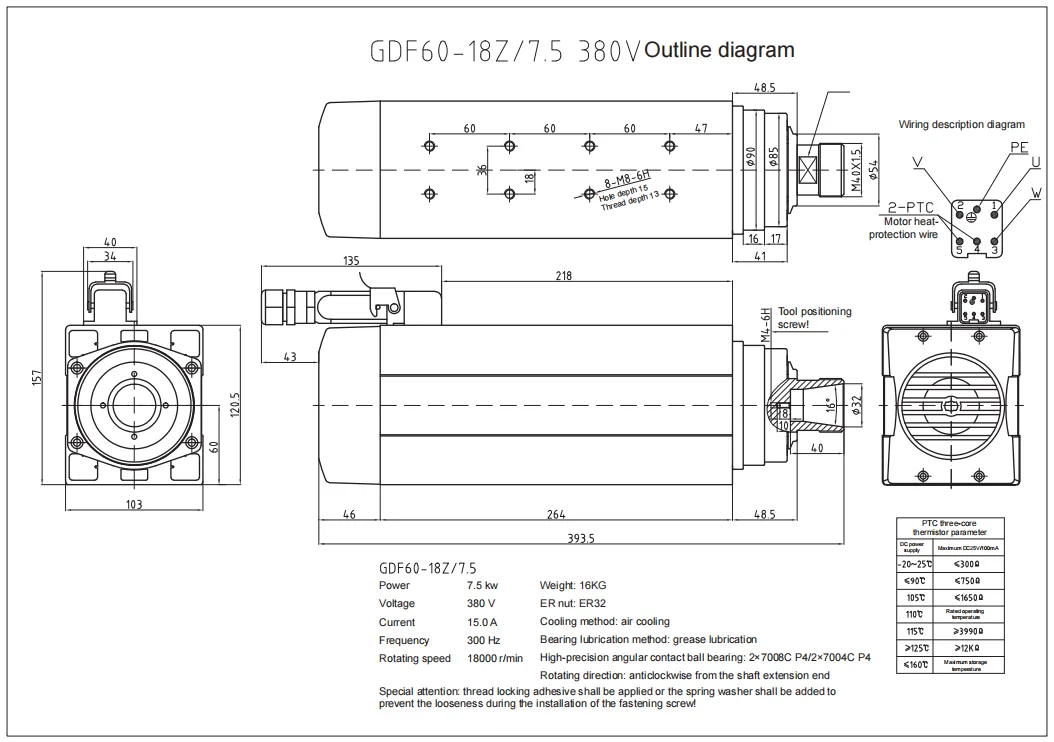

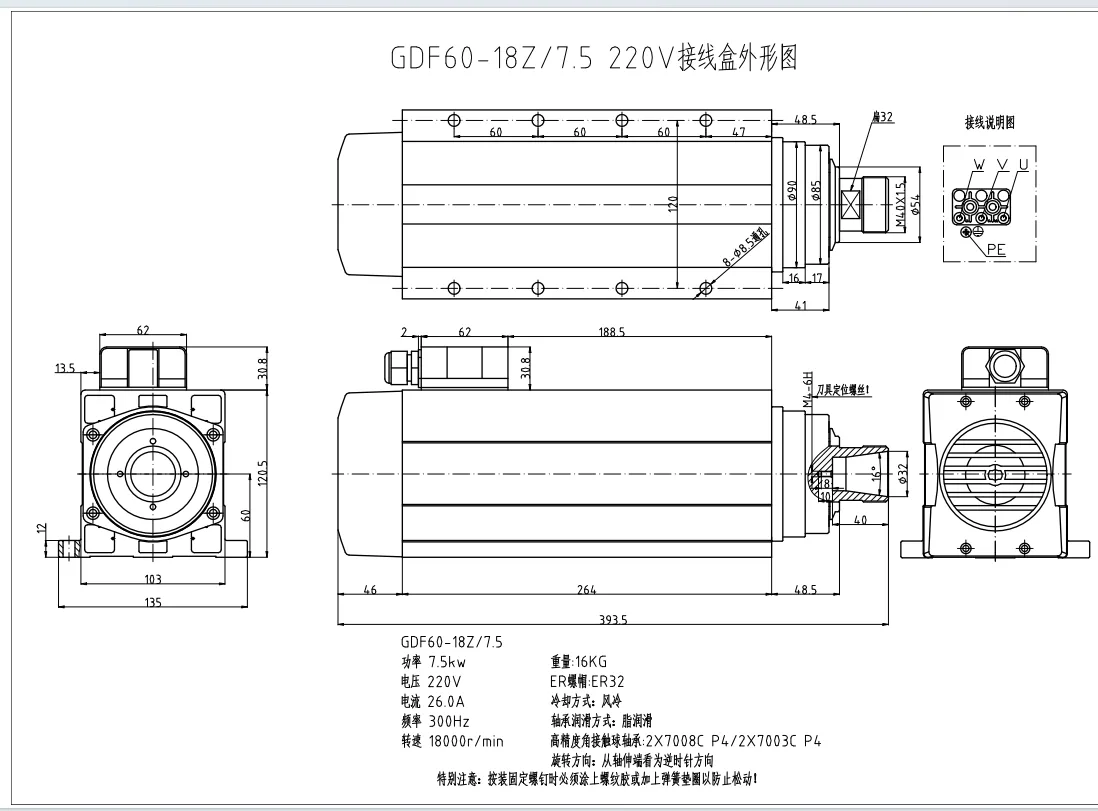

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
HQD GDF60-18Z/7.5 is a 7.5KW air-cooled spindle motor designed for CNC router, woodworking engraving, and milling machines. It runs at 18000 RPM with a rated frequency of 300Hz, delivering high torque and stable performance for heavy-duty cutting, drilling, and engraving applications. The spindle features an ER32 collet, grease-lubricated bearings, and high-precision angular contact ball bearings (2×7008C P4 / 2×7003C P4), ensuring low vibration, high accuracy, and long service life. Air-cooled design eliminates the need for a water cooling system, making it easier to maintain and suitable for dusty working environments. Available in both 220V (26.0A) and 380V (15.0A) versions. Ideal for heavy-duty woodworking CNC routers, advertising engraving machines, and general non-metal milling equipment. Wholesale and bulk orders supported
