2HSS86H-A
JMC 2HSS86H-A 2-Phase Closed Loop Stepper Servo Drive
- Brand
- JMC Drivers and Motors
- English Name
- JMC 2HSS86H-A 2-Phase Closed Loop Stepper Servo Drive
- Availability
- In Stock / Made to Order

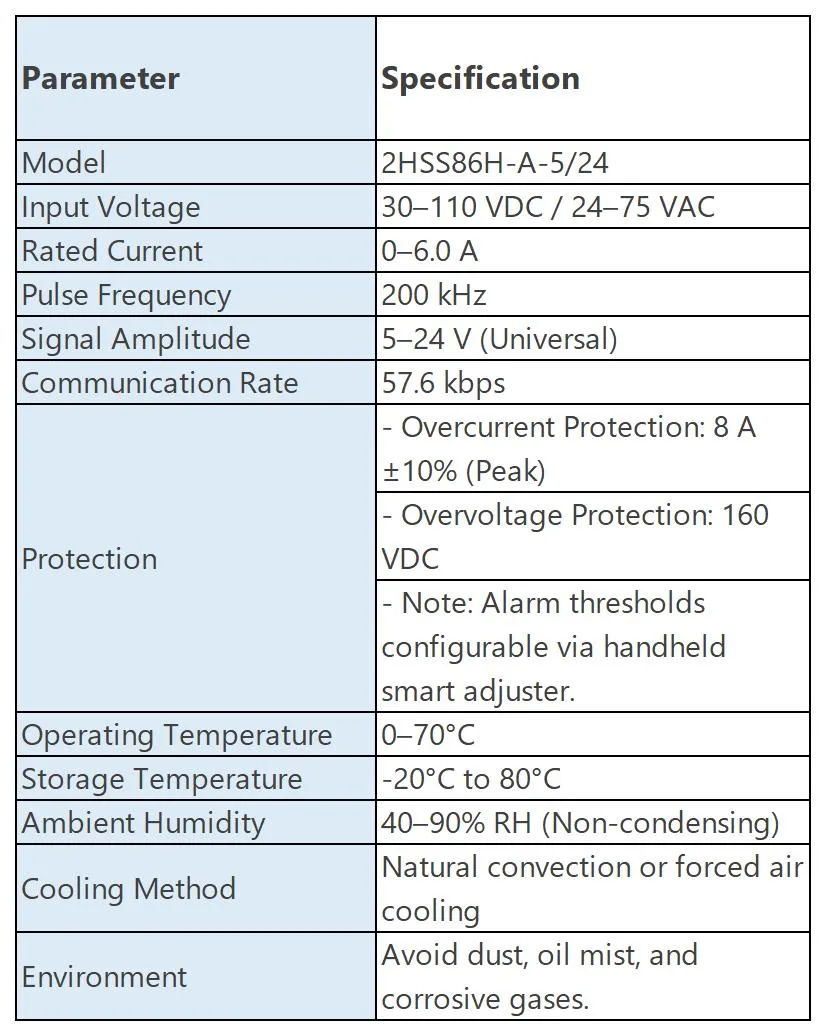

| Parameter | Specification |
|---|---|
| Input Voltage | AC 24V~80V / DC 30V~100V |
| Continuous Current | 4.5A (20KHz PWM) |
| Max Pulse Frequency | 200K |
| Default Baud Rate | 57.6Kbps |
| Protection | Over-current: 8A ±10% (Peak) |
| Dimensions (mm) | 111.5 x 75.5 x 34 mm |
| Operating Temp | 0 ~ 70°C |
| Storage Temp | -20 ~ +80°C |
| Humidity | 40 ~ 90% RH |

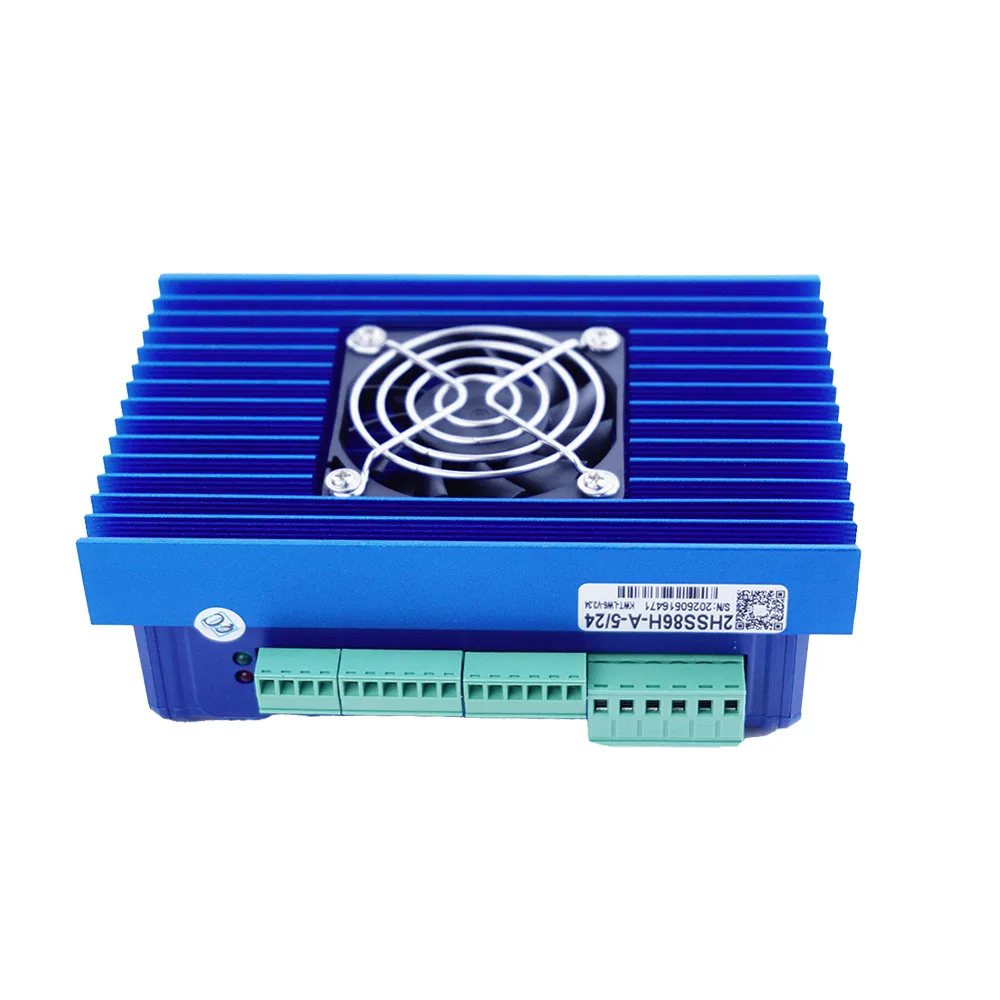

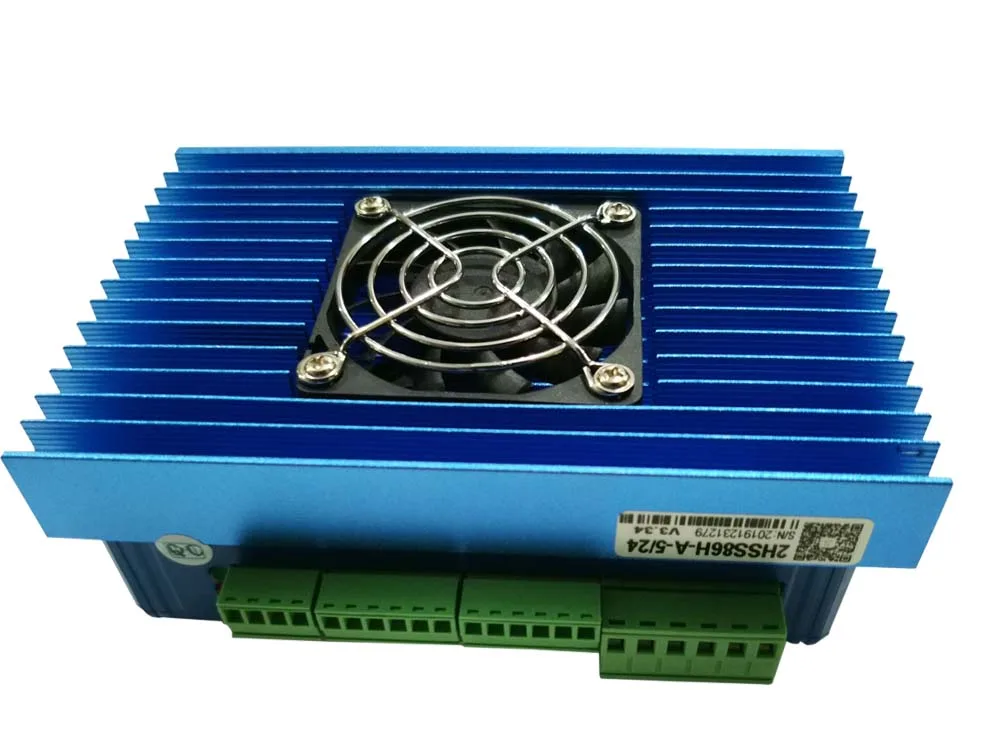

| Cooling Method | Natural cooling or forced air cooling |
| Environment | Avoid dust, oil mist, and corrosive gases. Indoor use only. |
The JMC 2HSS86H-A is a compact and high-performance 2-phase closed-loop stepper servo drive designed to eliminate step loss and ensure precise positioning. It drives the motor with 100% rated torque and features advanced variable current control for high efficiency and low heat generation. Compatible with 1000-line and 2500-line encoders, it provides smooth, low-vibration operation even at low speeds. With built-in acceleration/deceleration control and comprehensive protection, it is an ideal solution for CNC routers, laser engraving machines, and automation equipment.
Product Details

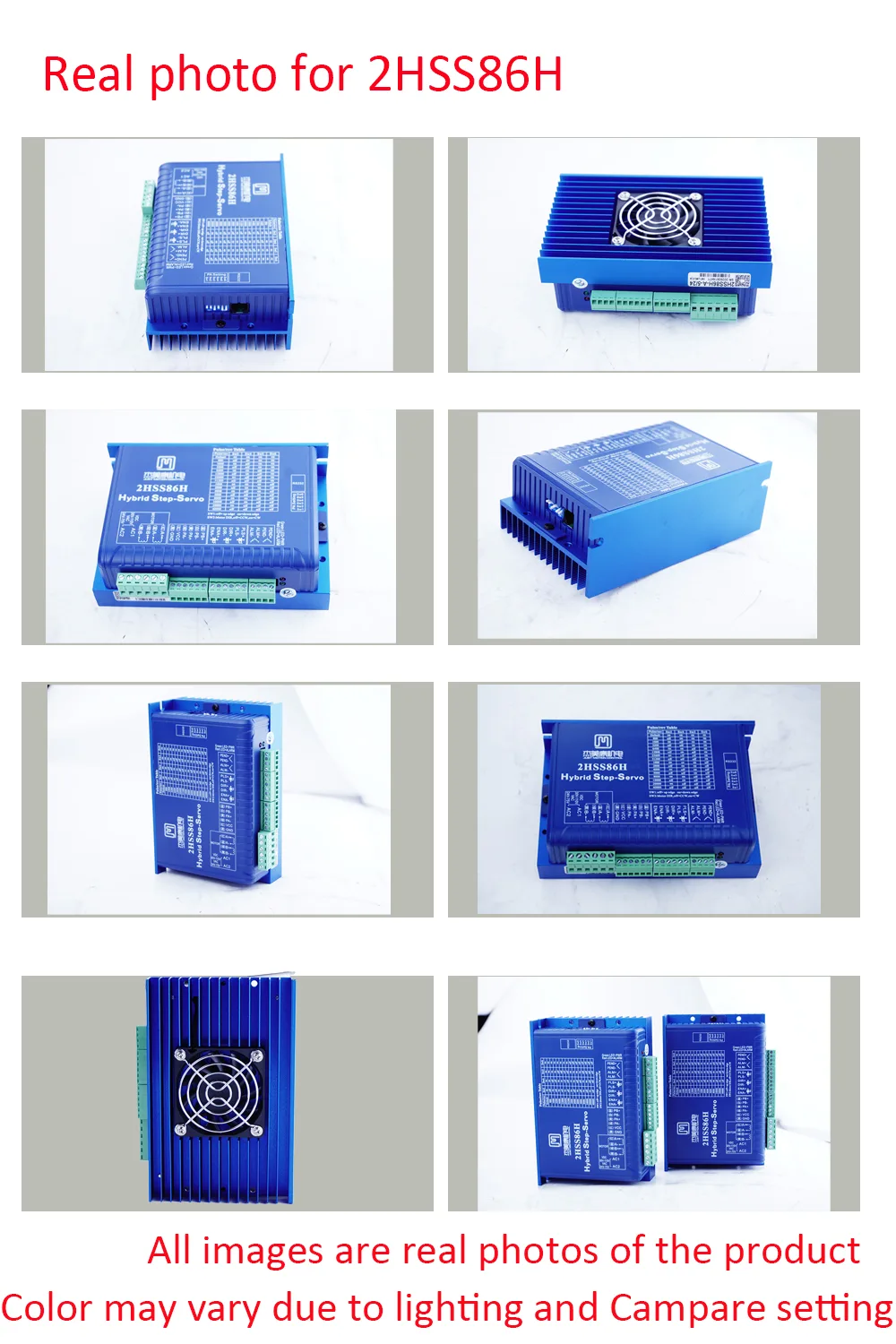

Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
The JMC 2HSS86H-A is a compact and high-performance 2-phase closed-loop stepper servo drive designed to eliminate step loss and ensure precise positioning. It drives the motor with 100% rated torque and features advanced variable current control for high efficiency and low heat generation. Compatible with 1000-line and 2500-line encoders, it provides smooth, low-vibration operation even at low speeds. With built-in acceleration/deceleration control and comprehensive protection, it is an ideal solution for CNC routers, laser engraving machines, and automation equipment. Key feature No Step Loss: Closed-loop control ensures precise positioning without losing steps. 100% Rated Torque: Drives the motor at full rated torque for maximum performance. Variable Current Control: High current efficiency for reduced heat and power consumption. Low Vibration & Smooth: Stable operation even at low speeds. Built-in Accel/Decel: Smooth start and stop control for improved motion quality. Customizable Micro-stepping: User-defined subdivision settings for flexible applications. Encoder Compatibility: Compatible with both 1000-line and 2500-line encoders. Easy Setup: No parameter adjustment required for general applications. Comprehensive Protection: Over-current, over-voltage, and position error protection. LED Indicators: Green LED for running status, Red LED for protection or stall alarm. 6-Digit Display: Digital tube display for easy parameter setting and motor status monitoring.
