NIDEC VRSF-5C Gearbox & 86BHH150 Motor Transmission Kit
NIDEC VRSF-5C-750-LMS + 86BHH150-600-42J Motor + 1.25M Gear Kit – High Torque Transmission Assembly for 3-Axis Woodworking CNC
- Brand
- Transmission Kit
- English Name
- NIDEC VRSF-5C-750-LMS + 86BHH150-600-42J Motor + 1.25M Gear Kit – High Torque Transmission Assembly for 3-Axis Woodworking CNC
- Availability
- In Stock / Made to Order
| Parameter | Specification |
|---|---|
| Product Name | CNC Transmission Assembly Kit (Gearbox + Motor + Gear + Plate) |
| Gearbox Brand | NIDEC |

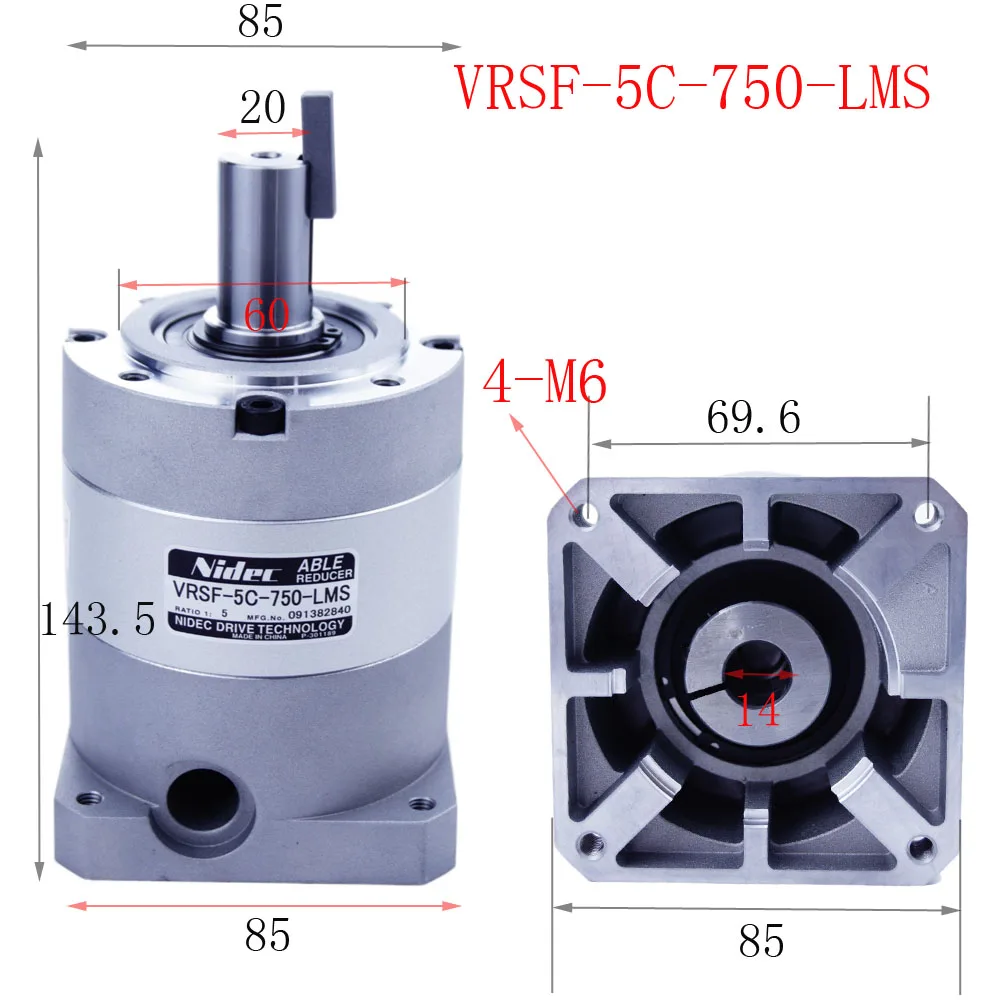

| Gearbox Model | VRSF-5C-750-LMS |

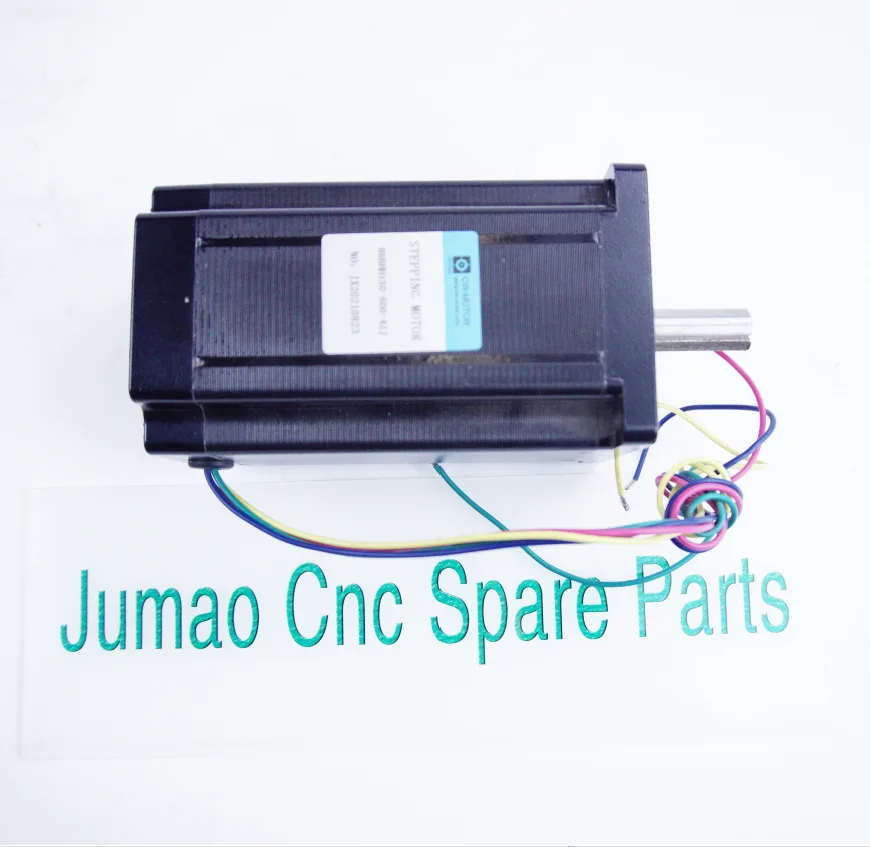

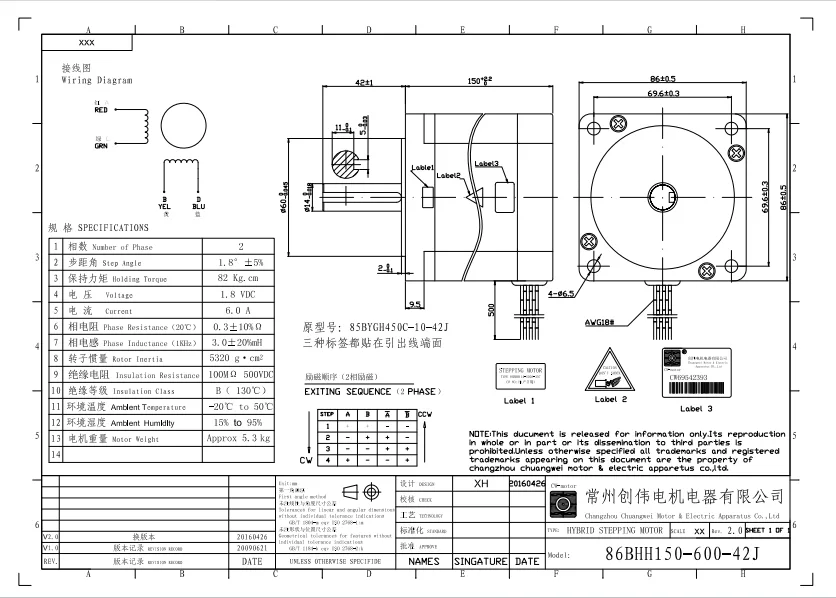

| Motor Model | 86BHH150-600-42J |

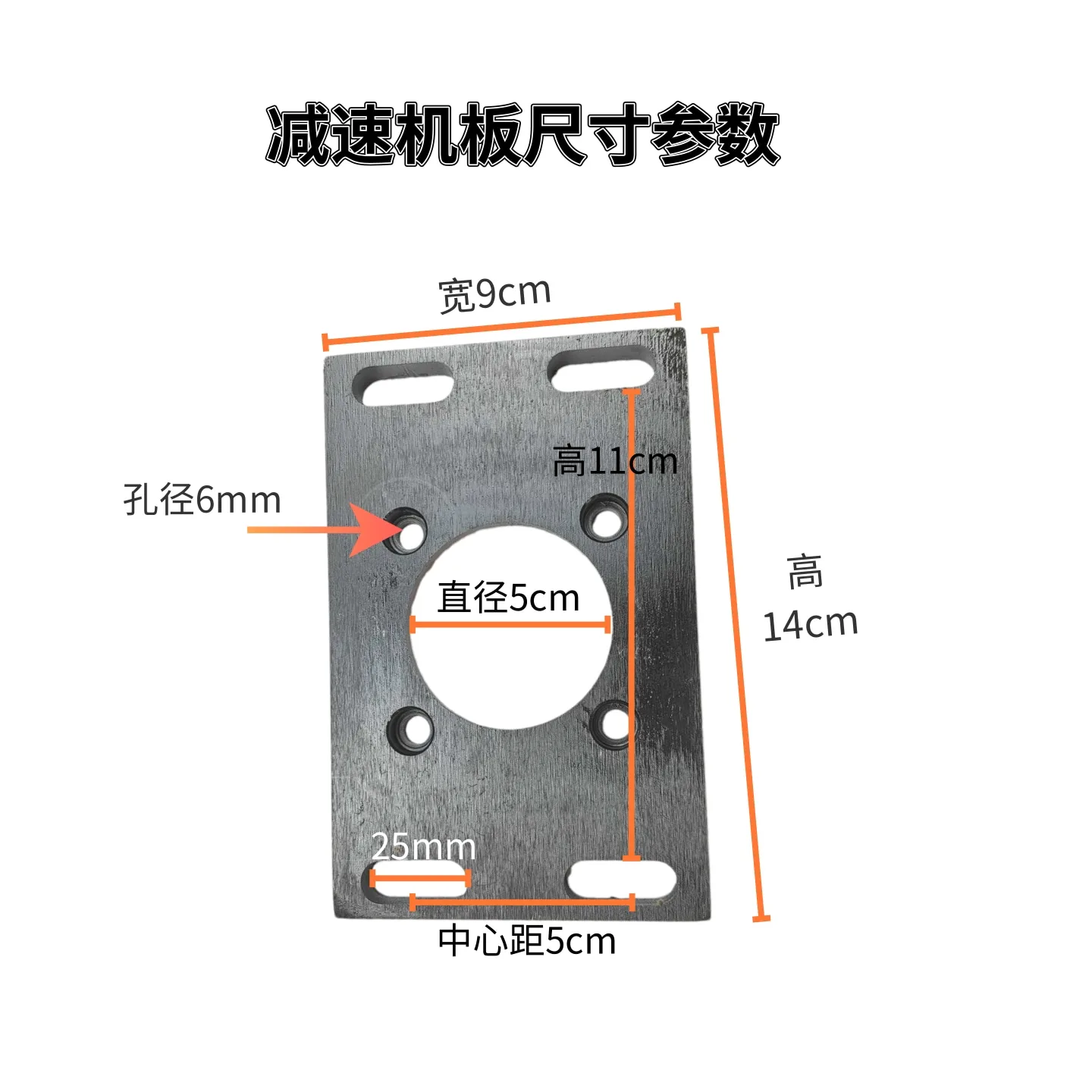

| Included Components | 1x Gearbox, 1x Motor, 1x Gearbox Plate, 1x Gear |

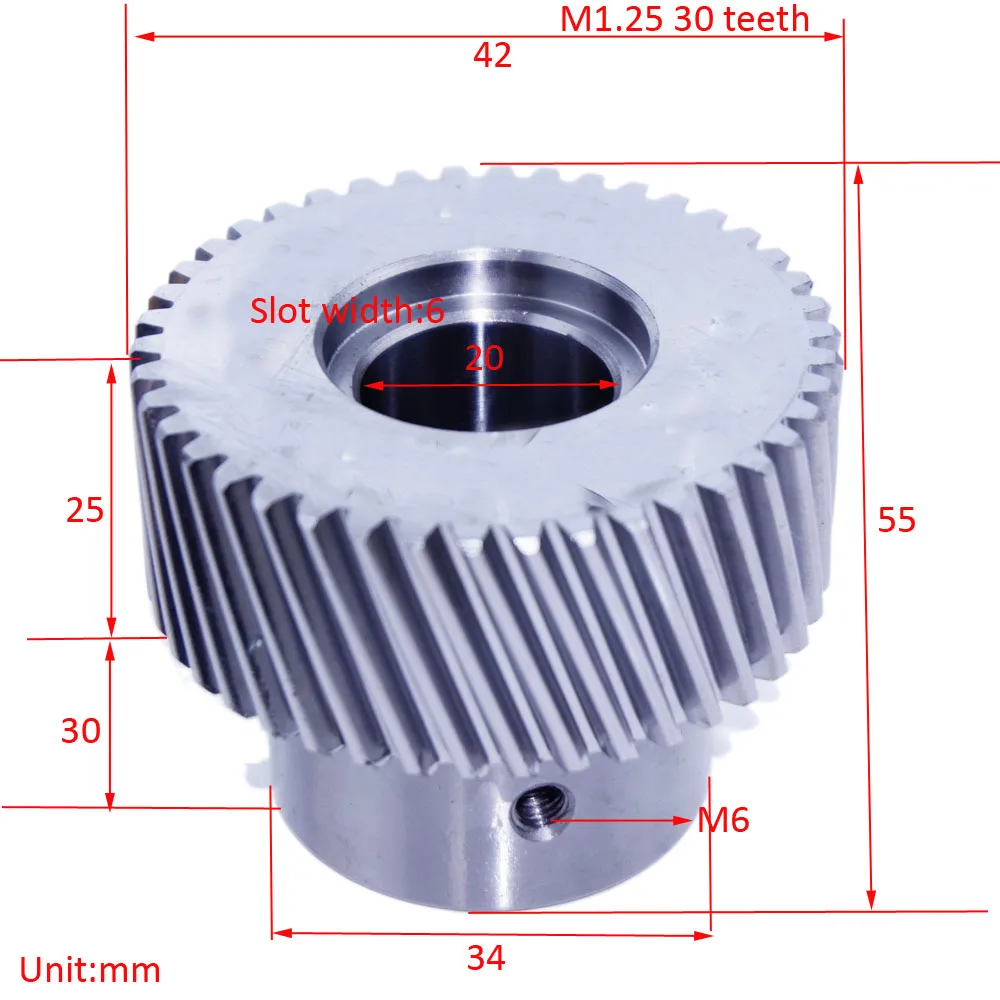

| Gear Specifications | 1.25M Module - 30 Teeth - Inner Diameter 20mm - Height 45mm or 55mm (Optional) |
| Transmission Type | Gearbox + Gear Drive |
| Compatibility | 1325, 2030 3-Axis Woodworking CNC Routers |
| Packaging | Sold as a Complete Kit |
| Note | This kit uses the 86BHH150-600-42J motor (high torque version) |

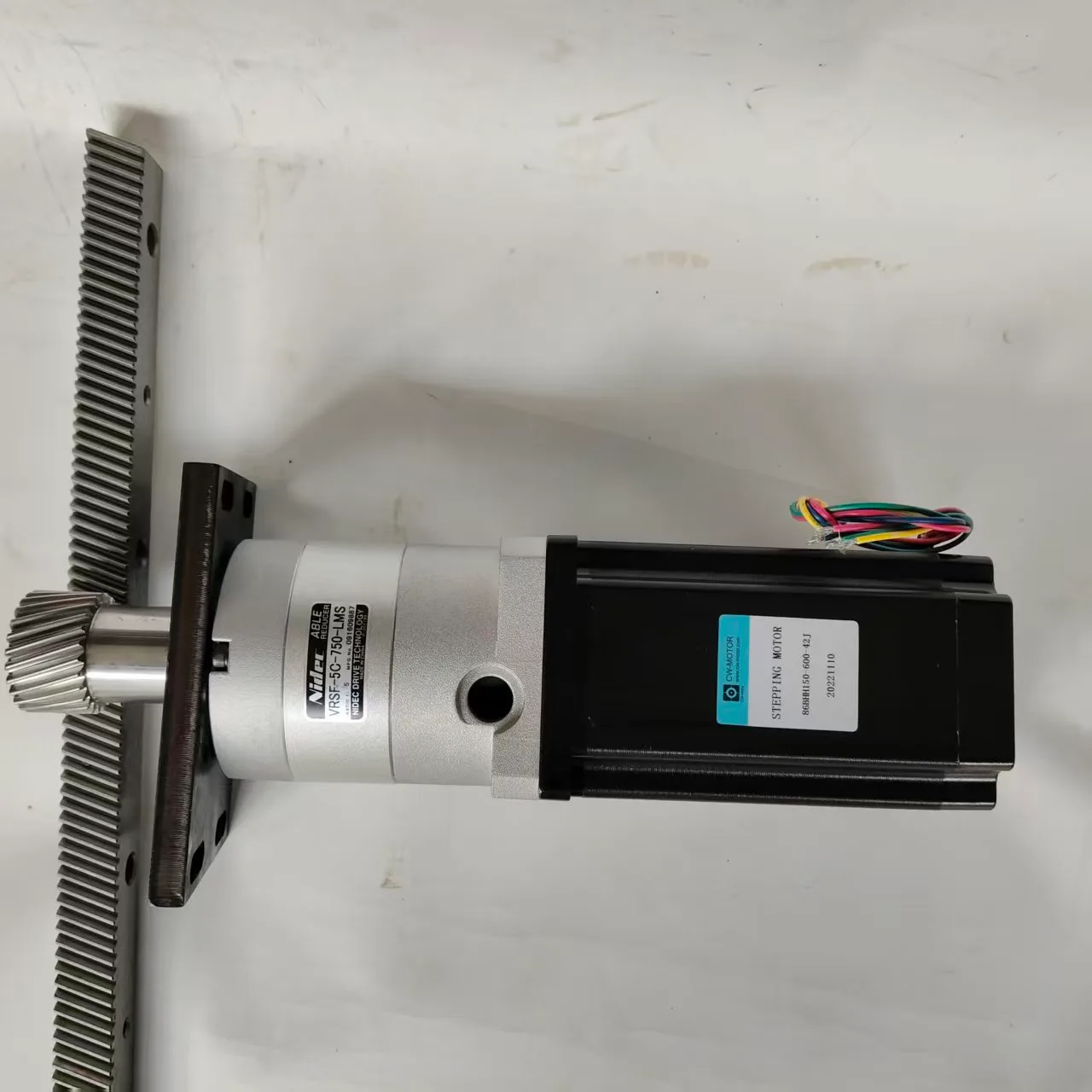

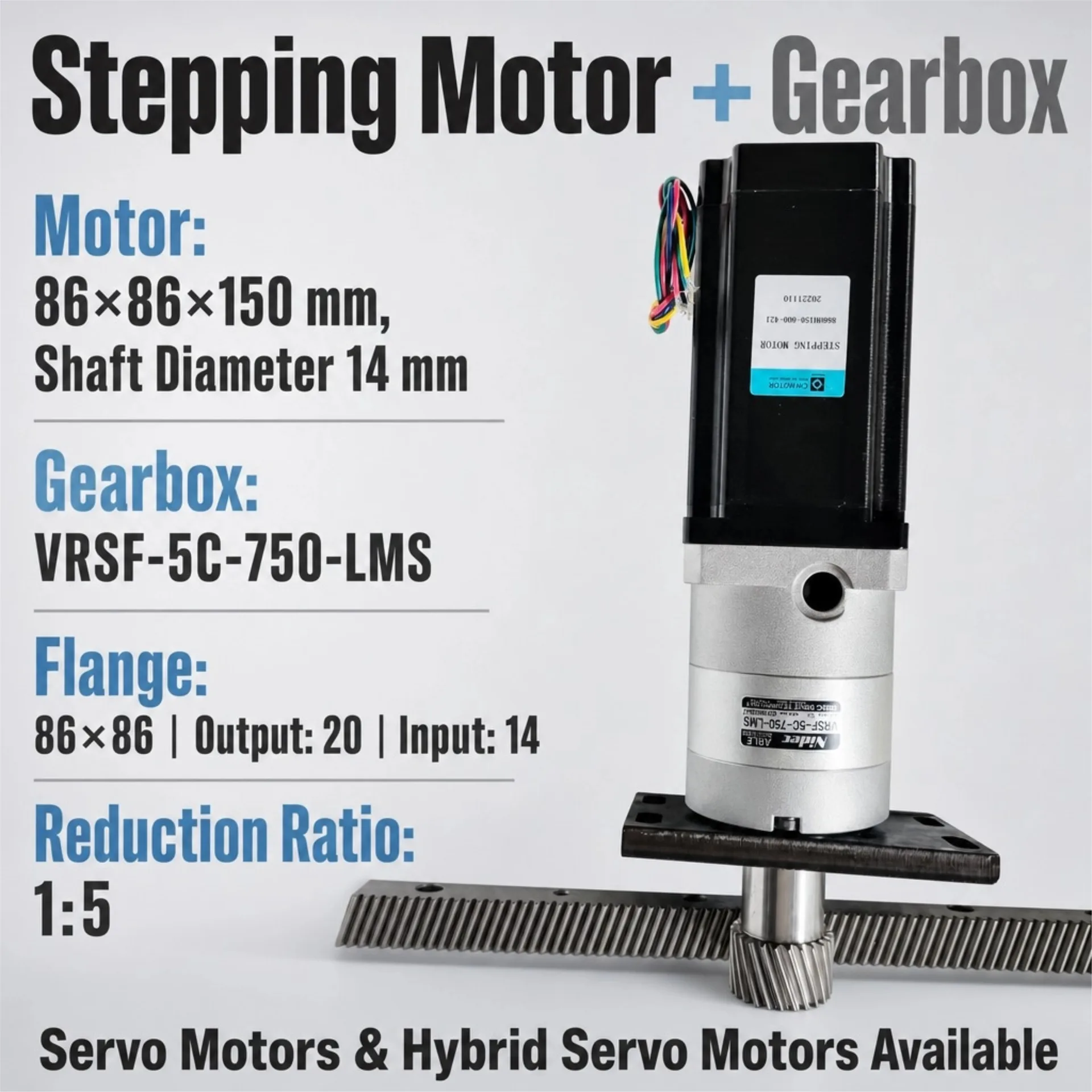

This complete transmission kit is designed for 3-axis CNC woodworking machines (Models 1325 and 2030). It includes a NIDEC VRSF-5C-750-LMS gearbox, an 86BHH150-600-42J motor, a gearbox mounting plate, and a 1.25M-30T gear (inner diameter 20mm, height 45mm or 55mm). The 86BHH150 motor provides higher torque output, making this kit ideal for heavy-duty woodworking applications. All components are matched and tested for perfect compatibility.
Product Details
Below are the detailed photos and specifications for this item. Contact us on WhatsApp for pricing, stock and matching accessories.
This complete transmission kit is designed for 3-axis CNC woodworking machines (Models 1325 and 2030). It includes a NIDEC VRSF-5C-750-LMS gearbox, an 86BHH150-600-42J motor, a gearbox mounting plate, and a 1.25M-30T gear (inner diameter 20mm, height 45mm or 55mm). The 86BHH150 motor provides higher torque output, making this kit ideal for heavy-duty woodworking applications. All components are matched and tested for perfect compatibility. Application 3-Axis CNC Woodworking Machine (Models 1325, 2030)
