CW-3000 工业冷水机
CW-3000 Series Industrial Chiller
- 品牌
- MINGPIN
- 英文名称
- CW-3000 Series Industrial Chiller
- 库存
- 现货/订货
| Model | CW-3000AG / CW-3000DG / CW-3000DF / CW-3000AK / CW-3000DK |
|---|---|
| Voltage | AC220-240V (AG); AC100-120V (DG/DF/DK); AC-220-240V (AK) |
| Frequency | 50/60Hz |
| Current | 0.45A (AG); 0.9A (DG/DF); 0.5A (AK); 1.0A (DK) |
| Cooling | 50W/°C (AG/DG/DF); 60W/°C (AK/DK) |
| Capacity | 9L |
| Inlet and outlet hole | Externalφ10mm brass connector (AG/DG); φ8mm brass connector (DF); φ6mm speedy connector (AK/DK) |
| Max.Lift | 10M (AG/DG/DF); 70M (AK/DK) |
| Max.Flow | 10L/min (AG/DG/DF); 2L/min (AK/DK) |
| Protection | Flow alarm |
| N.W | 9.5Kg (AG/DG/DF); 12Kg (AK/DK) |
| G.W | 12Kg (AG/DG/DF); 14.5Kg (AK/DK) |
| Dimensions | 47×27×37cm (L*W*H) |
| Packing dimensions | 56×37×46cm (L*W*H) |

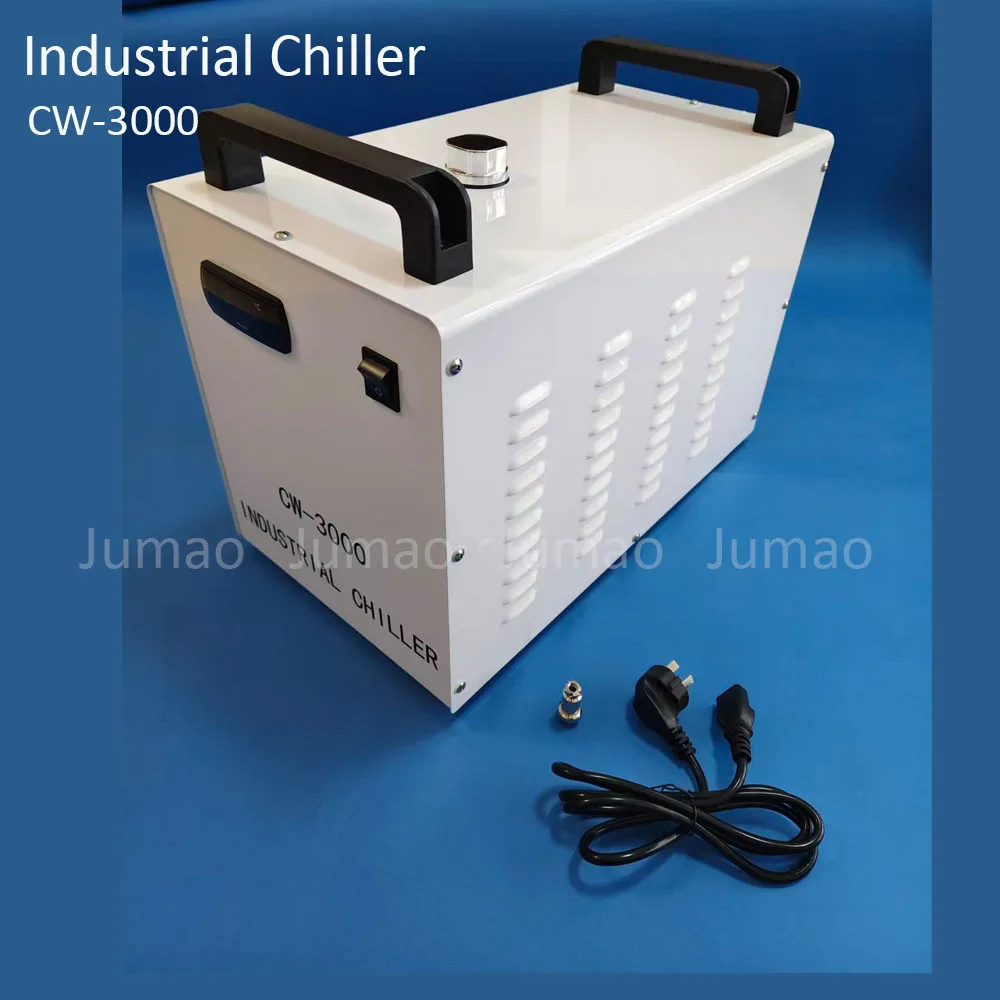

The MINGPIN CW-3000 is a compact and highly reliable industrial chiller designed for cooling CNC spindles, laser equipment, and other industrial machinery. It features a 9L stainless steel water tank and utilizes a high-efficiency radiator fan with smart temperature control to optimize energy use. The built-in intelligent flow alarm system (with dry-contact relay output) ensures safe, continuous operation by protecting your equipment from water shortages or overheating. Available in AC 220V or 110V versions, it offers a max lift of 10 meters and a max flow of 10L/min. With its durable white metal housing and user-friendly design, the CW-3000 is an ideal, maintenance-free cooling solution for demanding industrial environments.
产品详情

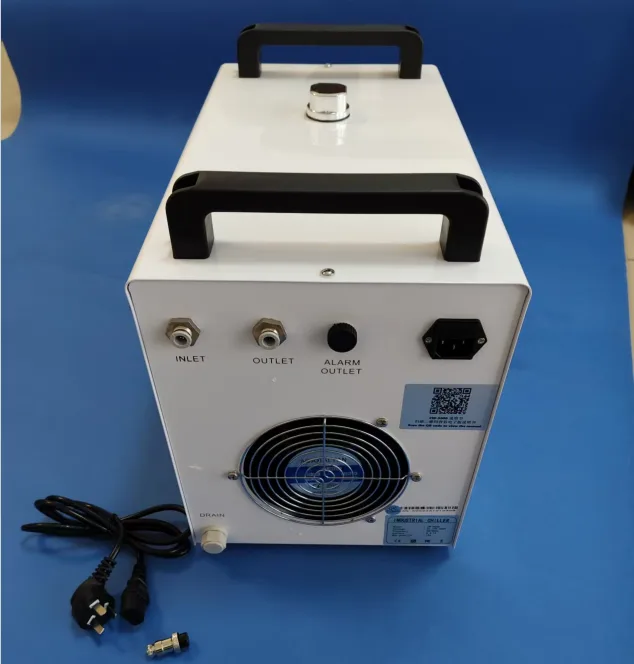

下面是该产品的详细图片与说明，需要报价、库存或配套方案可以直接 WhatsApp 咨询。
The MINGPIN CW-3000 is a compact and highly reliable industrial chiller designed for cooling CNC spindles, laser equipment, and other industrial machinery. It features a 9L stainless steel water tank and utilizes a high-efficiency radiator fan with smart temperature control to optimize energy use. The built-in intelligent flow alarm system (with dry-contact relay output) ensures safe, continuous operation by protecting your equipment from water shortages or overheating. Available in AC 220V or 110V versions, it offers a max lift of 10 meters and a max flow of 10L/min. With its durable white metal housing and user-friendly design, the CW-3000 is an ideal, maintenance-free cooling solution for demanding industrial environments.
