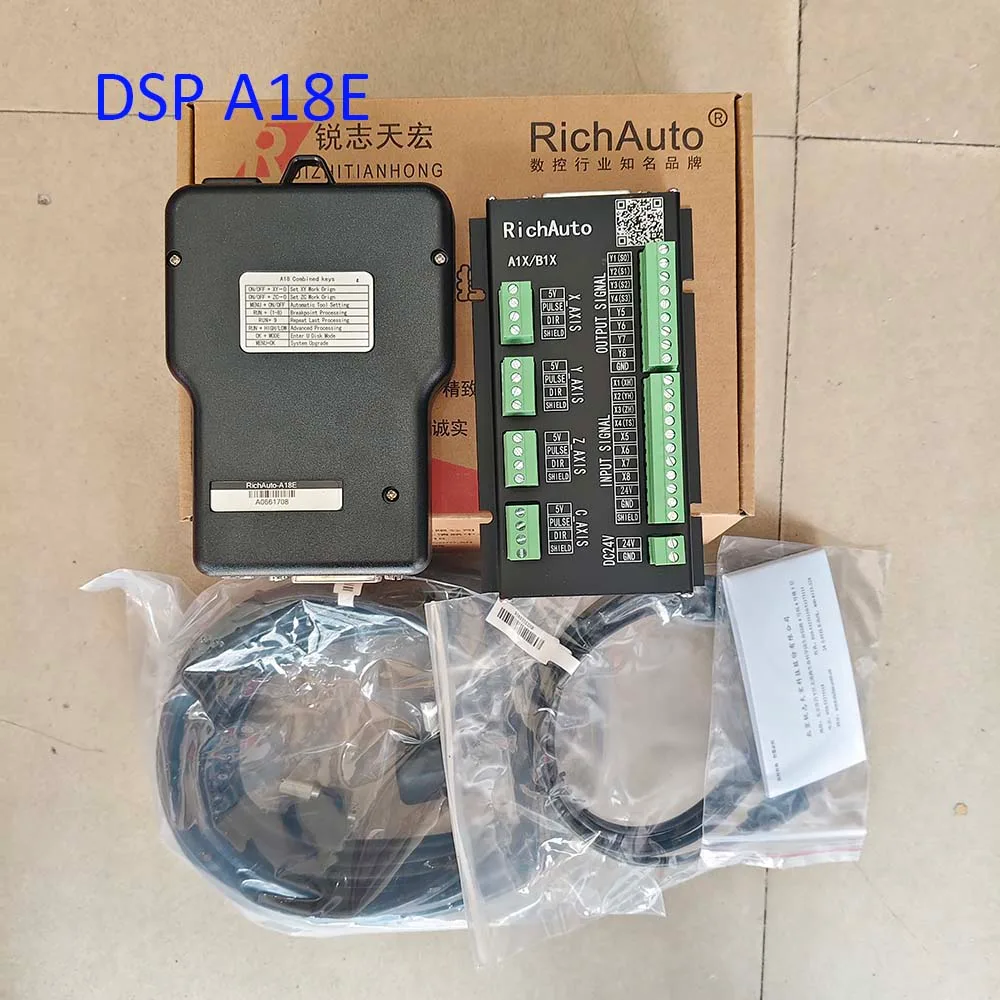

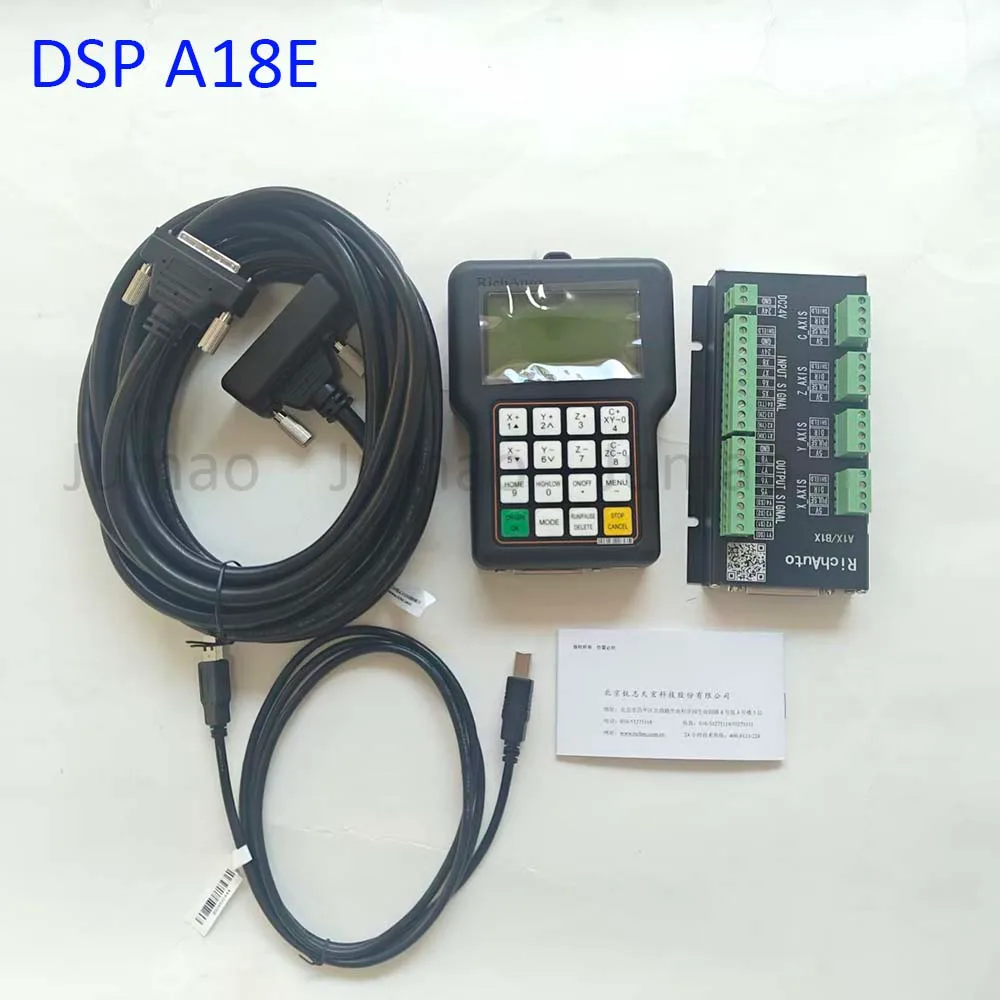

DSP 控制系统 DSP A18E
RichAuto DSP A18E 4-Axis CNC Controller – USB Linkage Motion Control System for CNC Router Engraving Machine, English Version Original
- 品牌
- RichAuto
- 英文名称
- RichAuto DSP A18E 4-Axis CNC Controller – USB Linkage Motion Control System for CNC Router Engraving Machine, English Version Original
- 库存
- 现货/订货
| Product Model | RichAuto A11E |
|---|---|
| CPU | DSP |
| Power Failure Protection | Supported |
| Built-in Memory | 512 Mb |
| Breakpoint Processing | Supported |
| Screen | 128×64 Monochrome LCD |
| Power Supply | DC 24V |
| Communication Port | USB Disk |
| Manual Mode | Continue, Step, Distance |
| Number of Linkage Axes | 3–4 axes |
| Interpolation Method | Line, Arc, Spline |
| Control Signal | Common Anode |
| Soft/Hard Limit | Supported |
| Drive System | Stepping / Servo Motor |
| Maximum Pulse Frequency | 1 MHz |
| Minimum Input Unit | 0.001 mm |
| Password Protection | Supported |
| Language | Simplified/Traditional Chinese, English; other languages customizable |
1) System Introduction
产品详情
下面是该产品的详细图片与说明，需要报价、库存或配套方案可以直接 WhatsApp 咨询。
1) System Introduction RichAuto A1X motion control system independently developed by Beijing RichAuto S&T Co., Ltd and it can be widely applied to machinery, advertisement, woodworking, mold engraving machines, laser, flame, plasma cutting machines, and others in the machine control field. RichAuto A1X make DSP as the core of the system,High-speed processing;Use embedded structure, high degree of integration and strong stability make installation and operation easy; Support U disk, removable storage card reader; High speed transfer, no longer dependent on the computer to realize off-line operation.
