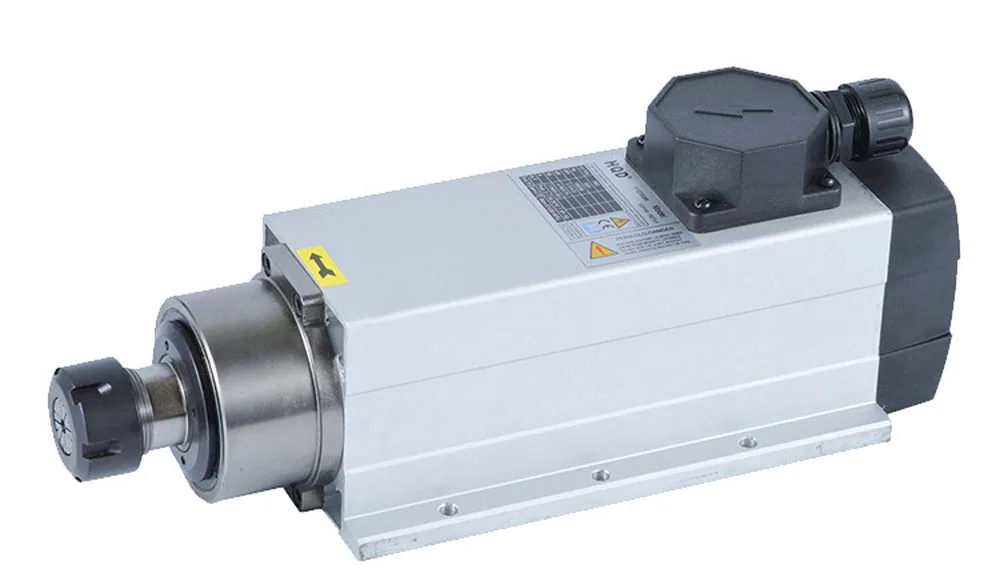

前程风冷主轴 GDF37-18Z 2.2KW with flange

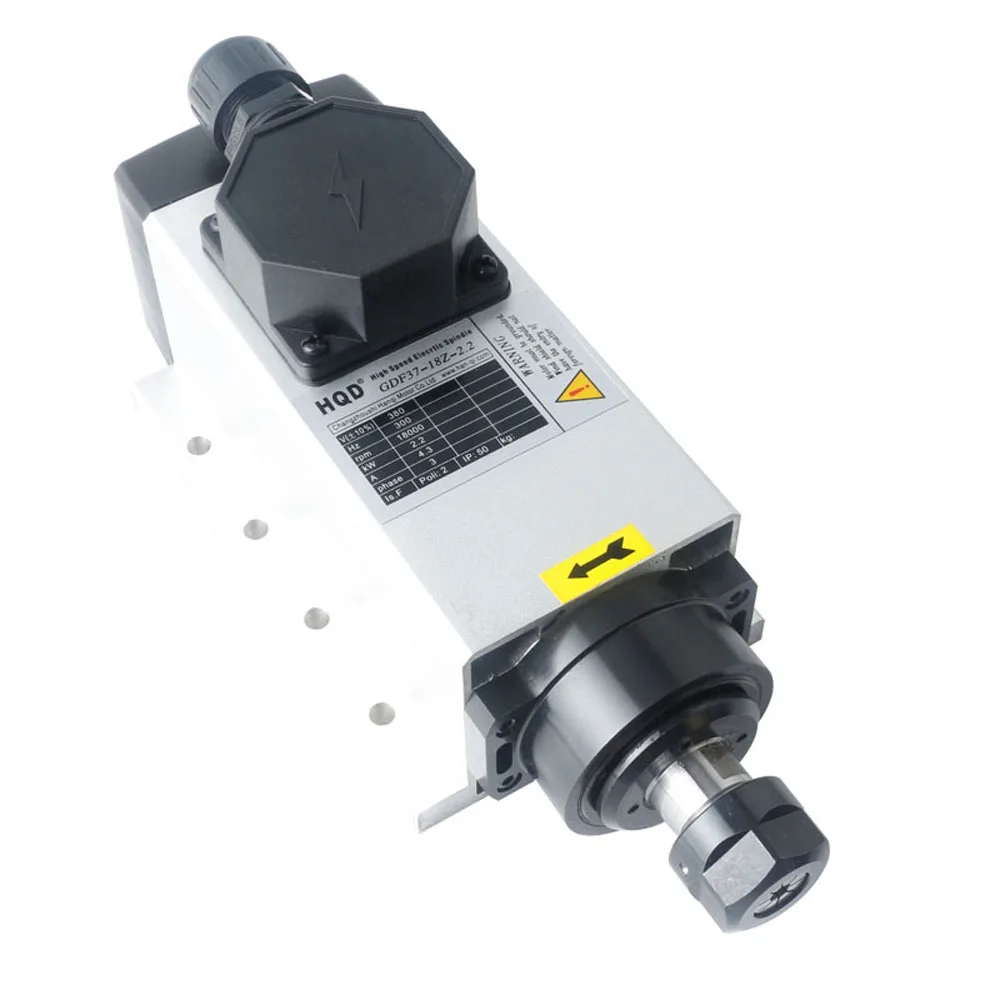

HQD GDF37-18Z/2.2 Air-Cooled Spindle with Flange
- 品牌
- 前程风冷主轴
- 英文名称
- HQD GDF37-18Z/2.2 Air-Cooled Spindle with Flange
- 库存
- 现货/订货
| Power | 2.2kw |
|---|---|
| Voltage | 380V |
| Current | 4.3A |
| Frequency | 300Hz |
| Rotational speed | 18000rpm |
| Tool Holder | ER20 |
| Number of pole | Not specified |
| Weight | 5KG |
The HQD GDF37-18Z/2.2 is a 2.2 kW air-cooled electric spindle motor designed for woodworking and engraving CNC machines. It operates on 380V with a maximum speed of 18,000 rpm and draws 4.3A current at 300Hz. Equipped with an ER20 collet for secure tool holding, this compact 5kg spindle offers efficient air cooling and reliable performance for routing and cutting applications. Its counterclockwise rotation (viewed from the shaft extension) and lightweight design make it a practical choice for integration into compact CNC router systems.
产品详情
下面是该产品的详细图片与说明，需要报价、库存或配套方案可以直接 WhatsApp 咨询。
The HQD GDF37-18Z/2.2 is a 2.2 kW air-cooled electric spindle motor designed for woodworking and engraving CNC machines. It operates on 380V with a maximum speed of 18,000 rpm and draws 4.3A current at 300Hz. Equipped with an ER20 collet for secure tool holding, this compact 5kg spindle offers efficient air cooling and reliable performance for routing and cutting applications. Its counterclockwise rotation (viewed from the shaft extension) and lightweight design make it a practical choice for integration into compact CNC router systems.
