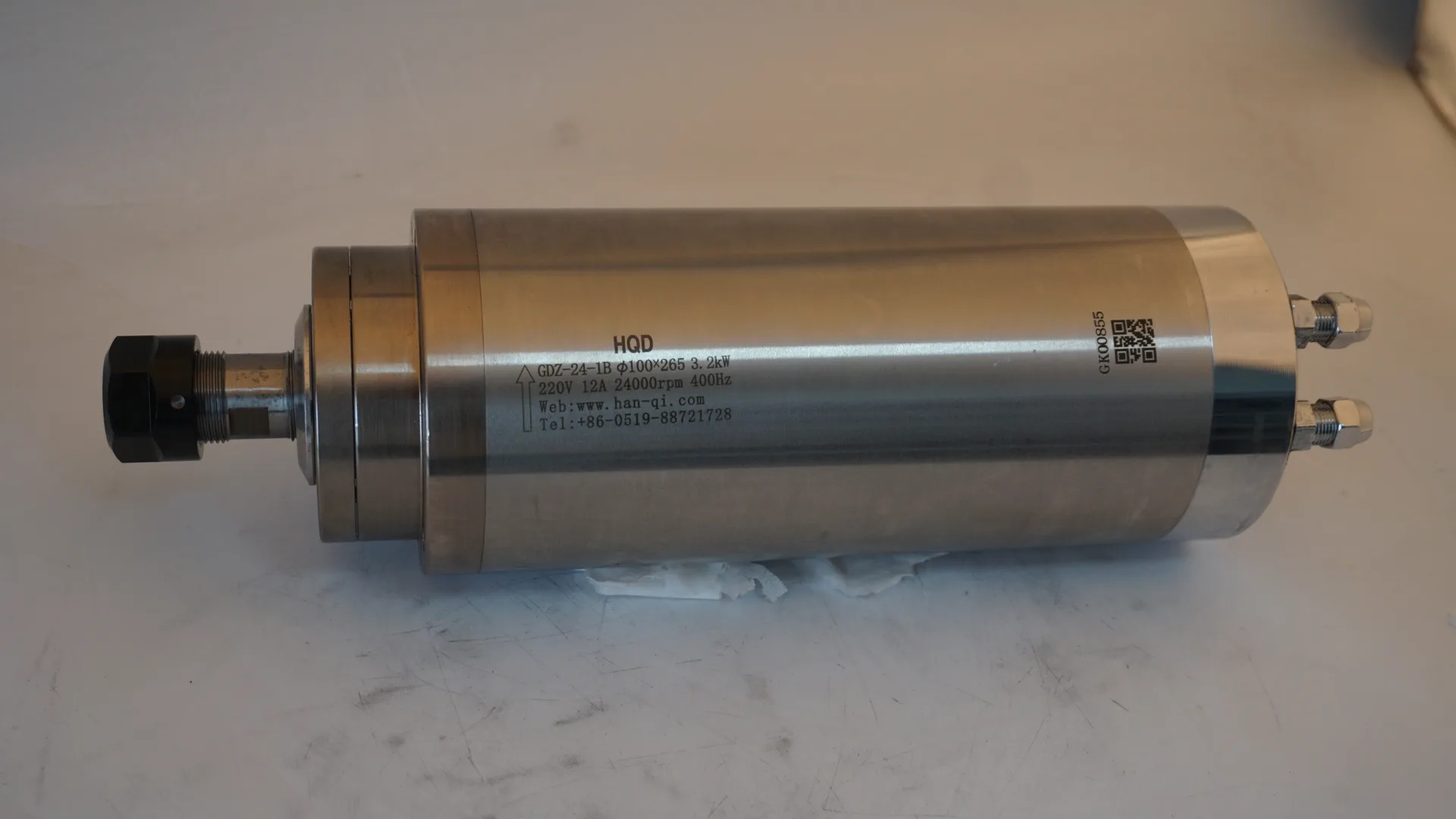

前程风冷主轴 GDZ-24-1B 3.2kw 220V
HQD GDZ-24-1B 220V Advertising Woodworking Spindle
- 品牌
- 前程风冷主轴
- 英文名称
- HQD GDZ-24-1B 220V Advertising Woodworking Spindle
- 库存
- 现货/订货
| Power | 3.2kw |
|---|---|
| Voltage | 220V |
| Current | 12A/7A |
| Frequency | 400Hz |
| Rotational speed | 24000rpm |

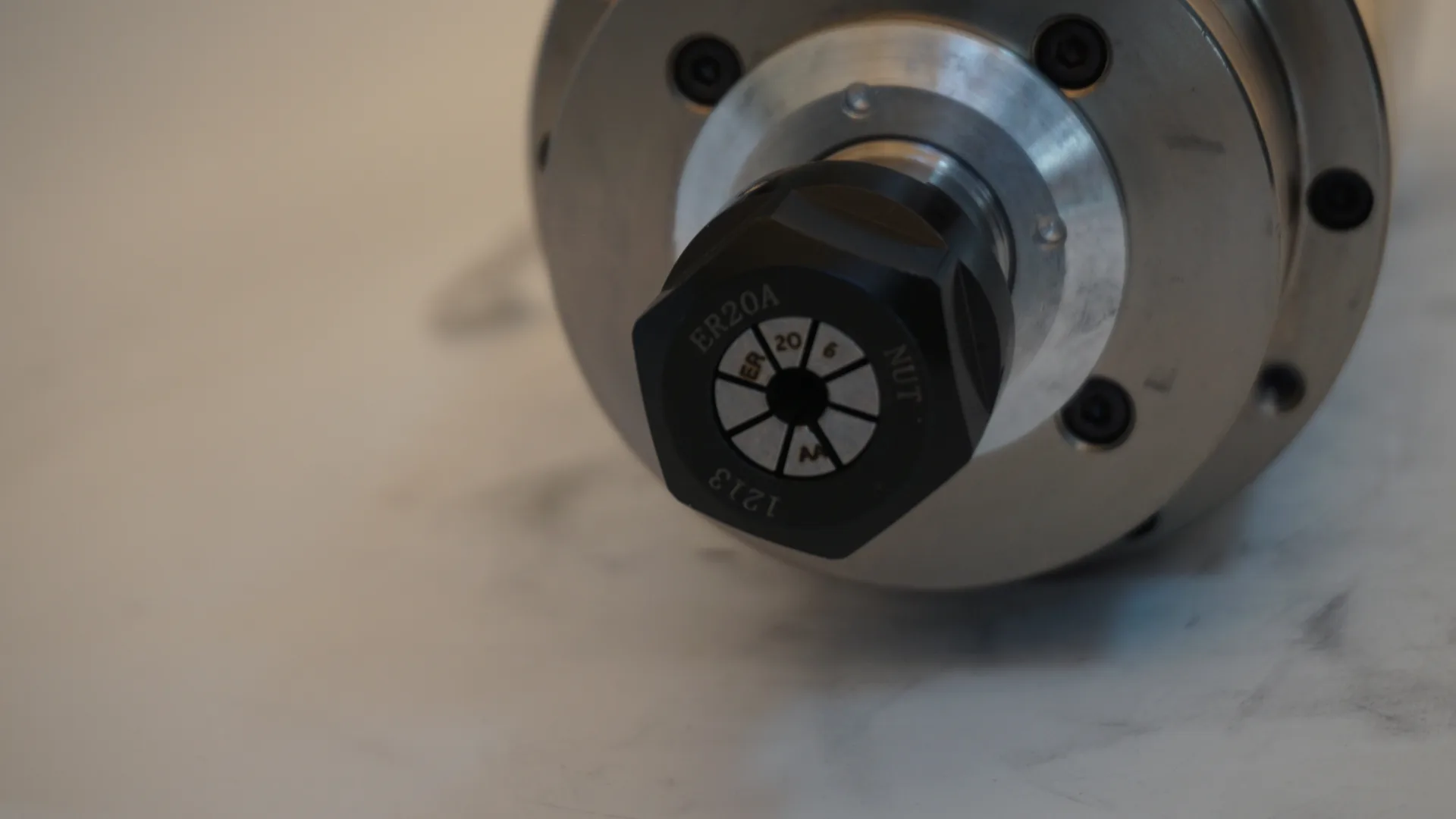

| Tool Holder | ER20 |
| Number of pole | 2P |
| Weight | 11.5KG |
The HQD GDZ-24-1B is a 3.2 kW water-cooled spindle designed for heavy-duty woodworking, stone processing, and large-scale material machining. It operates at up to 24,000 rpm with a constant torque of 1.27 Nm and is available in 220V and 380V versions. Equipped with an ER20 collet, it accepts tool shanks from 3.175 mm to 13 mm. The water-cooling system supports S1 continuous-duty operation, making it suitable for long production cycles in demanding engraving and milling environments.
产品详情
下面是该产品的详细图片与说明，需要报价、库存或配套方案可以直接 WhatsApp 咨询。
The HQD GDZ-24-1B is a 3.2 kW water-cooled spindle designed for heavy-duty woodworking, stone processing, and large-scale material machining. It operates at up to 24,000 rpm with a constant torque of 1.27 Nm and is available in 220V and 380V versions. Equipped with an ER20 collet, it accepts tool shanks from 3.175 mm to 13 mm. The water-cooling system supports S1 continuous-duty operation, making it suitable for long production cycles in demanding engraving and milling environments.
