前程HQD4.5KW 220v 380v 风冷主轴
HQD GDF60-18Z/4.5 4.5KW Air-Cooled Spindle Motor – 18000RPM ER32 for CNC Router
- 品牌
- HQD
- 英文名称
- HQD GDF60-18Z/4.5 4.5KW Air-Cooled Spindle Motor – 18000RPM ER32 for CNC Router
- 库存
- 现货/订货
| Model | GDF60-18Z/4.5 |
|---|---|
| Voltage | 220V |
| Power | 4.5 KW |
| Current | 15.0 A |
| Frequency | 300 Hz |
| Speed | 18000 RPM |
| Collet | ER25 |
| Cooling Method | Air Cooled |
| Bearing Lubrication | Grease |
| High-Precision Angular Contact Ball Bearings | 2×7007C P4 / 2×7002C P4 |
| Rotation Direction | Counterclockwise (viewed from shaft end) |
| Weight | 12 KG |
| Voltage (2) | 380V |
| Current (2) | 9.0 A |

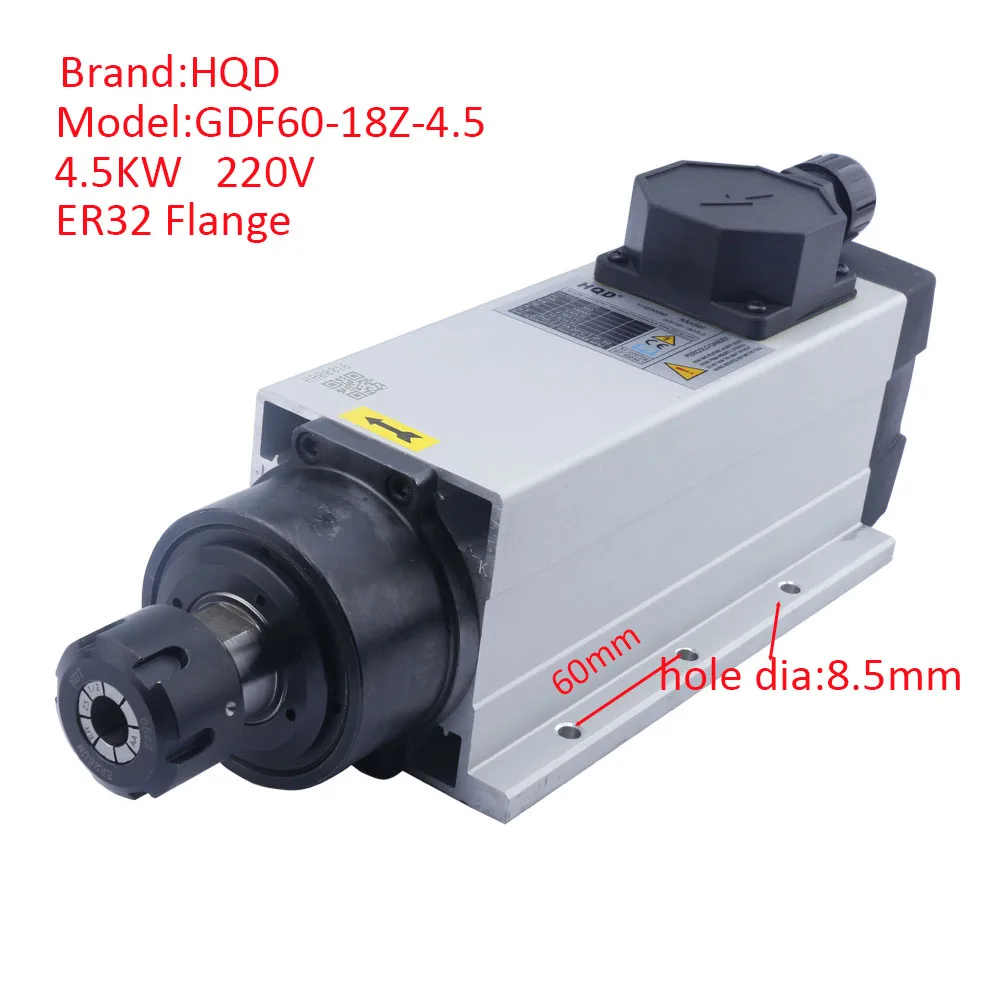

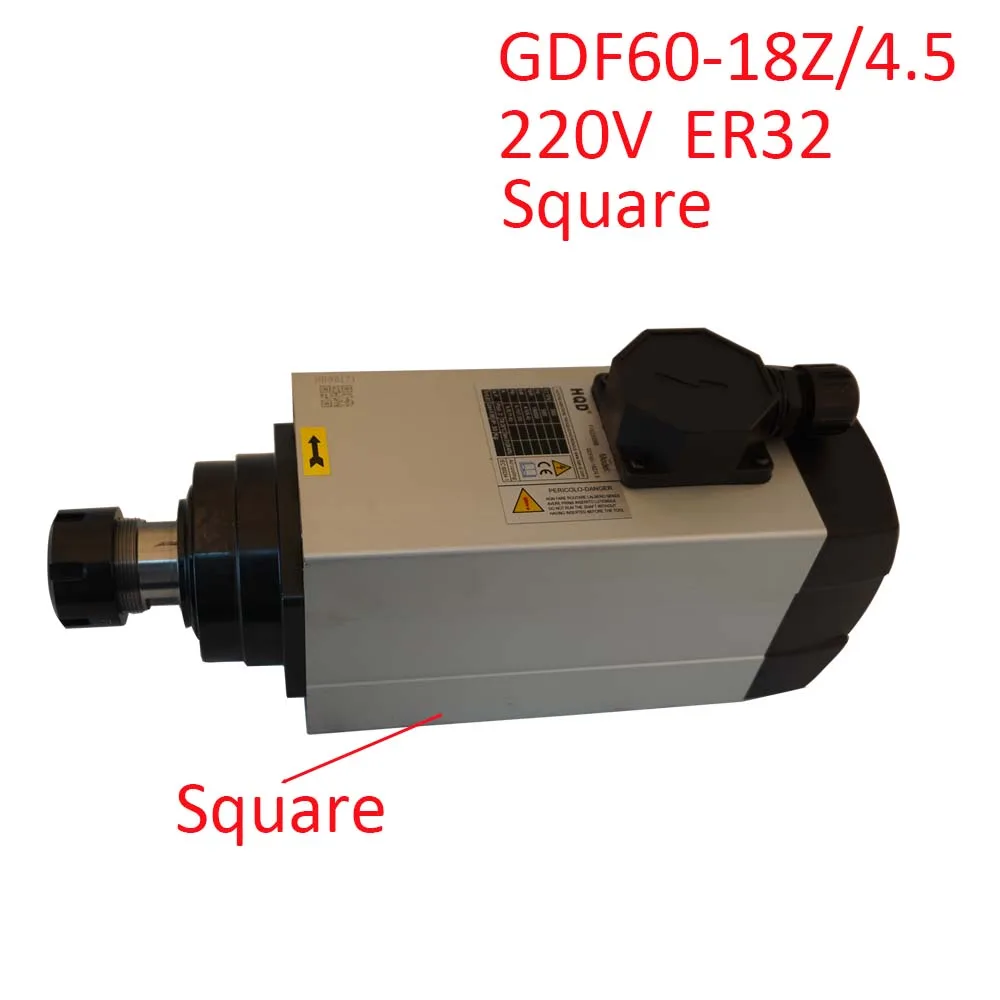

HQD GDF60-18Z/4.5 Air-Cooled Spindle Motor
产品详情
下面是该产品的详细图片与说明，需要报价、库存或配套方案可以直接 WhatsApp 咨询。
HQD GDF60-18Z/4.5 Air-Cooled Spindle Motor HQD GDF60-18Z/4.5 is a 4.5KW air-cooled spindle motor designed for CNC router, woodworking engraving, and milling machines. It runs at 18000 RPM with a frequency of 300Hz, delivering stable high-speed performance for cutting, drilling, and engraving applications. The spindle features an ER25 collet, grease-lubricated bearings, and high-precision angular contact ball bearings (2×7007C P4 / 2×7002C P4), ensuring low vibration, high accuracy, and long service life. Air-cooled design eliminates the need for a water cooling system, making it easier to maintain and suitable for dusty working environments. Available in both 220V (15.0A) and 380V (9.0A) versions. Ideal for woodworking CNC routers, advertising engraving machines, and general non-metal milling equipment. Wholesale and bulk orders supported — MOQ flexible
