对刀仪 JS-66SR CNC Tool Setter
Tool Setting Gauge 2.5N Trigger Force for CNC Router Milling Machine
- 品牌
- 对刀仪
- 英文名称
- Tool Setting Gauge 2.5N Trigger Force for CNC Router Milling Machine
- 库存
- 现货/订货
| Parameter | Specification |
|---|---|
| Model Number | JS-66SR |
| Output Mode | NC (Normally Closed) |
| Tool Setting Accuracy | 0.01mm |
| Trigger Force | 2.5N |
| Mechanical Life | 3,000,000+ trigger cycles |
| Power Supply | DC 24V (CNC system compatible) |
| Standard Cable Length | 5 meters (customizable) |
| Cable Type | Metal corrugated armored hose + internal signal wire |
| Wire Configuration | 4 wires: Red (+24V), Black (GND/Common), Yellow (Signal), Cyan (Shield/Ground) |
| Top Contact Material | Wear-resistant metal |
| Housing Material | Aviation-grade aluminum alloy (gold + silver + orange) |
| Base Type | Flange mounting base with 2 fixing holes |
| Contact Diameter | 20mm |
| Protection Level | Dustproof, oil-resistant, cutting fluid resistant |
| Signal Delay | ≤2ms (standard), ≤0.1ms (high-speed skip port) |
| Working Temperature | -10°C ~ 60°C |
| Applicable Machines | CNC engraving machine, woodworking router, jade carving machine, milling machine, drilling machine |
| Compatible Systems | FANUC, Siemens, Mitsubishi, Syntec, Weihong, Huazhongcnc, etc. |

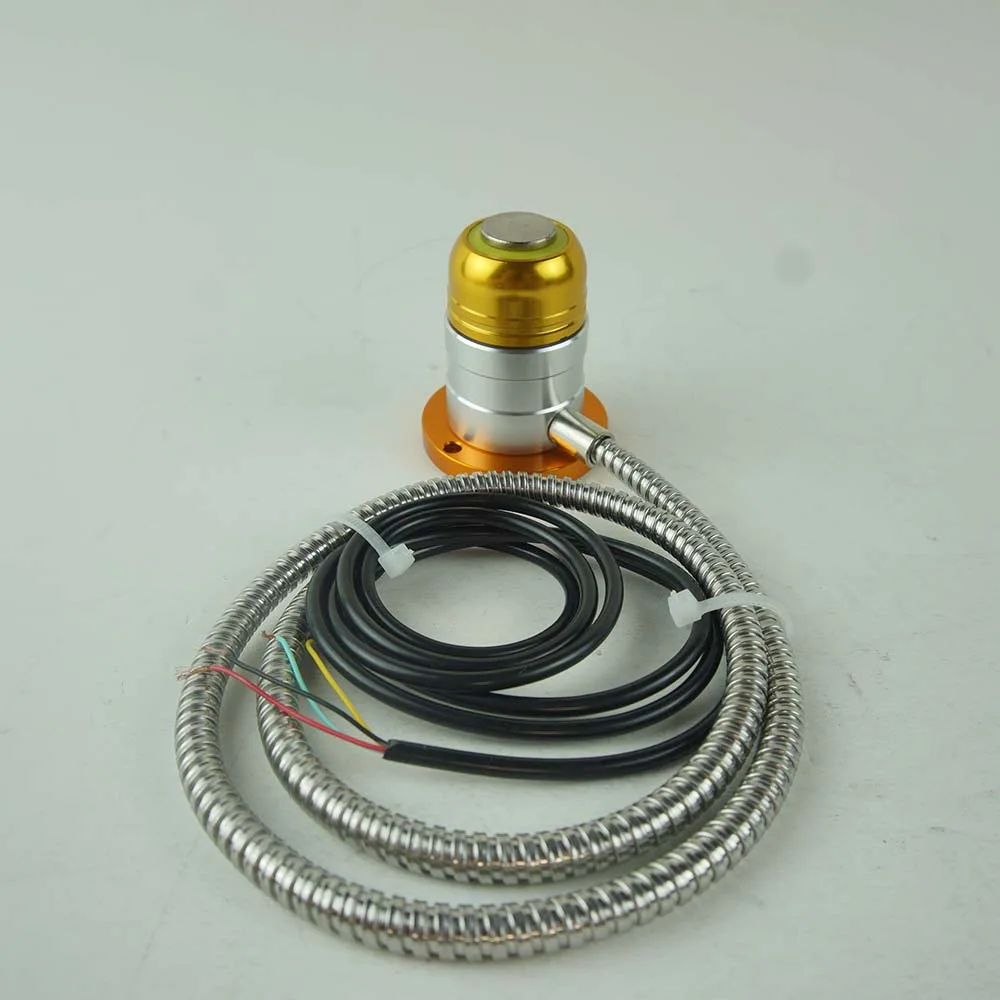

The JS-66SR is a 4-wire NC (Normally Closed) automatic tool setting sensor professionally designed for CNC engraving machines, high-precision machining centers, woodworking cutting machines, and jade processing equipment. It requires no built-in amplifier and transmits signals directly to your CNC system without drift caused by position offset, temperature fluctuations, or unstable power supply.
产品详情
下面是该产品的详细图片与说明，需要报价、库存或配套方案可以直接 WhatsApp 咨询。
The JS-66SR is a 4-wire NC (Normally Closed) automatic tool setting sensor professionally designed for CNC engraving machines, high-precision machining centers, woodworking cutting machines, and jade processing equipment. It requires no built-in amplifier and transmits signals directly to your CNC system without drift caused by position offset, temperature fluctuations, or unstable power supply. FAQ Q1: Is this tool setter compatible with my CNC machine? A: The JS-66SR is compatible with 99% of CNC engraving machines, routers, and machining centers that support DC 24V tool setting signal input, including FANUC, Mitsubishi, Siemens, Syntec, Weihong, and Huazhongcnc systems. Q2: What is the difference between NC and NO? A: NC (Normally Closed) means the circuit is closed when the tool setter is not triggered. If the cable breaks, the system immediately detects an open circuit and triggers an alarm - this is the safer industrial standard. NO (Normally Open) cannot detect cable breaks, which may lead to undetected tool collision. Q3: Can I customize the cable length? A: Yes, we support custom cable lengths from 2m to 20m. Please contact our sales team for custom orders. Q4: How do I set up the tool setting macro program? A: We provide detailed macro program templates for major CNC systems (FANUC, Syntec, Weihong, etc.) with every purchase. Contact us after ordering and we will send you the complete setup guide. Q5: What is the warranty period? A: We offer a 12-month warranty against manufacturing defects. Lifetime technical support is provided for all our products. Application Scenarios •Woodworking CNC Router - Tool length measurement and breakage detection for wood engraving, cutting, and drilling •Jade Engraving Machine - High-precision tool setting for delicate jade and stone carving •Metal Engraving Machine - Accurate Z-axis zero setting for metal milling and engraving •PCB Drilling Machine - Fast tool length calibration for printed circuit board drilling •Advertising CNC Router - Quick tool change and setup for acrylic, PVC, and foam cutting •Small CNC Machining Center - Automatic tool measurement in small to medium machining centers
