VRSF-5C-750-LMS和86BHH76-400B-35J
CNC Router Transmission Kit: NIDEC VRSF-5C-750-LMS, 86BHH76-400B-35J Motor, 1.25M 30T Gear (ID 20mm, H 45/55mm) for 1325/2030
- 品牌
- 传动套装
- 英文名称
- CNC Router Transmission Kit: NIDEC VRSF-5C-750-LMS, 86BHH76-400B-35J Motor, 1.25M 30T Gear (ID 20mm, H 45/55mm) for 1325/2030
- 库存
- 现货/订货
| Parameter | Specification |
|---|---|
| Product Name | CNC Transmission Assembly Kit (Gearbox + Motor + Gear + Plate) |
| Gearbox Brand | NIDEC |

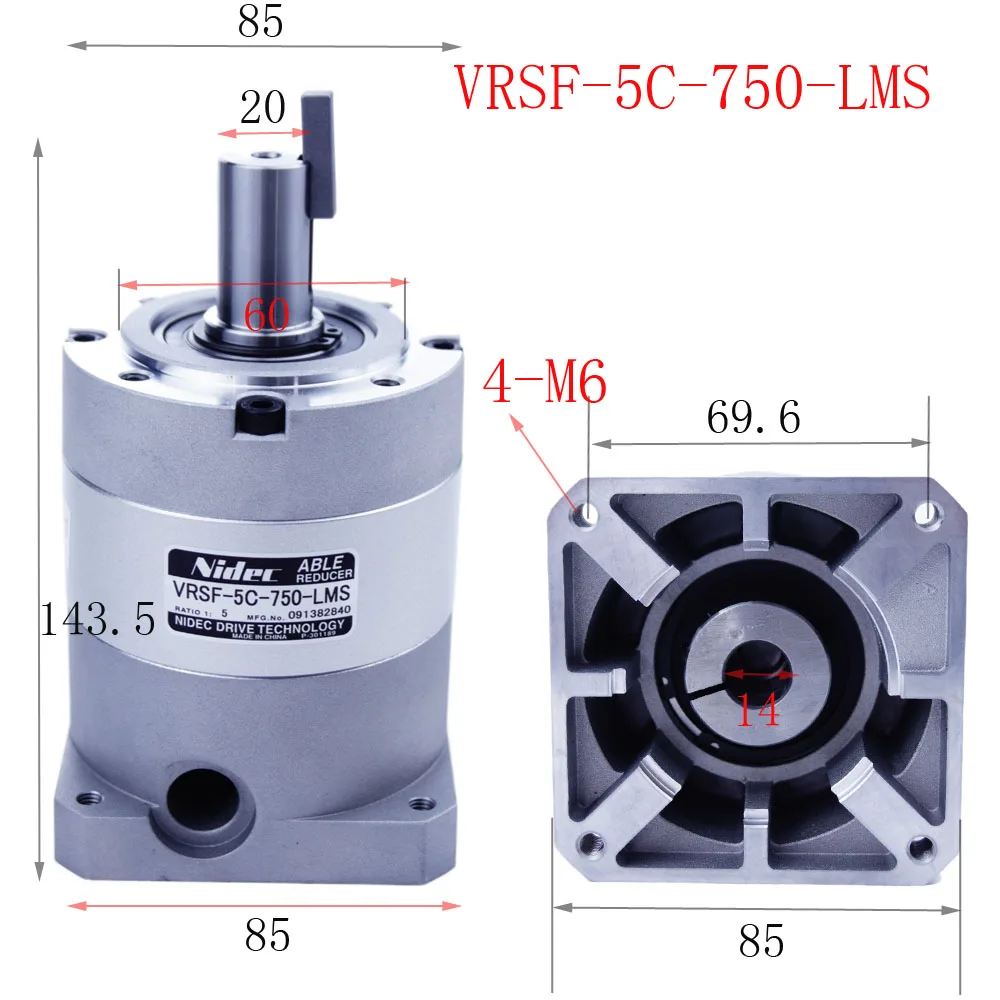

| Gearbox Model | VRSF-5C-750-LMS |

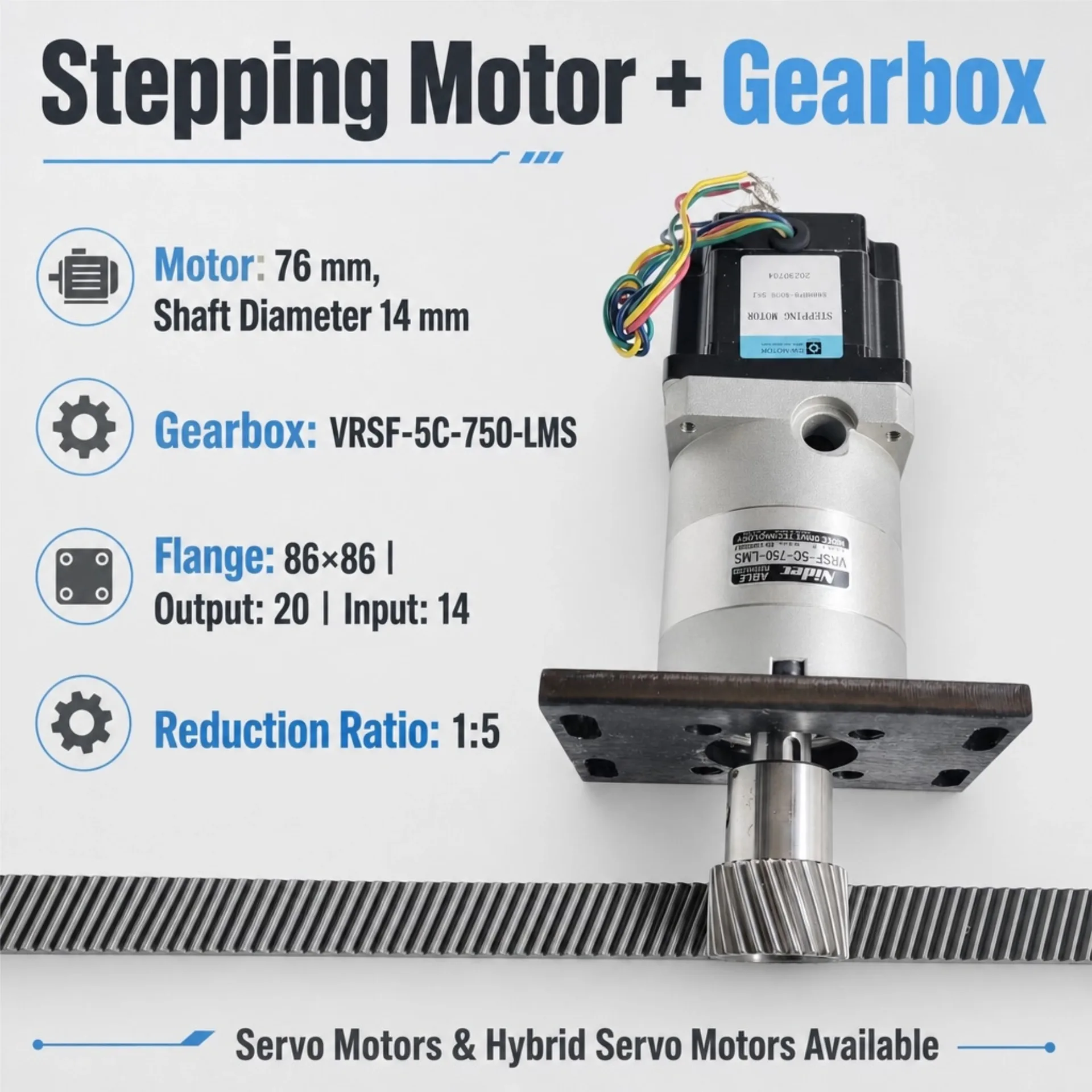

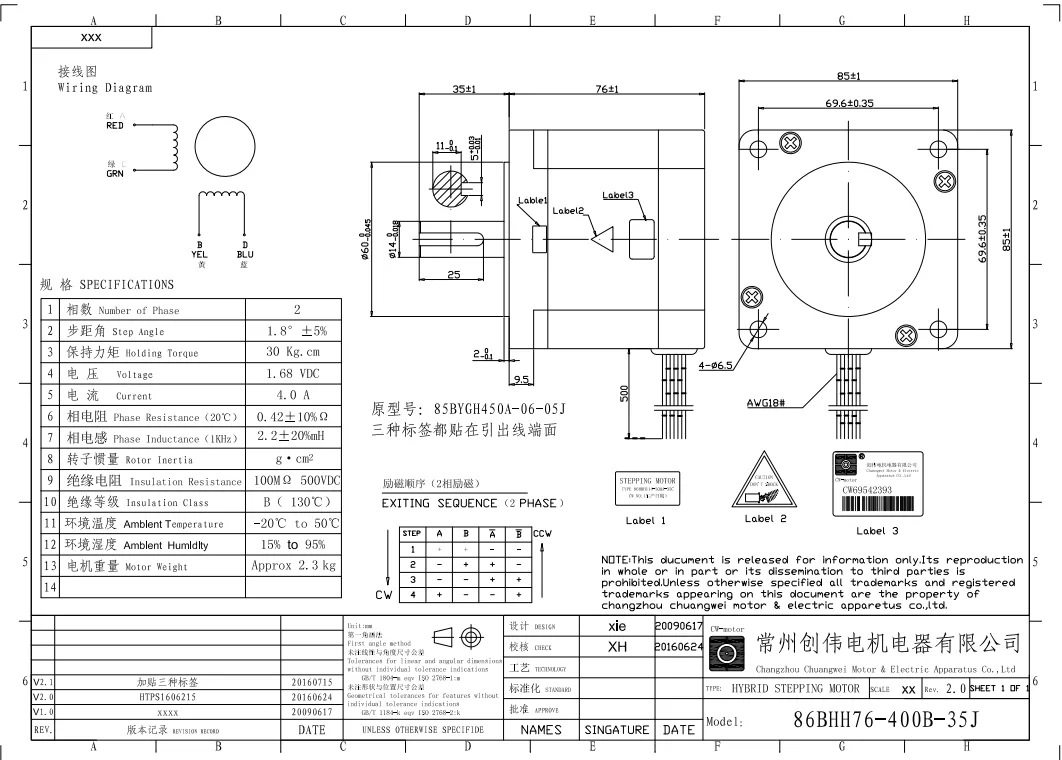

| Motor Model | 86BHH76-400B-35J |

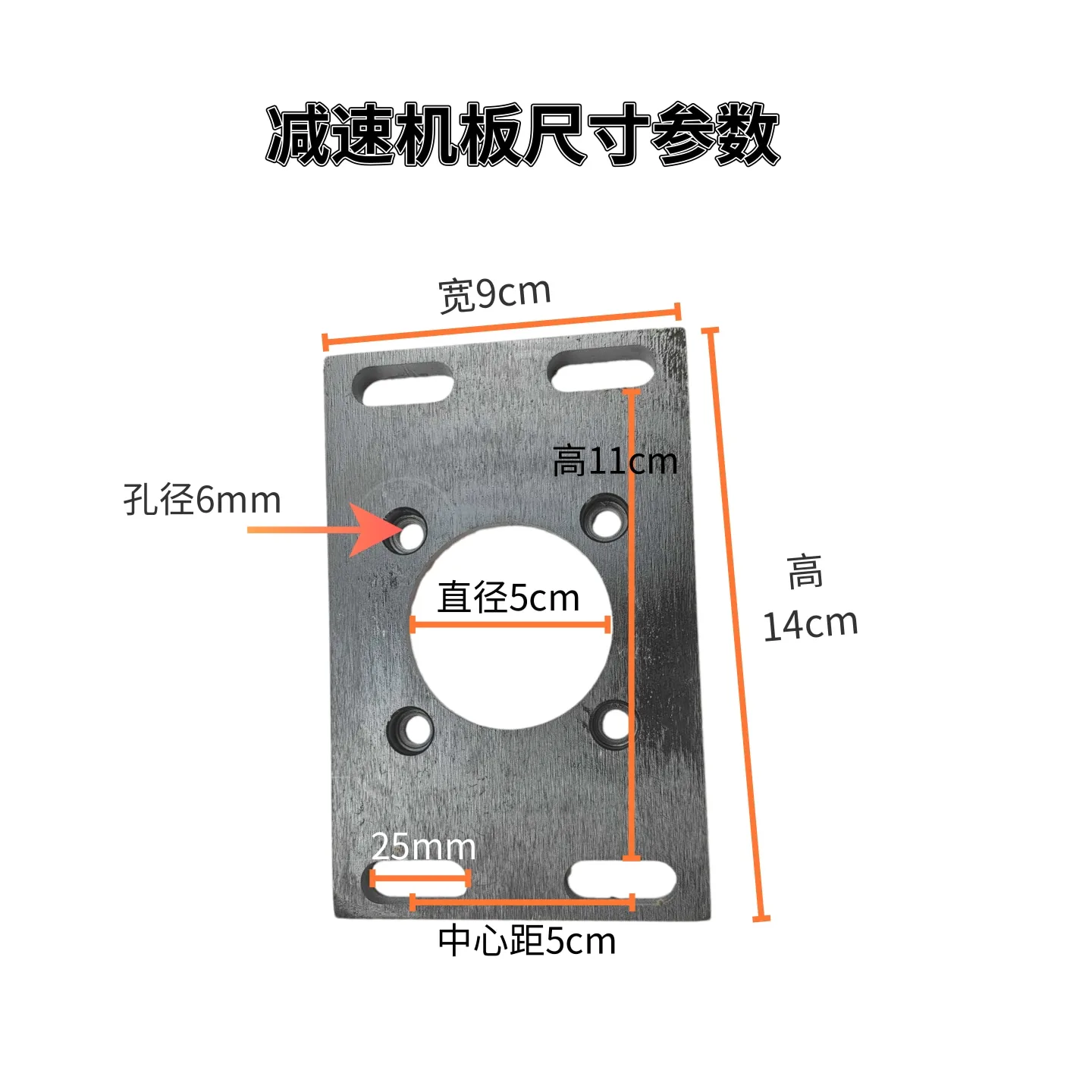

| Included Components | 1x Gearbox, 1x Motor, 1x Gearbox Plate, 1x Gear |

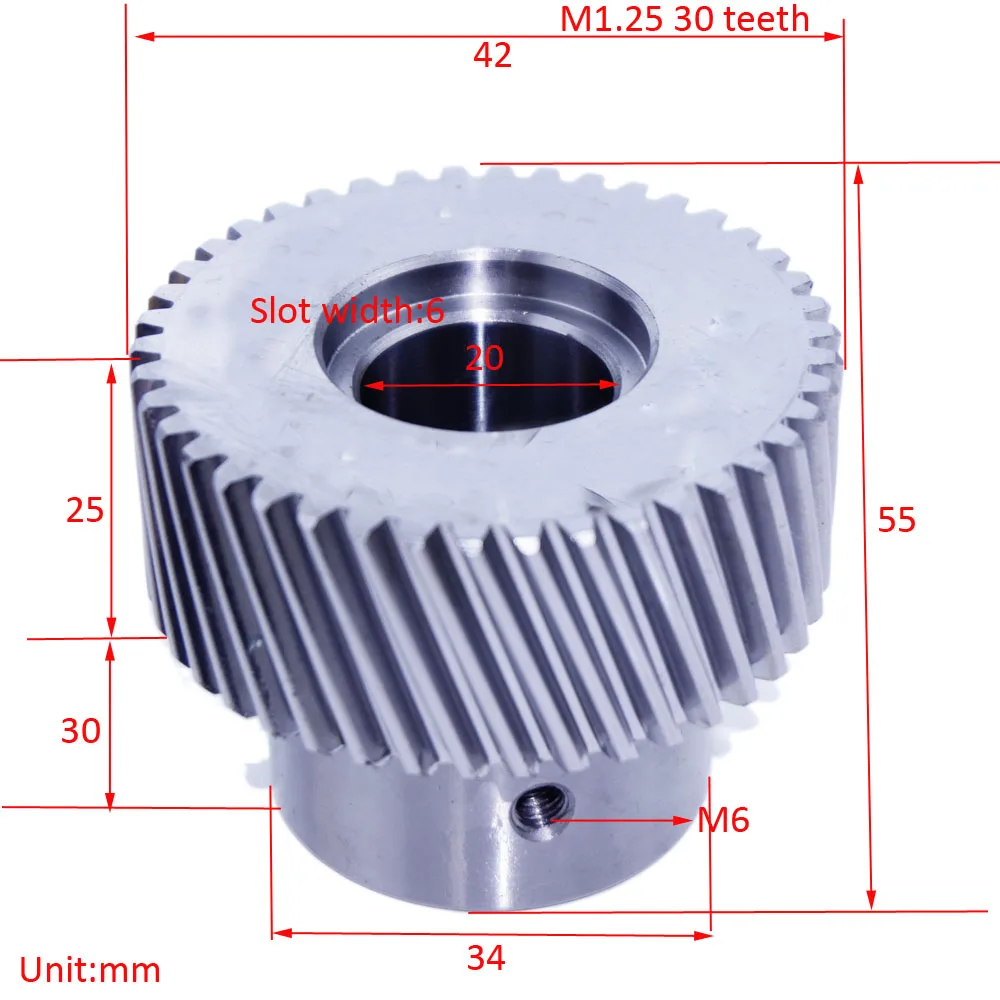

| Gear Specifications | 1.25M Module - 30 Teeth - Inner Diameter 20mm - Height 45mm or 55mm (Optional) |
| Transmission Type | Gearbox + Gear Drive |
| Compatibility | 1325, 2030 3-Axis Woodworking CNC Routers |
| Packaging | Sold as a Complete Kit |
| Note | This kit uses the 86BHH76-400B-35J motor |

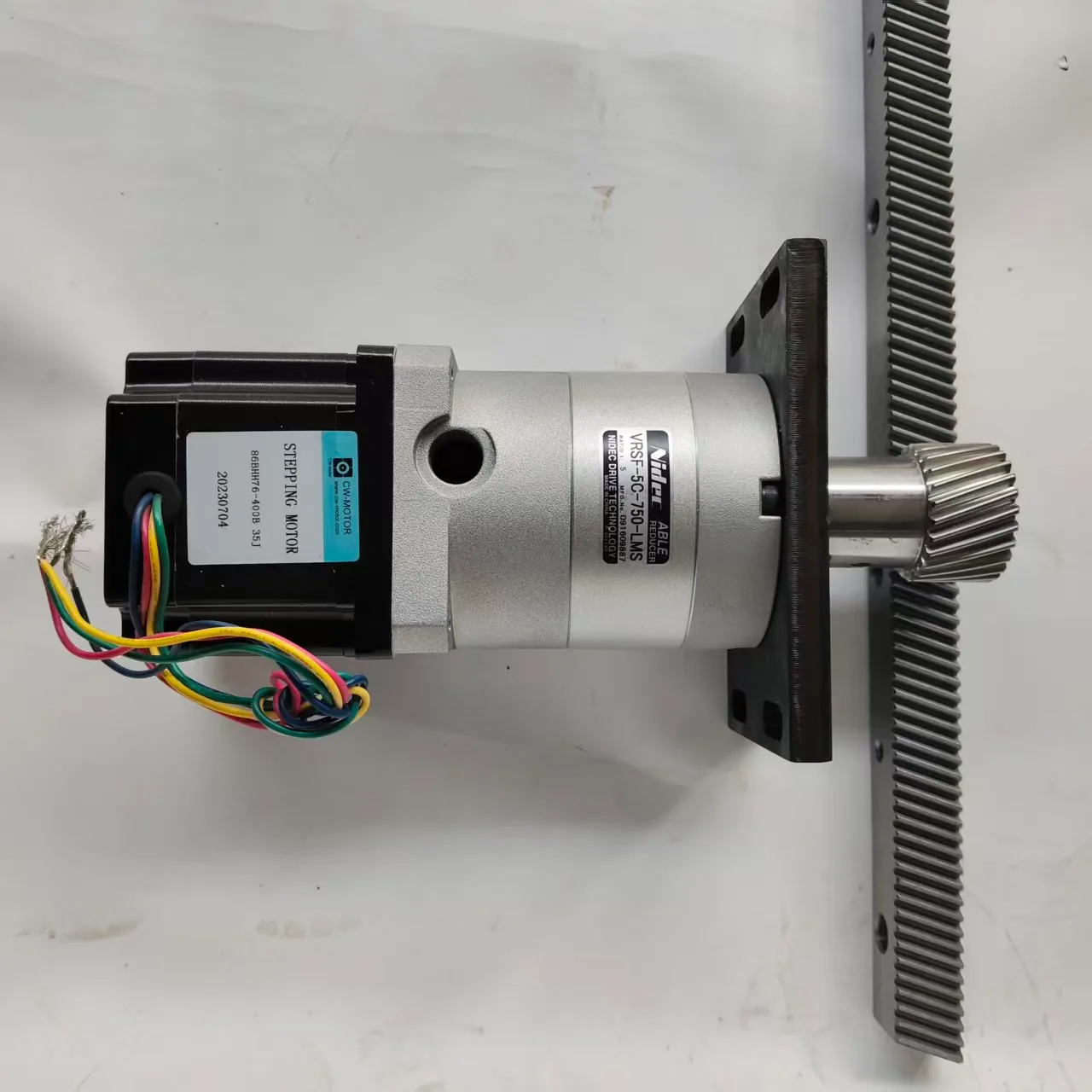

This complete transmission kit is designed for 3-axis CNC woodworking machines (Models 1325 and 2030). It includes a NIDEC VRSF-5C-750-LMS gearbox, an 86BHH76-400B-35J motor, a gearbox mounting plate, and a 1.25M-30T gear (inner diameter 20mm, height 45mm or 55mm). All components are matched and tested for perfect compatibility, ensuring smooth power transmission and reliable performance. Ideal for CNC router manufacturers and repair services.
产品详情
下面是该产品的详细图片与说明，需要报价、库存或配套方案可以直接 WhatsApp 咨询。
This complete transmission kit is designed for 3-axis CNC woodworking machines (Models 1325 and 2030). It includes a NIDEC VRSF-5C-750-LMS gearbox, an 86BHH76-400B-35J motor, a gearbox mounting plate, and a 1.25M-30T gear (inner diameter 20mm, height 45mm or 55mm). All components are matched and tested for perfect compatibility, ensuring smooth power transmission and reliable performance. Ideal for CNC router manufacturers and repair services. Application 3-Axis CNC Woodworking Machine (Models 1325, 2030)
